Description
- Model Number: FM265A
- Series: KePlast i-series (i1000, i2000)
- Digital Inputs: 16 Channels (24V DC)
- Digital Outputs: 16 Channels (24V DC, Transistor)
- Current Per Output: 0.5A (High-side switching)
- Bus Interface: Keba Internal K-Bus
- Protection Class: IP20
- Country of Origin: Austria
- Weight: 0.77 lbs (0.35 kg)

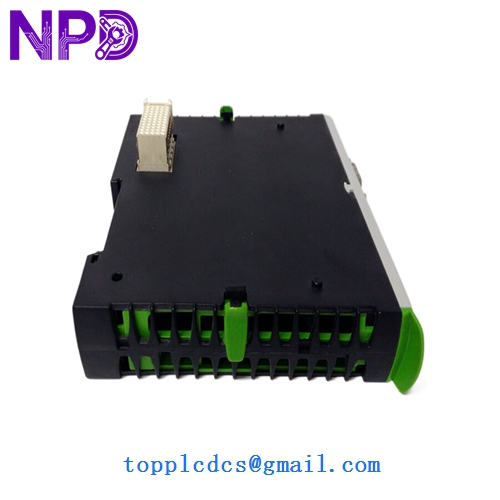

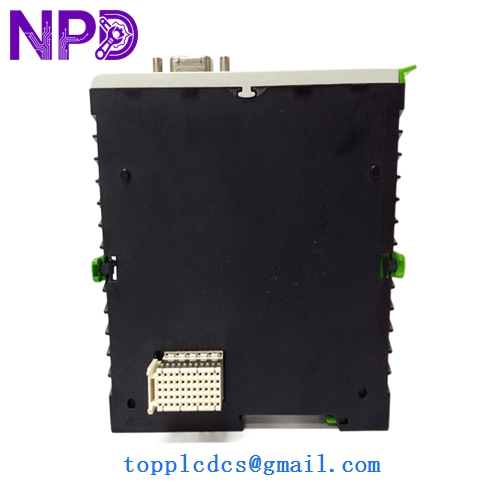

KEBA FM265A
KEBA FM265A
- Dimensions: 4.72 in x 1.77 in x 3.94 in (12.0 cm x 4.5 cm x 10.0 cm) The KEBA FM265A is a high-density digital expansion module specifically designed for the KePlast series of injection molding machine controllers. It provides a balanced configuration of 16 digital inputs and 16 digital outputs in a single compact housing, facilitating the precise control of valves, actuators, and sensor feedback loops. Built for high-speed industrial processing, this module integrates seamlessly with KeControl CPUs via the K-Bus interface, offering rapid signal response times and robust electrical protection essential for the demanding cycles of plastic processing machinery.
Model Comparison
The FM265A is distinguished from the FM260 by its specific I/O density; the FM265A provides an equal 16/16 split, whereas other variants may offer only inputs or only outputs. Compared to the FM265/B or newer CP series modules, the “A” version is optimized for the standard KePlast i1000 hardware architecture, featuring a different terminal block arrangement that simplifies wiring for machine builders. While newer modules might support EtherCAT directly, the FM265A is a dedicated K-Bus module, making it a critical spare part for existing KeControl-based systems that rely on local backplane communication.
Operation Tips
- Terminal Connection: Utilize the detachable front connectors for wiring to simplify module replacement without disconnecting individual field wires.
- Output Loading: Ensure the combined current of all 16 outputs does not exceed the total thermal limit of the module; while each output handles 0.5A, simultaneous high-load operation requires adequate cabinet ventilation.
- K-Bus Alignment: When adding the FM265A to a DIN rail, ensure the side-mounted K-Bus connectors are perfectly aligned before sliding the modules together to prevent pin damage.
- Status Monitoring: Use the front-panel LEDs for quick troubleshooting; input LEDs reflect the physical state of limit switches, while output LEDs indicate the command state from the PLC logic.
