1. Product Description

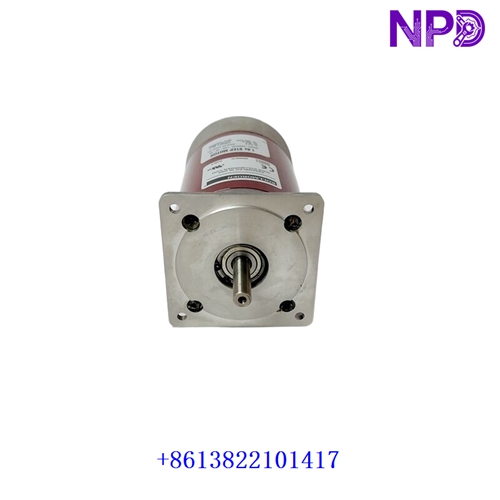

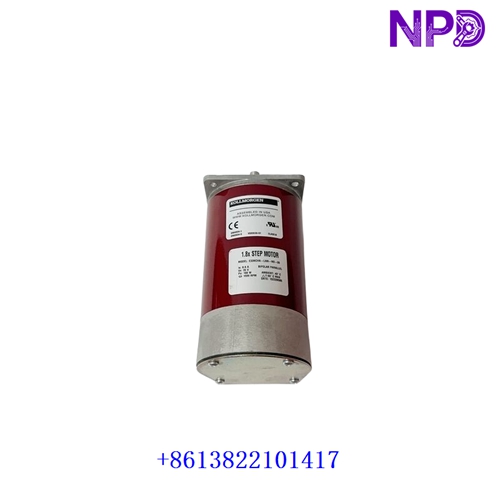

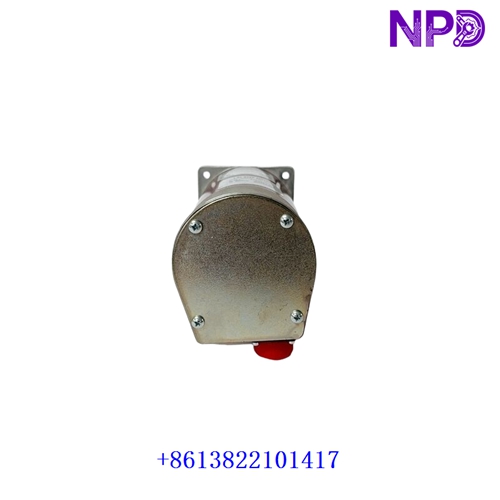

⚙️ The Kollmorgen E33NCHA-LNN-NS-00 is an E-Series hybrid stepper motor designed for industrial motion control and precision positioning applications. It features a NEMA 34 frame and a three-stack rotor configuration, making it suitable for equipment requiring high holding torque and repeatable positioning.
🔧 Typical applications include CNC machinery, packaging equipment, labeling systems, and automated production machinery. The NS designation indicates no feedback option, while the 00 suffix identifies the standard configuration without a shaft seal. Confirm the motor winding, connector, shaft configuration, and compatible drive before installation.
E33NCHA-LNN-NS-00
2. Product Parameters
📋 Brand: Kollmorgen
Model: E33NCHA-LNN-NS-00
Series: E-Series Hybrid Stepper Motors
Product Name: Hybrid Stepper Motor
Motor Type: Two-phase hybrid stepper motor
Frame Size: NEMA 34
Frame Dimensions: Approximately 86 × 86 mm
Step Angle: 1.8°
Rotor Configuration: Three-stack
Winding Configuration: 4-lead parallel
Feedback: No feedback (NS configuration)
Shaft: Standard smooth shaft; verify exact mechanical configuration
Holding Torque: Approximately 6.64 N·m; confirm against the applicable motor datasheet
Dimensions: Verify overall length and mounting drawing
Weight: Approximately 2.5–3.5 kg; verify actual unit
Place of Manufacture: To be confirmed
Country of Origin: Verify from product nameplate
Power Requirements: Depends on the matched stepper drive and winding configuration
Product Status: Verify actual inventory condition
Discontinued: Confirm with Kollmorgen
3. Recommended Kollmorgen Models
🔩 1. Kollmorgen E33NCHA-LNN-NS-00 — Standard E-Series stepper motor.
2. Kollmorgen E33NCHA-LNN-NS-01 — Related configuration; verify availability.
3. Kollmorgen E33NCHA-LNN-M2-00 — Encoder-provision variant; verify exact model.
4. Kollmorgen E33NCHA-LNN-PD-00 — Feedback-option variant; verify configuration.
5. Kollmorgen E33NCHA-LNN-PF-00 — Feedback-option variant; verify configuration.
6. Kollmorgen E33NCHA-LNN-NS-00-2 — Listed ordering variant; confirm complete part number.
7. Kollmorgen E34NCHA series — Related E-Series motor family.
8. Kollmorgen E32NCHA series — Related E-Series motor family.
9. Kollmorgen N-series NEMA 34 stepper motors — Standard stepper motor family.
10. Kollmorgen K-series NEMA 34 stepper motors — Enhanced stepper motor family.
11. Kollmorgen P5000 — Stepper motor drive family.
12. Kollmorgen P7000 — Stepper motor drive family.
13. Kollmorgen AKD series — Servo drive family.
14. Kollmorgen AKM series — Servo motor family.
15. Kollmorgen S700 series — Servo drive family.
⚠️ These are related product families and configuration examples, not guaranteed direct replacements. Verify the full model code, winding current, drive compatibility, shaft dimensions, and mounting requirements before ordering.
