Description
📋 Product Description

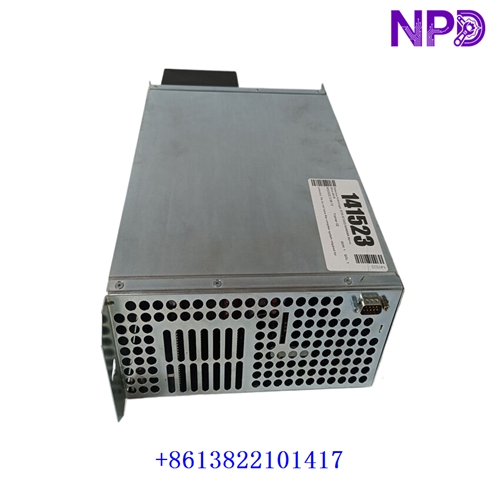

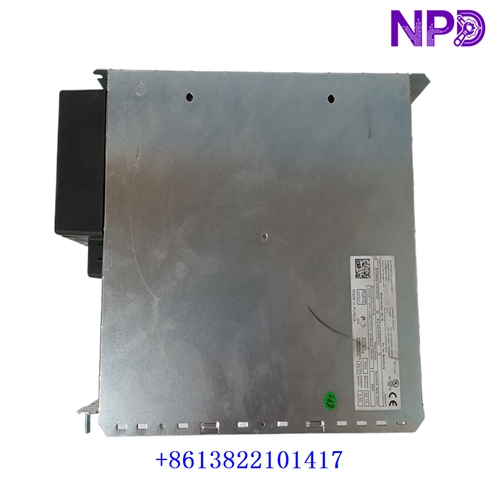

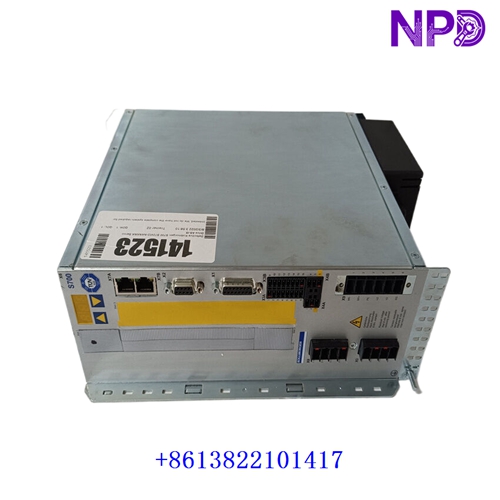

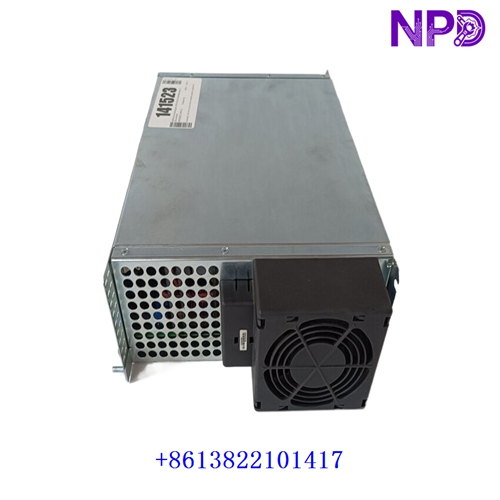

The Kollmorgen S72402-NANANA is a digital servo amplifier in the S700 series, designed for precise motion control in industrial automation, packaging machinery, robotics, and machine tools. It supports position, velocity, and torque control for compatible servo motors. The standard configuration includes a three-phase AC power input, integrated EtherCAT and CANopen communication, a built-in braking resistor, and dual-channel Safe Torque Off (STO). It supports multiple motor feedback technologies, depending on the selected interface and motor configuration. Before replacement, verify the motor ratings, feedback device, control interface, mains supply, and safety circuit requirements.
S72402-NANANA
⚙️ Product Parameters & Datasheet
- Brand: Kollmorgen
- Model: S72402-NANANA
- Series: S700
- Product Name: Digital Servo Amplifier / Servo Drive
- Place of Manufacture: Verify from the unit nameplate
- Product Status: New Surplus / New – Open Box / Pre-Owned; confirm actual inventory condition
- Dimensions: Confirm from the official mechanical drawing for the exact hardware revision
- Weight: Confirm from the actual unit or manufacturer documentation
- Country of Origin: Verify from the product label
- Main Supply: Three-phase 208–480 V AC, 50/60 Hz, nominal range
- Rated Output Current: 24 A RMS
- Peak Output Current: Up to 48 A, subject to operating duration and conditions
- Rated Input Power: Approximately 18 kVA
- Built-in Braking Resistor: Standard configuration
- Communication Interfaces: EtherCAT and CANopen; RS-232 and pulse-direction interface also supported
- Control Modes: Position, velocity, and torque
- Feedback Compatibility: Depends on the selected feedback interface; supported types include resolver and encoder systems
- Safety Function: Dual-channel Safe Torque Off (STO); verify the applicable safety documentation
- Discontinued: Current lifecycle status requires confirmation with Kollmorgen
🔧 Recommended Kollmorgen Models
- S70102-NANANA — S700 servo amplifier with a lower current rating.
- S70302-NANANA — S700 servo amplifier for lower-current applications.
- S70602-NANANA — S700 servo amplifier in a lower power class.
- S71202-NANANA — S700 servo amplifier with a 12 A current class.
- S7120S-NANANA — Related S700 servo amplifier variant; verify ratings.
- S7240S-NANANA — Related S700 servo amplifier; confirm its specific configuration.
- S72402-NAF2NA — S72402 variant with an option configured in slot 2.
- S72402-NANAF2 — S72402 variant with an option configured in slot 3.
- S70102-NAF2NA — S70102 option variant; confirm interface requirements.
- S70302-NAF2NA — S70302 option variant for compatible applications.
- S70602-NAF2NA — S70602 option variant; verify hardware configuration.
- S71202-NAF2NA — S71202 option variant for compatible installations.
- S7120S-NAF2NA — S7120S option variant; confirm exact configuration.
- S72402-NANANA-NA-030 — Verify the complete ordering code and options before considering.
- AKD-P00607 — Kollmorgen AKD servo drive family candidate; check voltage, current, and control-system compatibility.
The recommended models include related S700 variants and other Kollmorgen servo-drive options; they are not all direct replacements. Confirm the complete order code, motor current, feedback type, fieldbus, option-card configuration, and safety requirements before ordering.
