Description

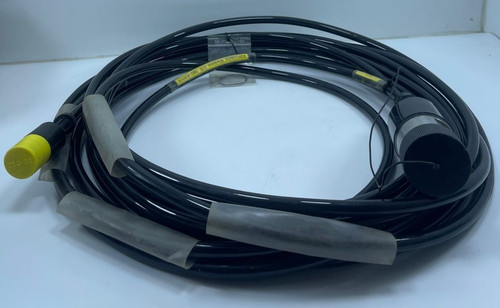

The Kongsberg Test Cable (Part Numbers: 380-103221, 2725594-17, 1758312) is a precision-engineered diagnostic and maintenance tool specifically designed for the Kongsberg ACS 433 and ACS 413 series of Actuator Control Systems. This cable acts as a physical bridge between the ACS control hardware and an external diagnostic terminal or test interface, allowing technicians to perform on-site configuration, performance verification, and troubleshooting of actuator positioning logic without needing to dismantle the primary cabinet wiring.
Key Technical Specifications
- Application: Dedicated diagnostic interface cable for ACS 400-series control platforms.
- Compatibility: Fully compatible with ACS 433 and ACS 413 actuator control units.
- Functionality: Facilitates serial or diagnostic data communication, allowing real-time monitoring of actuator status, position feedback, and internal diagnostic flags.
- Construction: Industrial-grade cabling with reinforced shielding to minimize electromagnetic interference (EMI) in high-vibration engine or machinery rooms.
- Connectors: Precision-fit, keyed connectors designed to prevent misalignment and pin damage during repeated use in demanding field environments.
- Durability: Rated for industrial use, featuring oil-resistant and heat-resistant insulation to withstand the conditions of engine enclosures.
- Pinout Configuration: Wired to match the proprietary diagnostic port pinouts of the ACS system, ensuring safe signal path routing.
- Standardization: Serves as a vital component in the factory-approved test equipment list for Kongsberg marine and power control systems.
Integration and Application
This cable is a “must-have” tool for service engineers and system integrators tasked with commissioning or maintaining Kongsberg-controlled propulsion or generator systems. Typical use cases include:
- Configuration: Uploading or downloading setpoint parameters and calibration data to the ACS controller.
- Live Monitoring: Capturing real-time position data and response times while the actuator is under load.
- Troubleshooting: Identifying internal fault codes or communication bottlenecks by connecting a laptop or specialized diagnostic tool directly to the ACS module.
- Calibration: Adjusting PID parameters to tune actuator response, ensuring smooth, oscillation-free performance.
Related Kongsberg ACS Series Components
To utilize this cable effectively during system maintenance, it is frequently used alongside the following Kongsberg infrastructure:
- ACS 413/433 Actuator Controller: The primary electronic module being tested.
- Diagnostic Software: The PC-based tool used to interpret the data signals routed through this cable.
- Laptop/Diagnostic Terminal: The interface unit where configuration changes are performed.
- Actuator Feedback Modules: Sensors (LVDT/potentiometer) that report the physical position to the ACS.
- Serial-to-USB Adapter: Frequently required to connect the test cable’s legacy serial interface to modern computers.
- Kongsberg Maintenance Manuals: Essential documentation defining the expected signal values during the test phase.
- Dummy Load Resistors: Sometimes required to simulate actuator load during “bench” testing of the ACS board.
- Power Distribution Units: Required to power the ACS controller independently during off-machine testing.
- Spare Fuses/Terminal Blocks: Common maintenance items needed if the test reveals an electrical fault.
- Shielded Patch Cables: Used for interconnecting multiple ACS nodes for network-wide diagnostics.
