Description
Product Introduction
The Kongsberg RAo-8xe Remote Analog Output Module, part number 333505, is a distributed I/O module designed for marine automation systems, including compatible K-Chief installations. Revision C identifies the version specified in this product listing.
The module provides eight analog output channels for converting control-system commands into voltage or current signals. These outputs can be configured for compatible analog signal ranges and scaled to engineering units, allowing the module to interface with instruments and other equipment in a marine automation system.
The RAo-8xe supports remote configuration, self-checking, time stamping, and CAN bus communication. Its design allows installation near the equipment being controlled, helping reduce long analog signal cable runs.
This module is suitable for maintenance and replacement applications when the part number, revision, system configuration, and required output settings match the original installation.

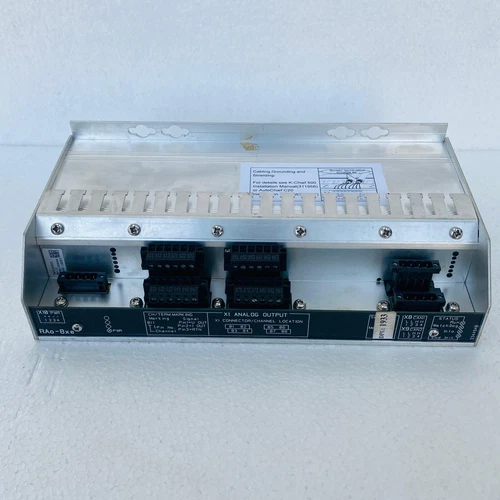

Kongsberg RAo-8xe
Key Features
- Eight Analog Output Channels: Supports multiple analog output signals from a compatible marine automation controller.
- Voltage and Current Outputs: Supports configurable voltage and current ranges, including ±10 V DC and ±20 mA.
- Remote Configuration: Parameters can be configured remotely, without adjustment trimmers or jumpers.
- CAN Bus Communication: Interfaces with compatible host systems over a CAN-based network.
- Built-In Diagnostics: Status indicators support monitoring of power, operation, initialization, and watchdog status.
- Marine Automation Application: Designed for compatible distributed control and monitoring installations.
- Plug-In Connections: Removable connections support installation and maintenance.
Product Datasheet
| Parameter | Description |
|---|---|
| Brand | Kongsberg |
| Model | RAo-8xe |
| Part Number | 333505 |
| Revision | Rev. C, as listed |
| Series | Distributed Processing Units |
| Product Name | Remote Analog Output Module |
| Number of Channels | 8 analog output channels |
| Output Types | Voltage and current |
| Output Ranges | Includes ±10 V DC and ±20 mA; supported ranges depend on configuration |
| Communication | CAN bus / CANopen-based network |
| Power Supply | 24 V DC nominal; published operating range 18–32 V DC |
| Power Consumption | Approximately 8.5 W nominal, 10 W maximum |
| Resolution | 12-bit |
| Operating Temperature | -15°C to +70°C |
| Dimensions | Confirm against the unit and technical drawing |
| Weight | Approximately 1.5 kg |
| Place of Manufacture / Origin | Norway-associated Kongsberg product; confirm the individual unit |
| Product Status | Used; seller states tested and in good condition |
| Country of Origin | Norway, subject to confirmation from the item label |
| Discontinued | Current lifecycle status not verified |
Installation and Compatibility Notes
- Verify that the existing module is an RAo-8xe with part number 333505 and that Revision C is appropriate for the installed system.
- Confirm the required output type, signal range, scaling, and channel assignments before connecting field devices.
- Check the 24 V DC supply, CAN bus wiring, terminal connections, and grounding requirements against the applicable Kongsberg documentation.
- Confirm the host controller and system software support the module and its configuration.
- Isolate power and follow the vessel’s approved maintenance procedures before removing or installing the module.
- After replacement, perform the required configuration checks and functional tests before returning connected equipment to service.
Frequently Asked Questions
Q1: What is the Kongsberg RAo-8xe used for?
It provides eight analog output channels in compatible marine automation systems. Typical uses include supplying control or reference signals to compatible instruments and equipment.
Q2: What is the part number for this module?
The RAo-8xe is identified by Kongsberg part number 333505. Confirm the revision and complete identification label before ordering.
Q3: What output signals does it support?
The module supports configurable voltage and current outputs, including ±10 V DC and ±20 mA. The exact available ranges and scaling depend on the module configuration.
Q4: Is Revision C interchangeable with other revisions?
Interchangeability should not be assumed. Check the system documentation, hardware revision, and configuration requirements before replacing a module with a different revision.
Q5: Can this module be used in a K-Chief system?
The RAo-8xe is listed among the distributed processing components used in Kongsberg K-Chief 600 marine automation systems. Compatibility with a particular installation must still be verified.
Q6: What should I confirm before purchase?
Check the part number, revision, physical condition, terminal layout, available test records, and compatibility with the existing control system.
Recommended Related Kongsberg Models and Components
The following components belong to related Kongsberg marine automation systems. They perform different functions and should not be treated as direct substitutes for the RAo-8xe.
- RAi-16xe (329714) — Remote analog input module for compatible sensor signals.
- RDo-16xe (329699) — Remote digital output module for discrete control signals.
- RDi-32xe (333523) — Remote digital input module for monitoring digital field signals.
- RDi-32Axe (333824) — Alternative remote digital input module in the RAi/RDi/RDo distributed I/O family.
- RIO-C2xe (333346) — Remote digital I/O module for compatible marine automation systems.
- PSS (8100184) — Process Segment Starcoupler used in supported network architectures.
- C3-Gpxe (334893) — Generator protection module for compatible applications.
- C4xe (334894) — Generator monitoring and control module.
- SIUxe (350928) — Sensor Interface Unit for compatible automation installations.
- PSO-P (8100334) — Power switch-over unit.
- L2C (404654 / 406381) — LAN-to-CAN gateway module.
- SCU (329785) — Segment Controller Unit for compatible K-Chief systems.
- COP 05 Control Room Panel (330952) — Operator control panel for supported marine automation installations.
- RAo-8 (8100153) — Earlier remote analog output module family; verify system and hardware compatibility.
- CANbridge IXXAT (4604600) — CAN-to-Ethernet gateway component used in supported network architectures.
Purchasing Reminder
Before ordering, compare the existing module’s part number and revision with the listed RAo-8xe 333505 Rev. C. Confirm that the required analog output ranges, channel configuration, and host-system compatibility match your application. Ask the seller to confirm the unit’s condition and testing status, and request clear photos of the identification label and terminal connections if needed.
