Description

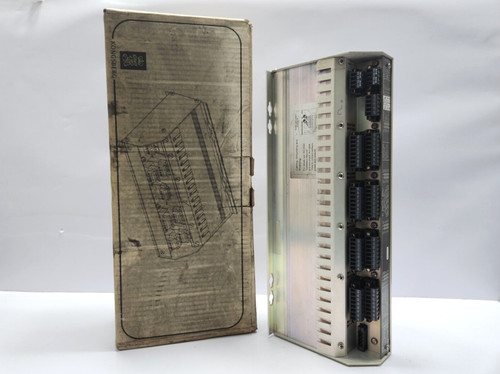

The Kongsberg RDI-32 (Part Number: 8100154) is a high-density Remote Digital Input module engineered for maritime and offshore control systems. It is designed to interface with field-level discrete sensors—such as pressure switches, limit switches, and binary status indicators—and transmit their state to the central automation controller. With its high channel density and robust construction, the RDI-32 is a cornerstone component for monitoring large-scale vessel systems reliably in demanding operational environments.
📋 Technical Specifications
- Model Number: 8100154
- Series: RDI-32
- Function: 32-Channel Digital Input Acquisition
- Input Signal Type: 24VDC Discrete (Active High/Low)
- Communication Protocol: Proprietary Kongsberg Fieldbus
- Dimensions: Standard Kongsberg automation rack module (approx. 11 x 9 x 4 inches)
- Weight: 2.8 lbs (1.27 kg)
- Country of Origin: Norway
⚙️ Application Areas
- Shipboard Alarm and Monitoring Systems (AMS)
- Offshore Platform Process Control
- Safety and Shutdown Systems (SSS)
- Valve and Actuator Position Feedback
- Engine Room Telemetry
🛠️ Operating Instructions & Guidelines
- Installation: The module should be installed in a vibration-dampened, climate-controlled cabinet. Ensure that field wiring is properly routed through cable ducts and separated from high-power AC lines to prevent crosstalk and induced noise.
- Environmental Requirements: Maintain an operating ambient temperature between -15°C and 70°C. Ensure the cabinet remains dry, as marine salt-mist can cause rapid degradation of the terminal contacts if moisture enters the enclosure.
- Maintenance: Regularly test digital inputs using the system maintenance terminal to ensure that field signals correspond accurately to the control software. Clean the PCB annually with low-pressure dry air to prevent conductive dust accumulation.
⚡ Power Sequence & Operation
- Power-On Sequence: 1. Verify 24VDC supply integrity. 2. Ensure the fieldbus communication cable is locked into the backplane or front port. 3. Apply power and observe the status LEDs. 4. Wait for the module to finish its internal diagnostic boot, indicated by a stable “Ready” or “Comm OK” LED.
- Power-Off Sequence: 1. Notify the system operator to place the system in a “Maintenance” or “Off” state. 2. De-energize the 24VDC source. 3. Disconnect cables only after the status LEDs have fully extinguished.
- Step-by-Step Operation: 1. Use the Kongsberg engineering station to map each of the 32 input channels to specific tags in the automation software. 2. Perform a “walk-through” test: manually trigger each field sensor and confirm that the corresponding HMI element changes state. 3. Monitor the module’s diagnostic registers for any reported channel-level faults (e.g., short circuits or open loops).
❓ Frequently Asked Questions (Q&A)
- Why are my digital inputs showing as “Uncertain” or “Faulty” on the HMI? This often indicates a communication loss between the RDI-32 and the master controller. Verify that the communication cable is intact and that no address conflicts exist on the fieldbus.
- What should I do if a single channel does not respond? Use a multimeter to measure the voltage directly at the terminal block. If 24VDC is present when the sensor is closed but the HMI shows no change, the internal opto-isolator for that channel may be damaged.
- Can I replace this module while the system is running? Unless your specific system architecture supports “Hot Swapping,” it is unsafe to remove or insert this module while energized, as it could cause a disruption to the communication bus and trigger emergency alarms.
- Are the inputs galvanically isolated? Yes, the RDI-32 series typically features opto-isolation to protect the sensitive internal processor from surges or ground loops coming from the field sensor circuits.
