Description
- Model: GPD506V-B004
- Brand: Magnetek (Yaskawa legacy technology)
- Series: GPD 506V / Legacy AC Drives
- Core Function: Variable Frequency Drive (VFD) for AC Motor Speed Control
- Product Type: General Purpose AC Drive
- Key Specs: 230V Input | 3.0 HP (Normal Duty) | 2.2 kW | 3-Phase
- Input Voltage: 200–230 V AC, 3-Phase (+10% / -15%)
- Horsepower Rating:
- 3.0 HP (Normal Duty)
- 2.0 HP (Heavy Duty / Constant Torque)
- Output Current: Approx. 9.6 A (Continuous)
- Output Frequency: 0.1 to 400 Hz
- Control Method: V/f Control or Open Loop Vector
- Overload Capacity: 150% for 60 seconds (Heavy Duty)
- Braking: Built-in braking transistor for dynamic braking applications
- Enclosure: NEMA 1 (IP20)
- Communication: Supports optional Modbus or proprietary network cards
- Cooling: Forced air cooling (internal fan)

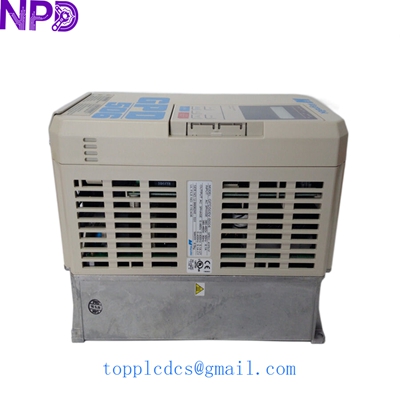

Magnetek GPD506V-B004
Installation & Configuration Guide
Stage 1: Pre-Installation
⚠️ Safety Checklist:
- Voltage Match: Verify that your supply is 230V. Attempting to run this “B” series drive on 460V will cause immediate and explosive failure of the input bridge.
- Capacitor Check: Since these are legacy drives, if the unit has been in storage for over 2 years, it is recommended to “reform” the capacitors by applying power gradually through a variac.
- Heat Sink Clearance: Ensure at least 120mm of clearance above and below the drive for proper airflow.
Required Tools:
- Screwdriver set (Phillips #2 and Flathead)
- Digital Multimeter
- Wire strippers and crimp terminals (Ring or Spade)
Stage 2: Wiring
Steps:
- Power Input: Connect your L1, L2, L3 lines to terminals R/L1, S/L2, T/L3.
- Motor Output: Connect the motor leads to U/T1, V/T2, W/T3.
- Warning: Never connect incoming power to the U, V, W terminals—this will destroy the drive.
- Grounding: Connect the green/yellow ground wire to the chassis ground terminal. High-frequency noise from VFDs requires a solid ground path to avoid interference with other sensors.
Stage 3: Parameter Programming
Steps:
- Initialize: Set parameter n001 to “8” or “9” to reset the drive to factory defaults (2-wire or 3-wire control).
- Motor Data: Input the nameplate data into the drive:
- n032: Rated Motor Amps.
- n031: Rated Motor Voltage.
- Control Source:
- n003: Set to “0” for the digital operator (keypad) or “1” for external terminal control.
- Acceleration/Deceleration: Set n019 (Accel) and n020 (Decel) based on your load inertia.
Stage 4: Testing & Commissioning
Validation:
- No-Load Test: Disconnect the motor from the load. Run the drive at 5 Hz and verify the motor rotates in the correct direction.
- Status LEDs:
- RUN: Green when operating.
- ALM/ERR: Red if a fault occurs (check the display for codes like OC for Overcurrent or OV for Overvoltage).
- Current Monitor: Check the output current under load to ensure it does not exceed the drive’s continuous rating.
Magnetek GPD506V-B004
Customer Cases & Industry Applications
Case 1: Machine Tool Spindle Repair
Situation: A precision machine shop was using a Magnetek GPD506V-B004 to drive a lathe spindle. The drive failed due to age-related component fatigue, halting a critical production run.
Task: Find an exact replacement to avoid the time-consuming process of re-wiring a modern drive and re-programming the CNC interface.
Action: We supplied a New Surplus unit. Because it was the exact same model, the customer swapped the terminal blocks and was back in production within an hour.
Result: The shop avoided a 3-day downtime event and saved the cost of hiring an external integrator to install a newer series drive.
Case 2: Conveyor System Retrofit
Situation: A distribution center had several older 230V conveyors. They needed a reliable, cost-effective spare for their aging GPD 506V drives.
Task: Ensure inventory availability for legacy hardware that is no longer supported by Yaskawa/Magnetek.
Action: The facility purchased two GPD506V-B004 units from our surplus stock. We provided full testing reports showing the drives under load before shipping.
Result: The maintenance team now has “plug-and-play” spares on the shelf, extending the life of their existing conveyor system by another 5–10 years.
Magnetek GPD506V-B004
Frequently Asked Questions (FAQ)
Q: Is the Magnetek GPD 506V the same as a Yaskawa drive? A: Yes. Magnetek drives from this era were manufactured by Yaskawa. The GPD506V is functionally identical to the Yaskawa V7 or G5 series of the same era, depending on the specific firmware.
Q: My drive shows an “EF” fault. What does that mean? A: EF typically stands for an “External Fault.” Check terminal S3, S4, or S5. If one of these is programmed as an external fault input and the circuit is open, the drive will trip.
Q: Can I run this drive on single-phase power? A: While some VFDs can be de-rated for single-phase use, the GPD506V-B004 is designed for 3-phase input. Running it on single-phase can lead to high DC bus ripple and premature failure of the input bridge unless significantly de-rated (typically by 50%).
Q: Why choose “New Surplus” over “Refurbished”? A: New Surplus units are original equipment that was never put into service. Unlike refurbished units, the internal power transistors and capacitors haven’t been subjected to thousands of hours of heat and vibration. It is the closest thing to buying a brand-new factory unit for a legacy system.
