Description

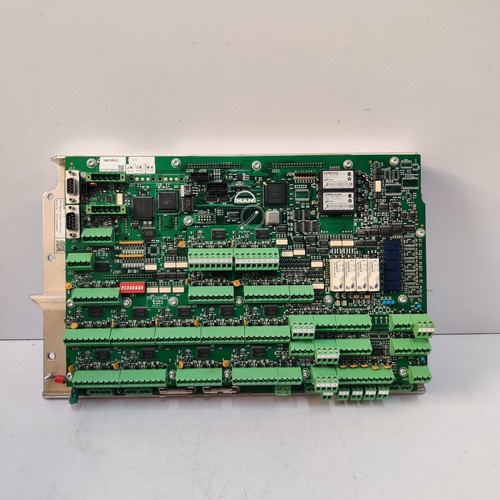

The MAN Diesel & Turbo Master Control Unit (MCU), part number 1881610-7, is a critical electronic control component used in large-bore engine management systems. It functions as the central processor for engine automation, governing complex processes such as fuel injection timing, exhaust valve actuation, and overall synchronization of the engine’s performance according to the load and operational parameters.
Product Overview
- Manufacturer: MAN Diesel & Turbo
- Part Number: 1881610-7
- Product Type: Master Control Unit (MCU) / Engine Control Module
- Application: Large-scale marine propulsion and power generation diesel engines.
- Function: Acts as the “brains” of the engine control system, processing sensor data, calculating optimal operational parameters, and outputting control signals to fuel and valve actuators.
Technical Characteristics
- High-Speed Processing: Designed to handle real-time calculations required for electronic engine management (such as Alpha Lubricator or electronic fuel injection systems) at high engine speeds.
- Safety & Redundancy: Built to operate within a distributed control network, often working in tandem with slave controllers to ensure engine performance continues even if peripheral subsystems experience localized issues.
- Environmental Design: Engineered specifically for the harsh conditions of marine engine rooms, including high levels of vibration, extreme temperature variances, and electrical noise.
- Communication: Utilizes proprietary bus protocols to interface with other engine automation components, bridge control stations, and ship-wide alarm and monitoring systems.
Installation & Maintenance Considerations
- Software Configuration: This unit is heavily software-dependent. Simply installing the hardware is rarely sufficient; the MCU must be programmed with the specific engine-side calibration software and parameter files corresponding to your engine’s serial number and configuration.
- Static/Electrical Sensitivity: As a high-density processing board, it is highly susceptible to electrostatic discharge (ESD) and voltage spikes. Ensure that power is fully isolated and grounding protocols are followed during physical replacement.
- Diagnostics: Modern MAN MCU units feature onboard diagnostic capabilities. Before declaring the unit faulty, use the service tool software (such as MAN’s proprietary diagnostic interface) to check for logged fault codes that may indicate a signal error from an external sensor rather than an internal board failure.
Important Advisory: Replacing an MCU on a marine propulsion engine is a major maintenance task. Always confirm the compatibility of the part number
1881610-7with your engine builder’s technical documentation, as minor hardware revisions can exist within the same part series. In many instances, the MCU must be “married” to the engine management software by an authorized technician to ensure safety and emission compliance.
