Description
Technical Parameters
- Manufacturer: Markem-Imaje
- Model Number: A37883-E

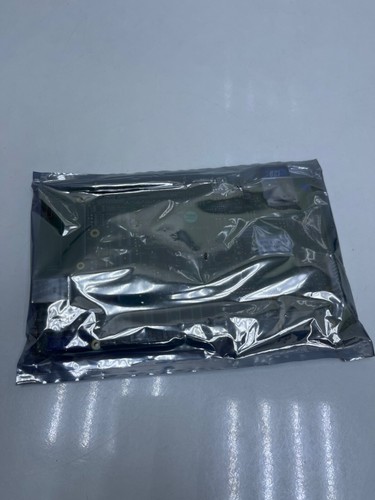

- Product Type: Main Logic CPU Board
- System Compatibility: 9020, 9030, and 9040 Series Small Character Inkjet (CIJ) Printers
- Processor: High-performance embedded controller for real-time drop synchronization
- Voltage Input: 24V DC Internal Supply
- Interface: Support for HMI display, industrial Ethernet, and RS-232/485 serial communication
- Memory: Integrated Flash memory for message storage and system firmware
Product Datasheet
| Specification | Details |
|---|---|
| Model | A37883-E |
| Origin | France |
| Dimensions | 22.5 cm x 18.0 cm x 3.2 cm |
| Weight | 0.58 kg |
| Printing Control | Multi-nozzle synchronization logic |
| Operating Temp | 5°C to 45°C |
| Storage Temp | -20°C to +70°C |
| I/O Support | Photocell, Encoder, and Alarm Outputs |
Application Fields
The A37883-E is the central intelligence unit for high-speed industrial coding:
- Food & Beverage: Managing high-speed date and batch code printing on production lines.
- Pharmaceuticals: Ensuring precise tracking codes and 2D barcodes on medicine packaging.
- Electronics Manufacturing: Handling microscopic character printing on PCB components and cables.
- Extrusion Industry: Continuous printing on wires, pipes, and cables with high-speed encoder feedback.
Product Instructions
- Preparation: Power off the printer and wait for the system to fully discharge before opening the electronics cabinet.
- ESD Safety: This board contains highly sensitive microprocessors. Use a grounded anti-static wrist strap throughout the installation process.
- Connection: Carefully disconnect the ribbon cables for the printhead, power supply, and display. Note the orientation of each connector.
- Board Swapping: Remove the mounting screws and replace the board. Ensure the new board is seated firmly on the mounting pillars to provide proper grounding.
- Firmware Sync: After installation, it may be necessary to update the firmware or reload specific machine parameters (Constants) to match the existing printhead and hydraulic settings.
Q&A
Q1: What are the symptoms of a failing A37883-E main board? A1: Typical signs include failure to boot (blank screen), inconsistent drop synchronization (blurry printing), communication errors with the HMI, or the printer failing to recognize the printhead.
Q2: Is the A37883-E interchangeable between the 9020 and 9030 models? A2: Yes, the A37883-E hardware is common across much of the 9000 series, but the software configuration and jumper settings must be adjusted to match the specific printer model.
Q3: Can this board be repaired if it has a “Communication Error”? A3: Minor communication issues can sometimes be resolved by reseating cables or replacing the communication ICs, but for mission-critical production lines, a full board replacement is recommended to prevent downtime.
