Description

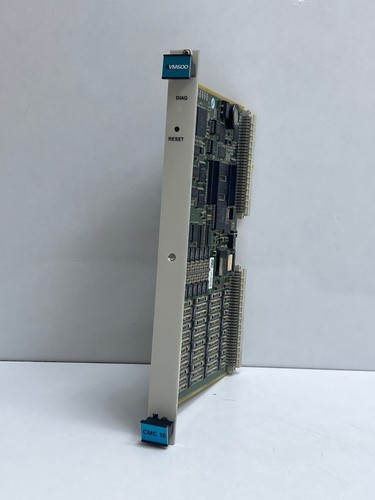

The 200-530-026-014 is a Condition Monitoring Card (CMC16) designed for the VM600 series machinery protection system. This high-performance module is engineered for the acquisition and processing of dynamic signals such as vibration, pressure, and combustion noise in rotating machinery. It provides advanced diagnostic capabilities by performing high-speed FFT analysis and extracting key spectral components to ensure the operational integrity of industrial assets.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 200-530-026-014 VM600 CMC16 |
| Part Type | Condition Monitoring Cluster (CMC16) |
| Input Channels | 16 Dynamic signal channels |
| Signal Processing | High-speed DSP for FFT and Spectral analysis |
| Frequency Range | DC to 20 kHz (Typical) |
| Communication | VME bus interface / Ethernet via IOC16T |
| Operating Temperature | -20°C to +65°C (-4°F to +149°F) |
| Dimensions (H x W x D) | 6U Height, 4TE Width (Standard VME) |
| Weight | Approximately 0.65 kg (1.43 lbs) |
| Country of Origin | Switzerland |
The VM600 CMC16 module is widely utilized in heavy industries where machinery reliability is critical:
- Power Generation: Gas turbines, steam turbines, and hydroelectric generators.
- Oil & Gas: Centrifugal compressors, pumps, and cooling fans.
- Petrochemical: Critical rotating equipment and expansion turbines.
- Marine: Propulsion systems and large onboard motors.
Product Instructions
- Installation: The CMC16 module must be inserted into a VM600 ABE04x rack. Ensure the rack is powered off during insertion to prevent electrostatic discharge (ESD) damage.
- Configuration: Use the Vibro-Meter MPS (Machinery Protection System) software to configure channel parameters, alarm limits, and signal processing types.
- Wiring: Connect the dynamic sensors (Accelerometers, Proximity probes) through the corresponding IOC16T input/output card located at the rear of the rack.
- Maintenance: Periodically check the status LEDs on the front panel. A green ‘OK’ LED indicates normal operation, while a red ‘FAIL’ LED signifies a hardware or configuration error.
Common Questions Q&A
Q: Can the CMC16 be used for both protection and monitoring? A: The CMC16 is primarily designed for “Condition Monitoring” (diagnostics). While it processes signals, the MPC4 module is typically used for “Machinery Protection” (automatic shutdown).
Q: What is the difference between the 200-530-026-014 and other CMC16 versions? A: This specific part number refers to a particular hardware revision and firmware compatibility set within the VM600 ecosystem. Always verify firmware versions before integration.
Q: Does this module support Ethernet connectivity? A: Yes, when paired with an IOC16T or a CPUM module, data processed by the CMC16 can be transmitted via Ethernet to remote monitoring software.
Recommended Similar Models
If you are looking for related components for the VM600 system, consider the following:
- MPC4 (200-510-076-114): Machinery Protection Card.
- IOC4T (200-560-000-016): Input/Output Card for MPC4.
- CPUM (200-595-071-111): Central Processing Unit & Communication Module.
- ABE040 (200-401-000-011): VM600 System Rack/Chassis.
- RPS6U (200-582-100-011): Rack Power Supply Module.
