Description
The Metso A413280 CPR1 is a high-performance central processor module designed for the Metso DNA (formerly Neles Automation) distributed control system. As the primary intelligence unit of the control station, it is responsible for executing real-time control logic, managing communication between I/O modules, and interfacing with the higher-level system network.
Product Introduction
The CPR1 (Control Processor Revision 1) module is engineered for reliability in demanding industrial environments. It utilizes a deterministic multitasking operating system to ensure that critical process loops—such as those found in pulp and paper mills or power plants—are executed with microsecond precision. The module is typically housed in a dedicated subrack where it communicates with ACN (Advanced Control Network) components.
A key feature of the A413280 is its support for high-availability configurations. In mission-critical applications, two CPR1 modules can be configured in a redundant pair, where a “Hot Standby” unit mirrors the operations of the “Primary” unit, allowing for an instantaneous bumpless transfer in the event of a hardware failure.

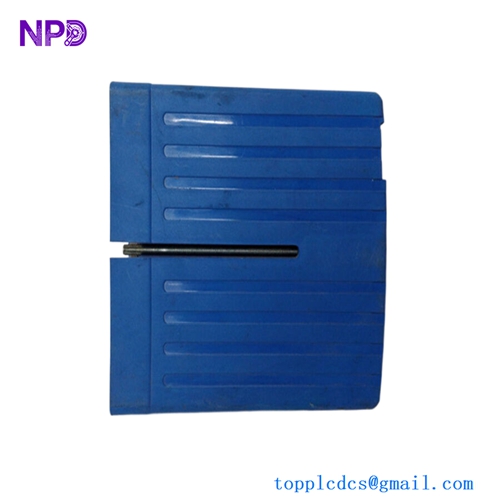

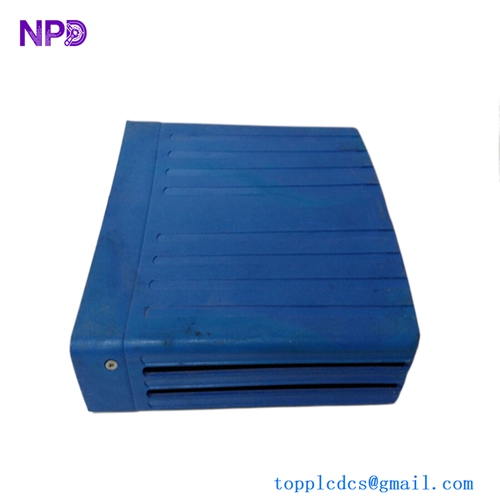

METSO A413280 CPR1
Product Parameters (Datasheet)
The following specifications represent the core technical profile of the A413280 CPR1:
| Feature | Specification |
| Model Number | CPR1 |
| Part Number | A413280 |
| Processor Architecture | High-speed 32-bit RISC |
| Memory (RAM) | 128 MB (Standard Configuration) |
| Flash Memory | 32 MB (For firmware and configuration storage) |
| Communication Interface | 10/100 Mbps Ethernet (ACN Network) |
| Serial Ports | RS-232 / RS-485 for local diagnostics |
| Power Consumption | Typically 15W @ +5V DC (Internal Bus) |
| Redundancy Support | Dual-processor redundancy supported |
| Operating System | Real-time Multitasking OS |
| Operating Temperature | 0°C to +55°C |
| Mounting Type | Rack-mounted (ACN Chassis) |
Country of Origin
- Origin: Finland
Metso’s automation division (now part of Valmet) has its primary research, development, and manufacturing facilities in Tampere, Finland. The A413280 is manufactured to strict European industrial standards (CE) for electromagnetic compatibility and vibration resistance.
Technical Description & Features
- Deterministic Execution: The CPR1 module uses a fixed scan time architecture, ensuring that control signals are processed at consistent intervals, which is vital for stable PID control.
- Integrated Diagnostics: The front panel includes an alphanumeric display or LED array that provides real-time status codes, indicating the health of the processor, network connectivity, and redundancy status.
- Galvanic Isolation: The internal circuitry is protected from field disturbances through high-level isolation, preventing surges from damaging the processor core.
- Cold Start/Hot Start Logic: The module manages different boot levels to preserve process data during momentary power interruptions.
Product Usage Instructions
1. Hardware Installation
- Ensure the ACN rack power is switched off before inserting the module.
- Slide the A413280 into the designated CPU slot.
- Secure the module using the top and bottom captive screws to ensure a solid connection to the backplane and proper grounding.
2. Network Configuration
- Connect the Ethernet cables to the ACN ports. In redundant systems, ensure the redundancy link cable is securely connected between the two CPR1 modules.
- Use the Metso DNA engineering tools to assign the Station ID and IP address.
3. Maintenance
- Periodically check the internal backup battery (if equipped) to ensure the RAM remains powered during maintenance shutdowns.
- Inspect the cooling fans within the rack to prevent the processor from throttling due to high temperatures.
Common Problems Q&A
Q: What does a “FAIL” status on the front display indicate? A: A solid “FAIL” indicates a critical hardware error. A flashing “FAIL” usually suggests a configuration mismatch or that the module is waiting for a valid firmware download from the engineering station.
Q: Can I replace a CPR1 with a CPR2 module? A: While the CPR2 is the successor, compatibility depends on the version of the Metso DNA software running on your system. Upgrading may require a firmware update for the entire station.
Q: Is the A413280 hot-swappable? A: In a redundant configuration, the standby processor can be replaced while the system is running. However, the primary processor should never be removed while active unless a manual switchover to the standby unit has been successfully completed.
Recommended Related Models
- Metso A413281 CPR2: The high-performance successor to the CPR1 with expanded memory.
- Metso A413210 IOM: Standard Input/Output management module.
- Metso A413125 NIU: Network Interface Unit for connecting remote I/O clusters.
- Metso A370210: Power supply module for the ACN controller rack.
- Metso DNA Engineering Station: The software suite required to configure the A413280.
