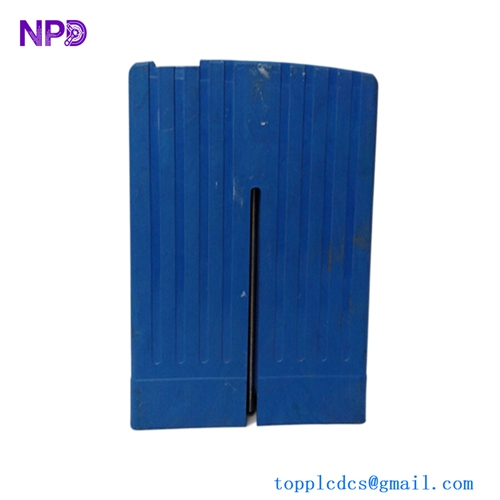

The METSO A413285 BIR82 is an industrial automation module designed for process control and distributed PLC systems in heavy‑duty industrial environments. This unit is part of the Metso Automation product family used in systems that demand reliable input/output processing and robust signal interfacing.
The BIR82 designation typically refers to a binary input module with 8 channels, providing isolated digital signal reception from field sensors and discrete devices such as switches, proximity detectors, and status contacts. The module’s internal design supports industrial logic levels and ensures stable, high‑integrity signal acquisition for control systems.
Metso Automation modules are widely used in pulp and paper, mining and minerals processing, metals, power generation, and energy industries where long‑term performance, regular uptime, and predictable behavior under environmental stress are necessary. The A413285 BIR82 is engineered to perform reliably in these environments.
Product Parameters (Typical Technical Characteristics)
Below are typical technical characteristics representative of the METSO A413285 BIR82 module. The actual values depend on system configuration, sensor types used, and control system design.
METSO A413285 BIR82
| Parameter | Typical Description |
|---|---|
| Product Type | Binary Input (Discrete) Module |
| Model Number | A413285 BIR82 |
| Brand/Manufacturer | Metso Automation |
| Input Channels | 8 Isolated Digital Inputs |
| Input Signal Type | Discrete On/Off Logic |
| Input Voltage Level | Industrial logic range (e.g., 24 V DC nominal) |
| Isolation | Channel‑to‑module electrical isolation for noise immunity |
| Mounting Format | PCB or rack mount compatible in automation chassis |
| Dimensions | Compact industrial module form factor |
| Weight | Light, board‑level component style |
| Operating Temperature Range | Standard industrial ambient range |
| Environmental Suitability | Designed for control cabinets and panel mounting |
| Protection Level | Industrial grade electrical insulation |
The module interfaces directly with a host control system such as a distributed PLC or PLC rack, where it provides conditioned digital inputs for control logic execution.
Datasheet‑Style Description
The A413285 BIR82 is an 8‑channel binary input module with industrial sensor compatibility. Each channel is designed to detect and condition discrete signals from field devices, converting mechanical or contact closures into logic signals that can be read by the automation system.
Key functional highlights:
- Digital Acquisition: The module receives binary (high/low) signals representing the state of field devices like proximity switches, limit switches, or pushbuttons.
- Input Conditioning: Built‑in conditioning circuitry filters noise and provides electrical isolation to protect the control system from transients or ground loops.
- Channel Isolation: Each input channel is isolated to prevent cross‑talk and reduce vulnerability to electrical interference.
- Signal Integrity: Designed for high repeatability and immunity to industrial electrical noise.
- Plug‑In Compatibility: The module fits into a standard automation rack or chassis that supports Metso Automation PLC modules.
Unlike analog modules that measure variable signals, the BIR82 interprets simple on/off logic, which makes it essential for control schemes where discrete decisions, interlocks, or status monitoring occur.
Country of Origin
The METSO A413285 BIR82 module is produced and assembled under Metso’s global automation manufacturing standards. Metso is headquartered in Finland and has long‑established engineering and production facilities in Europe and globally, ensuring quality control and compliance with industrial reliability standards. These facilities follow rigorous testing protocols to ensure that each module meets performance and environmental specifications appropriate for heavy industrial deployment.
Application Fields
The A413285 BIR82 module is used in environments where discrete signal input from field devices must be communicated reliably to central control logic. Typical application fields include:
- Pulp and Paper Mills
Monitoring limit switches, safety interlocks, and discrete equipment status. - Mining and Minerals Processing
Integrating rock crusher status, feeder detection, and conveyor limit switches. - Metals and Steel Plants
Detecting position sensors and safety signals in material handling areas. - Power and Generation Systems
Discrete signal monitoring from generators, breakers, and auxiliary systems. - Process Automation
Industrial processes requiring integration with PID control systems and safety shut‑off logic. - Water and Wastewater Treatment
Interfacing with level switches, pump feedback, and valve position sensors.
Across these industries, BIR82 modules serve as reliable building blocks for distributed control system (DCS) installations.
METSO A413285 BIR82
Product Usage Instructions
Installation:
- Mount the module in a dedicated automation rack or cabinet designated for Metso Automation PLC modules.
- Ensure proper orientation and secure mechanical fastening to prevent vibration‑induced disconnections.
Electrical Connections:
- Connect field device wiring (switches, sensors) to the designated input terminals.
- Verify input voltage compatibility (industrial DC logic range as specified in system documentation).
- Maintain clear routing of low‑voltage signal wiring separate from high‑power conductors to minimize electrical noise.
Commissioning:
- After physical installation, power up the automation system and verify detection of discrete inputs.
- Perform functional checks by actuating field devices and confirming correct input response in the control software.
Operation:
- During normal operation, the module continuously reports input states to the controller.
- Use the control system’s diagnostic tools to monitor input integrity and signal changes.
Maintenance:
- Periodically inspect terminal connections for corrosion or looseness.
- Ensure the module continues to operate within published temperature limits in the cabinet.
Note that the precise wiring diagrams, input voltage ranges, and signal logic levels should be obtained from the system’s automation documentation or integrator.
Recommended Related Metso Automation Products
If you are using the A413285 BIR82 module in a control system, the following product types from the same brand may also be relevant depending on your automation needs:
| Model | Function Description |
|---|---|
| A413744 BOR82 | Binary Output Relay Module (8 channels) for discrete switching outputs. |
| A413752 AIR8C | Analog Input Module (8 channels) for continuous sensor measurement. |
| A413757 AOR4C | Analog Output Module for 4‑channel current or voltage output control. |
| A413280 Processor Module (CPR1 or equivalent) | Core PLC CPU module for system logic and communications. |
| M851362 Power Supply Module | Power conversion unit providing stable DC power to rack modules. |
These modules together form a modular automation platform supporting a mix of discrete and continuous I/O, CPU processing, and power distribution to deliver complete control solutions.
Frequently Asked Questions (FAQ)
Q1: What type of signals does the BIR82 handle?
A1: It handles discrete (on/off) digital signals from field devices such as switches and sensors.
Q2: Can the module be installed in a standard PLC rack?
A2: Yes, it is designed to be compatible with Metso Automation PLC racks and chassis.
Q3: Is this module suitable for harsh industrial environments?
A3: Yes, it is built to industrial standards with isolation and noise‑immune circuitry.
Q4: What industries most often use this module?
A4: Pulp and paper, mining and minerals, metals, water treatment, and power generation.
Q5: Does it support analog inputs?
A5: No, BIR82 specifically supports binary (discrete) digital inputs; separate modules handle analog signals.
Conclusion
The METSO A413285 BIR82 is a reliable, industrial‑grade binary input module designed to integrate field‑level discrete signals into a larger automation control system. With robust electrical isolation, multiple input channels, and compatibility with Metso PLC architectures, it supports demanding industrial installations where accurate status monitoring and logic interfacing are essential. Recommended related modules extend system capability to include outputs, analog I/O, CPU processing, and power supply support, enabling complete control system solutions based on Metso Automation components.
