Description

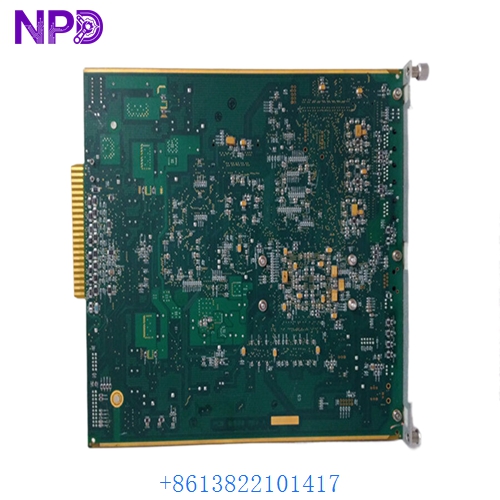

- The Metso PDP401 is a high-performance Profibus DP communication processor designed for the maxDNA Distributed Control System (DCS). It serves as a specialized gateway, enabling seamless integration between the maxDNA control network and various Profibus-compliant field devices, such as motor starters, drives, and remote I/O stations.
Product Parameters
- Protocol: Profibus DP (Master/Slave capability)
- Data Rate: Up to 12 Mbps (Auto-baud detection)
- Interface: RS-485 Serial Interface
- Voltage: 24 V DC internal supply
- Power Consumption: 5.5 Watts
Product Specifications
- Series: Metso / Valmet maxDNA DCS
- Mounting: Standard maxDNA I/O rack or baseplate
- Diagnostics: Front-panel LED status indicators for bus health and module power
- Isolation: Built-in galvanic isolation for signal integrity
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
Application Fields
- Power Generation: Interfacing with burner management systems and turbine auxiliaries.
- Pulp & Paper: Coordinating variable frequency drives (VFDs) and smart sensors on paper machines.
- Chemical Processing: Data exchange with hazardous area fieldbus instruments.
- Substation Automation: Linking protective relays and smart meters to the central DCS.
Product Q&A
Q: What is the primary function of the PDP401 in a maxDNA rack? A: It acts as the communication master for a Profibus DP segment, collecting data from slave devices and mapping it directly into the maxDNA global database.
Q: Can the PDP401 support redundant network paths? A: Yes, it is typically deployed in redundant configurations to ensure that communication with critical field devices remains active in the event of a cable or module failure.
Q: Is specific software required for the PROFIBUS configuration? A: Yes, the Profibus network parameters and GSD files are managed through the maxDNA configuration environment or specialized Profibus maintenance tools.
