Description

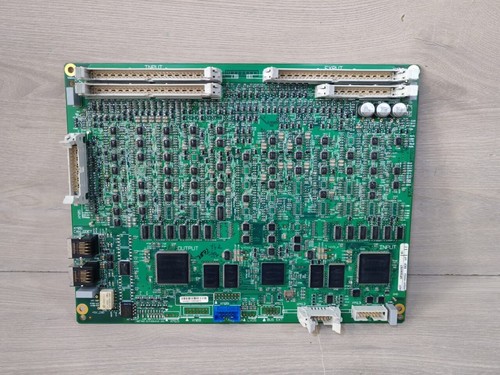

The MGE DIGIT 34020874XD-8EA (also identified by the part number OP3087ET) is a dedicated Controller PCB used primarily in MGE (now part of Schneider Electric/APC) Uninterruptible Power Supply (UPS) systems. This board acts as the central intelligence for the power management unit, responsible for monitoring input power quality, managing battery charging cycles, and controlling the inverter output during power fluctuations or outages.
Technical Specifications
| Feature | Details |
| 🏗️ Brand | MGE (Schneider Electric/APC) |
| 🏷️ Model | 34020874XD-8EA / OP3087ET |
| 🌍 Origin | France / International |
| ⚡ Power Supply | Low voltage DC (derived from UPS internal supply) |
| 🔌 Connectivity | Ribbon cable headers, logic-level I/O pins |
| ⚙️ Function | UPS Logic & Power Conversion Control |
| 🎨 Color | Industrial Green (PCB) |
| 🔄 Hot-Swap | Requires full shutdown for safe replacement |
Product Features
- ✅ Real-Time Monitoring: Continuously scans the state of battery banks and utility AC input to initiate seamless switching to battery power.
- ✅ Inverter Control: Precisely manages the pulse-width modulation (PWM) signals to the output transistors, ensuring stable sine-wave power delivery.
- ✅ Diagnostic Feedback: Features onboard circuitry to detect and report faults (such as battery end-of-life or inverter saturation) to the UPS status panel.
- ✅ Hardware Reliability: Engineered with high-quality passive and active components to operate in environments where heat dissipation is critical.
- ✅ System Stability: Ensures synchronization between the UPS output and the utility grid during bypass transitions.
