Description
The Micro Innovation GF1-10TVD-100 is a high-resolution industrial Human Machine Interface (HMI) from the Galileo family. Designed for robust visualization and control, it is commonly used in machine building and process automation to provide a clear, tactile interface for operators.
Product Parameters (Datasheet)
- Model Number: GF1-10TVD-100
- Display Type: 10.4-inch TFT Color LCD
- Resolution: 640 x 480 pixels (VGA)
- Colors: 256 colors
- Touch Technology: Analog Resistive
- Processor: 32-bit RISC CPU
- Memory: 4 MB Flash (Internal Project Memory)
- Interfaces:
- 1x RS232 (Sub-D 9-pin)
- 1x RS485 / RS422
- 1x CAN (Integrated)
- Supply Voltage: 24V DC
- Front Panel Rating: IP65 (Dust-tight and water-jet protected)

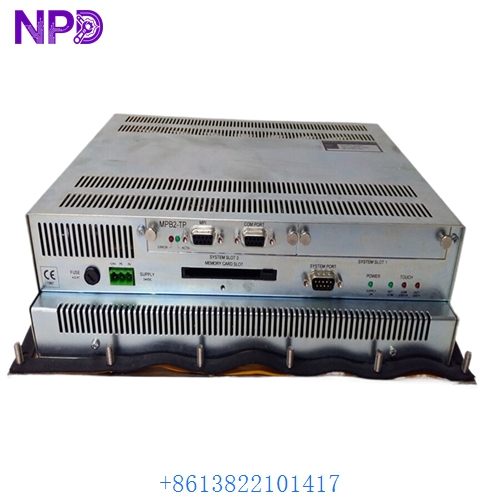

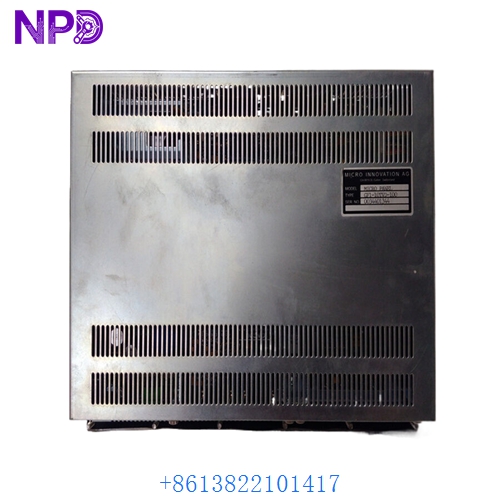

MICRO INNOVATION GF1-10TVD-100
MICRO INNOVATION GF1-10TVD-100
MICRO INNOVATION GF1-10TVD-100
Application Fields
The GF1-10TVD-100 is a versatile HMI found in various industrial sectors:
- Packaging Machinery: Controlling fill rates, bag sealing temperatures, and conveyor speeds.
- Textile Automation: Managing pattern logic and tension control on looms.
- Plastic Injection Molding: Visualizing heating zones and pressure curves.
- Building Automation: Centralized monitoring for HVAC, lighting, and security systems.
- Food & Beverage: Localized control for pasteurization and bottling lines where wash-down protection is required.
Product Usage & Installation
- Panel Cutout: Ensure the cabinet cutout matches the dimensions specified in the GF1 manual. Use the provided mounting clamps to secure the unit and compress the front gasket for an IP65 seal.
- Power Wiring: Connect a stable 24V DC power source. Ensure the ground terminal is connected to the cabinet’s common ground to prevent touchscreen interference.
- Communication: Use the RS232 or CAN port to link the HMI to your PLC (e.g., Moeller/Eaton, Siemens, or Allen-Bradley). The unit supports a wide range of industrial communication drivers.
- Software: Programming is typically handled via the Galileo design software. Projects are downloaded to the unit via the serial port or a storage card.
- Touch Calibration: If the touch response is inaccurate, use the system menu (usually accessed by pressing a specific corner during boot-up) to run the calibration utility.
Product Technical Description
Technically, the GF1-10TVD-100 is an “Intelligent Terminal.” Unlike basic displays, it processes the graphical logic locally, which reduces the communication load on the PLC. The 32-bit RISC processor ensures smooth screen transitions and rapid response to touch inputs. A key feature of the GF1 series is the integrated CAN interface, which allows it to act as a node in a CANopen or DeviceNet network. The 10.4-inch TFT display provides superior brightness and viewing angles compared to older STN models, making it readable even in brightly lit factory environments.
Q&A (Common Questions)
Q: Is Micro Innovation related to Eaton or Moeller? A: Yes. Micro Innovation was acquired by the Moeller Group, which later became part of Eaton. Many GF1 units are branded as Moeller or Eaton but share the same internal hardware.
Q: Can I replace the backlight if it fails? A: Yes, the CCFL backlight tubes in the GF1 series are generally replaceable, though it requires careful disassembly of the LCD sandwich.
Q: What do I do if the project memory is full? A: Ensure your graphical assets (bitmaps) are optimized for 256 colors. If space is still an issue, some revisions of the GF1 allow for external memory expansion via a PCMCIA or CF card slot.
Q: Does this model support Ethernet? A: The standard GF1-10TVD-100 focuses on Serial and CAN communication. For Ethernet-based protocols (like Modbus TCP), you would typically look at the “ET” or “ETH” variants of the Galileo series.
Similar Model Recommendations
- Micro Innovation GF1-10TID-100: 10.4″ version with different communication options.
- Eaton XV-102: A modern successor with widescreen LED displays and Ethernet.
- Micro Innovation GF1-07TVD: The smaller 7-inch version of this interface.
- Moeller MI4-101-TA1: The Moeller-branded equivalent for legacy systems.
- Micro Innovation GF1-12TVD: The larger 12.1-inch display variant.
For technical manuals, GRS project files, or to check availability for the Micro Innovation GF1-10TVD-100, please contact our automation support team.
