Description
Product Core Brief
- Model: MOOG D136-001-007
- Brand: MOOG (USA)
- Series: D136 Digital Controller Series
- Core Function: High-speed closed-loop control for hydraulic servo valves
- Product Type: Digital Servo Controller / Amplifier
- Key Specs: 24 V DC Power | CANbus Interface | ±10 V Analog I/O

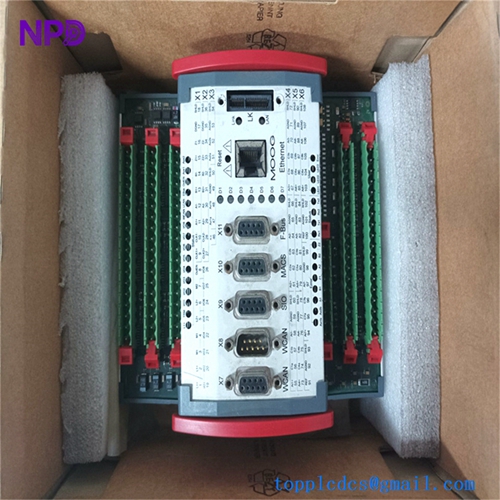

MOOG D136-001-007
Key Technical Specifications
- Operating Voltage: 24 V DC (Permissible range 18 – 32 V DC)
- Current Consumption: Max 500 mA (excluding valve drive current)
- Analog Inputs: ±10 V or 4-20 mA (Configurable)
- Communication Protocol: CANbus / CANopen / RS-232 for diagnostics
- Control Loop Frequency: Up to 10 kHz for high-dynamic response
- Input Impedance: 10 kΩ (Differential input)
- Mounting: 35 mm DIN rail (EN 50022)
- Protection Class: IP 20
- Feedback Support: LVDT (Linear Variable Differential Transformer) support
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
Installation & Configuration Guide
Phase 1: Pre-Installation
Estimated time: 10 minutes
⚠️ Safety Protocol:
- Notify production of the scheduled downtime.
- Verify hydraulic pressure is at zero (check analog gauges).
- Power down the 24 V DC supply to the cabinet.
- Important: Use an ESD (Electrostatic Discharge) wrist strap. MOOG digital boards are highly sensitive to static.
Preparation:
- Standard PH1 Phillips and 2.5 mm flathead screwdrivers.
- Fluke 115 Multimeter for voltage verification.
- Take high-resolution photos of the old module’s DIP switch positions and terminal wiring.
Phase 2: Removal
Estimated time: 5 minutes
- Disconnect Communication: Gently unplug the CANbus or RS-232 cables. Do not pull on the wires directly.
- Labeling: Mark every wire with its corresponding terminal number (e.g., Signal +, Signal -, Feedback).
- Unmount: Pull the black locking clip at the bottom of the module downwards using a flathead screwdriver. Tilt the module forward and lift it off the DIN rail.
Phase 3: Installation
Estimated time: 15 minutes
- Configure Hardware: Mirror the DIP switch settings from the old module to the new one to ensure the Station ID and Baud Rate match the PLC’s configuration.
- Mounting: Hook the top of the D136-001-007 onto the rail and press the bottom until it clicks.
- Wiring:
- Reconnect the 24 V DC power (Double-check polarity; reverse polarity can blow the input fuse).
- Connect the servo valve drive lines and feedback signals. Ensure the shield wire is grounded at one end to prevent EMI noise.
Phase 4: Power-On & Testing
Estimated time: 20 minutes
- Dry Test: Apply 24 V DC without turning on the hydraulic pumps.
- LED Verification:
- Power LED: Solid Green.
- Status/Fault LED: Should be Off or Solid Green (depending on system state). A blinking Red light indicates a feedback loop error or communication timeout.
- Signal Injection: Use the PLC or a signal generator to send a small 0.5 V command. Verify the valve spool responds mechanically.
- Live Run: Start the pumps. Monitor the actuator position in the SCADA/HMI. Ensure there is no oscillation (hunting) or lag in response.

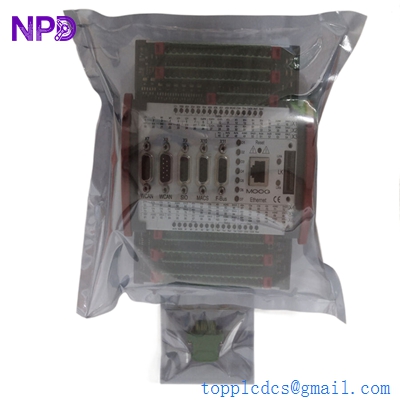

MOOG D136-001-007
Customer Cases & Industry Applications
Case 1: Emergency Repair for a Steel Hot Strip Mill
Situation: A major steel plant in Southeast Asia experienced a sudden failure on the hydraulic gauge control (HGC) system. The culprit was a malfunctioning MOOG D136-001-007.
Task: The failure caused the rollers to lock, stopping the entire production line. With downtime costs estimated at $15,000 per hour and the OEM quoting a 12-week lead time, the plant manager needed an immediate solution.
Action: We shipped a New Surplus unit via DHL Express within 4 hours of the inquiry. We provided the customer with the specific firmware version data to ensure it was compatible with their existing S7-400 PLC setup.
Result: The part arrived within 48 hours. The on-site engineer followed our installation guide, and the mill was back online in less than 3 days. Total saved costs exceeded $1.2 million compared to waiting for OEM factory production.
Case 2: Preventive Maintenance for a Hydroelectric Turbine
Situation: A hydroelectric power station utilized multiple D136 controllers for turbine blade pitch control. The units had been in service for over 12 years.
Task: During a scheduled overhaul, the technical team noticed “Lead Time Variability” in the global supply chain and decided to secure critical spares before any “Last-time-buy” announcements were made.
Action: We supplied three MOOG D136-001-007 units. Before shipping, each unit underwent a 24-hour burn-in test in our lab to ensure no “infant mortality” issues.
Result: The plant now holds strategic buffer stock. During a minor lightning strike six months later that fried one controller, they swapped it in 30 minutes, avoiding a multi-day blackout for the local grid.
Frequently Asked Questions (FAQ)
Q1: Can I use D136-001-007 to replace a D136-001-001? A: Not recommended. While they look identical, the suffix -007 denotes specific factory-set parameters or firmware versions tailored for specific valve dynamics. Using the wrong version can lead to instability or even mechanical damage to the hydraulic actuator. Always match the full model number.
Q2: Is this “New Surplus” really different from “New Factory”? A: In terms of hardware quality and performance, there is no difference. These are genuine MOOG products. “New Surplus” means they were purchased for projects but never installed, or held as spare stock by other facilities. We provide a 1-year warranty, which is often longer than what the factory offers for older “Obsolete” stock.
Q3: Does this module require proprietary software for configuration? A: Basic configuration can often be done via DIP switches. However, for advanced tuning, you may need the Moog Configuration Software (via RS-232). If you don’t have the software, ensure your DIP switches are identical to the failed unit.
Q4: What if the Status LED is blinking Red after installation? A: This is usually a “Feedback Fault.” In my experience, 90% of the time it’s an incorrectly wired LVDT or a loose shield ground. Check the feedback voltage at the terminals; if it’s out of the expected 0.5V–4.5V range, the controller will trigger a safety shutdown.
Q5: How do I know this isn’t a refurbished unit? A: We prioritize transparency. You can inspect the terminal blocks for screw marks and the connector pins for insertion wear. Our units come in original anti-static packaging with factory labels. We can provide high-res photos and serial numbers for factory verification before you pay.
