Description
- Model: 16407-01-1
- Brand: Moore Products (Siemens APACS+)
- Series: APACS+ / QUADLOG Control Systems
- Core Function: I/O Module Interface for process control and safety systems
- Product Type: I/O Communication Interface
- Key Specs: Multi-channel support | Redundant bus capability | Rail-mounted
- Input Voltage: 24 V DC (System Power)
- Module Type: Standard I/O Interface
- Mounting: APACS+ MODULRAC or specific I/O carrier
- Bus Communication: MODULBUS (Redundant)
- Operating Temperature: 0 to 60 °C (32 to 140 °F)
- Humidity: 5% to 95% (Non-condensing)
- Isolation: Galvanic isolation between field and logic
- Diagnostics: Per-channel status reporting and module health LED
- Compliance: CE, UL, and FM Class I, Div 2

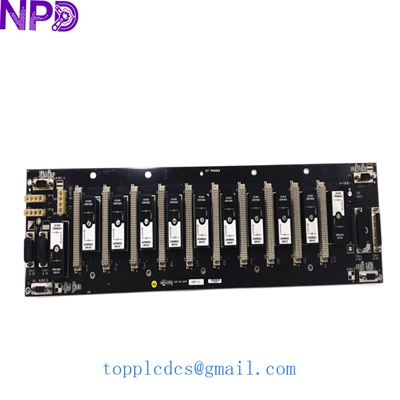

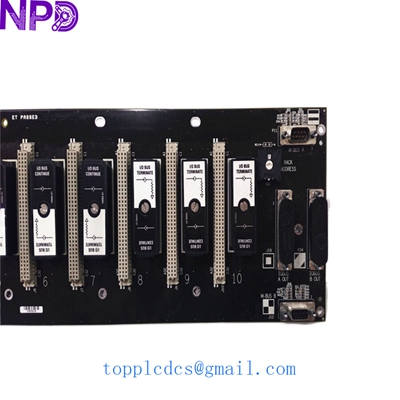

MOORE 16407-1-1
Application Scenarios & Pain Points
In the world of legacy systems, the APACS+ platform is still the backbone of many older chemical and power plants. The 16407-01-1 interface module is critical because it acts as the gateway between your field instruments and the process controller. When these modules fail—often due to power surges or component aging after 20+ years of service—you lose the ability to read or control an entire bank of I/O. Since Siemens has moved toward the PCS7 platform, finding these original Moore parts in “New Surplus” condition is the only way for many engineers to avoid a multi-million dollar full-system migration.
Typical Application Scenarios:
- Chemical Batching: Interface for analog sensors monitoring pressure and flow in reactor vessels.
- Power Plant Retrofits: Maintaining existing turbine control loops that rely on QUADLOG safety-certified hardware.
- Oil & Gas Refineries: Distributed I/O setups where 16407-01-1 modules are used in remote marshaling cabinets.
- Legacy System Maintenance: Keeping critical safety instrumented systems (SIS) operational without changing the proven logic.
Case Study: The “Zero-Downtime” Requirement
Background: A major pulp and paper mill was running their boiler control on a Moore APACS+ system. During a routine inspection, they found one 16407-01-1 interface module was intermittently dropping its redundant bus connection.
Problem: A total failure of this interface would have tripped the boiler. The mill manager refused a system shutdown for a migration, so they needed a direct replacement module that could be swapped under live conditions.
Solution: We provided a tested 16407-01-1 from our newplcdcs inventory. Our unit had undergone a full loop-back test and communication handshake verification before shipping.
Result: The site engineer was able to swap the module during a scheduled “quiet” period. The redundancy was restored immediately, and the plant avoided a $200,000 unplanned outage.

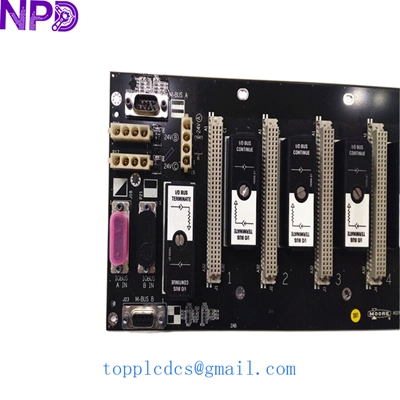

MOORE 16407-1-1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevant to this Module? | Quick Check | Action |
| Status LED is OFF | Power Supply Failure | ⚠️ Medium | Measure 24V at the backplane | Check system power supply |
| MODULBUS Alarm | Bus Interface Fault | ✅ High | Check redundant cable seating | Replace 16407-01-1 |
| I/O Point Error | Field Wiring / Internal Relay | ⚠️ Medium | Check field voltage at terminals | If field power is OK, replace module |
| Intermittent Comms | Backplane Corrosion | ✅ High | Inspect gold pins on the module | Clean pins or replace unit |
Technical “Pro-Tips” (Avoiding Common Pitfalls)
When you are dealing with Moore APACS+ hardware like the 16407-01-1, you have to be careful with the backplane connectors. These modules are built like tanks, but the connector pins are their “Achilles’ heel.”
- Alignment is Everything: I have seen technicians force a module into the MODULRAC and bend the pins on the backplane. If it doesn’t slide in like butter, pull it back out and check your alignment.
- Redundancy Check: If you are using this in a redundant configuration, ensure your “Redundant Bus” cables are clipped in tight. A loose clip can cause the system to alternate between “Active” and “Standby” rapidly, which can lead to CPU overhead issues.
- Heat Management: Even though these are rated for 60 °C, running them in a non-ventilated cabinet will drastically shorten the life of the internal capacitors. If your cabinet is hot to the touch, add a fan before you install your new spare.
❗ Warning: Always check your “Module Type” settings in the 4-mation configuration software before swapping. If the software expects a different revision, the module might not initialize correctly.
