Product Description

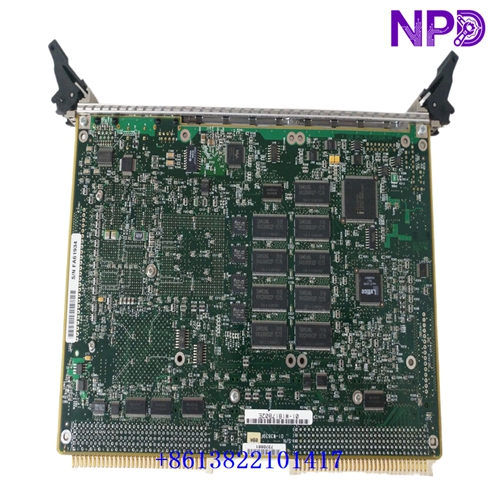

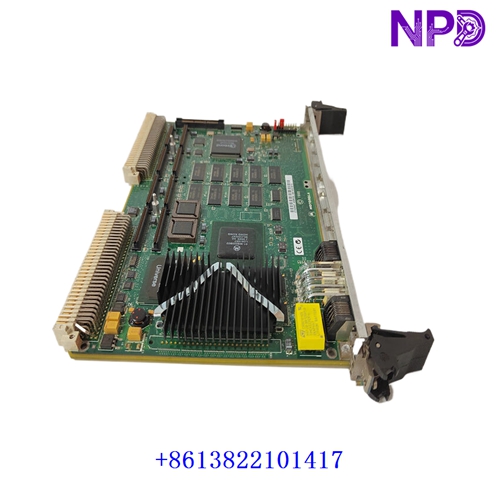

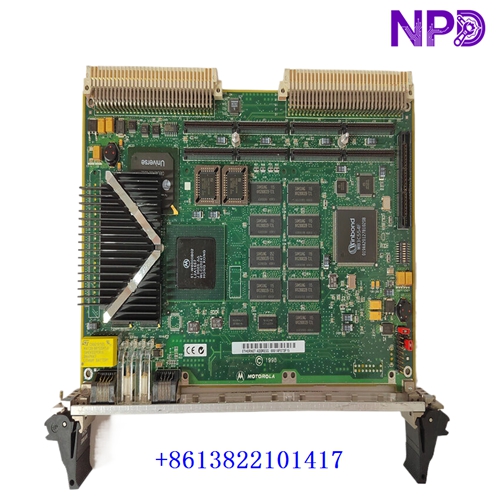

The Motorola MVME2434 is a high-performance embedded single-board computer in the MVME2400 series, designed for industrial computing, real-time control, telecommunications, and data acquisition systems. It uses a 350 MHz PowerPC 750 processor with 256 MB of ECC SDRAM in the standard MVME2434-1 and MVME2434-3 configurations. The board features a 6U VMEbus form factor, onboard cache and Flash memory, Ethernet connectivity, and two PMC expansion sites for application-specific I/O or communication functions. It is suitable for legacy embedded systems that require VMEbus integration and dependable real-time processing.
MVME2434
Product Parameters and Datasheet
Brand: Motorola
Model: MVME2434
Series: MVME2400
Product Name: VMEbus Single-Board Computer
Product Type: Embedded VME Processor Module
Processor: PowerPC 750 (MPC750), 350 MHz
Architecture: 32-bit RISC
L1 Cache: 32 KB instruction + 32 KB data
L2 Cache: 1 MB backside cache
Memory: 256 MB ECC SDRAM for standard MVME2434-1/-3 configurations
Flash Memory: 8 MB onboard Flash; exact configuration may vary
Form Factor: 6U VMEbus
Expansion: Two PMC expansion slots
Ethernet: 10/100 Mbps Ethernet
Serial Interface: Onboard asynchronous serial debug port; additional interfaces depend on board configuration
VMEbus Interface: VMEbus-compatible processor module
NVRAM: 8K × 8 NVRAM with time-of-day clock and replaceable battery backup
Diagnostics: Onboard debug monitor and self-test diagnostics
Power Requirements: Supplied through the VMEbus backplane; verify rack power specifications
Dimensions: Standard 6U VME board format; verify the mechanical drawing
Weight: Not confirmed
Place of Manufacture: Not confirmed for the individual unit
Product Status: Legacy product; confirm availability and condition with supplier
Country of Origin: Verify the board label and shipping documentation
Discontinued: Confirm current lifecycle status with the supplier
Recommended Motorola / Emerson Models
1. MVME2431 – 350 MHz PowerPC 750 VME processor module with 32 MB ECC SDRAM.
2. MVME2432 – 350 MHz PowerPC 750 VME processor module with 64 MB ECC SDRAM.
3. MVME2433 – 350 MHz PowerPC 750 VME processor module with 128 MB ECC SDRAM.
4. MVME2434-1 – 256 MB ECC SDRAM version with Scanbe-style front panel.
5. MVME2434-3 – 256 MB ECC SDRAM version with IEEE-style front panel.
6. MVME2401 – MVME2400-series VME processor module with 233 MHz PowerPC 750.
7. MVME2402 – VME processor module with 233 MHz PowerPC 750; memory configuration varies by version.
8. MVME2403 – MVME2400-series VME processor module.
9. MVME2400-0323 – 450 MHz PowerPC 750 VME processor module with 32 MB ECC SDRAM.
10. MVME2400-0333 – 450 MHz PowerPC 750 VME processor module with 64 MB ECC SDRAM.
11. MVME2400-0343 – 450 MHz PowerPC 750 VME processor module with 128 MB ECC SDRAM.
12. MVME2400-0353 – 450 MHz PowerPC 750 VME processor module; verify the memory configuration.
13. MVME2400-0363 – 450 MHz PowerPC 750 VME processor module; verify the memory configuration.
14. MVME5100 – Motorola PowerPC VMEbus single-board computer.
15. MVME5500 – Motorola PowerPC VMEbus single-board computer.
Compatibility Note: Confirm the complete model suffix (-1 or -3), front-panel and handle style, memory configuration, PMC modules, operating system, and VME chassis requirements before replacing the board. Related MVME models are not automatically drop-in replacements.
