Description
Product Overview
The MOTOROLA MVME5500 is a high-performance VMEbus single-board computer (SBC) designed for demanding industrial, defense, and embedded control applications. Built around the PowerPC™ architecture, it delivers strong processing capability, long-term reliability, and excellent I/O expandability. The MVME5500 is widely used in real-time control, data acquisition, and mission-critical automation systems where stability and deterministic performance are essential.

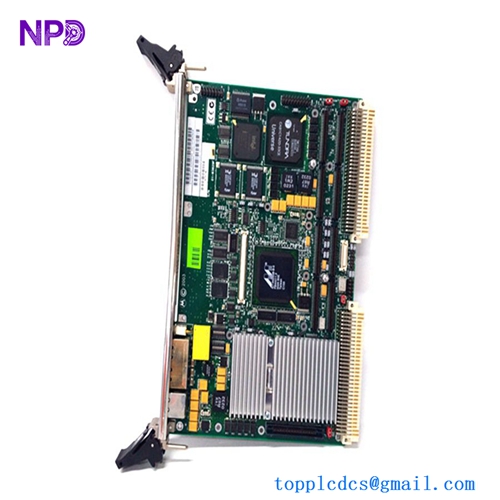

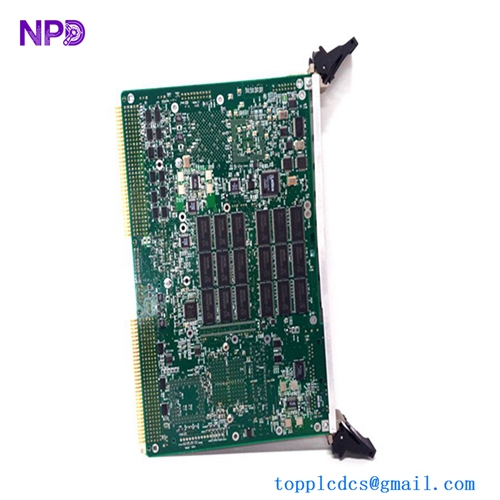

MOTOROLA MVME5500
Product Parameters
- Model: MVME5500
- Product Type: VME Single-Board Computer
- Processor: PowerPC™ MPC7457 / MPC7447A (configuration dependent)
- CPU Frequency: Up to 1.0 GHz
- System Bus: VME64 / VME64x
- Memory:
- DDR SDRAM, up to 2 GB
- Flash memory for firmware and boot code
- Ethernet: Dual 10/100/1000Base-T ports
- Serial Interfaces: Multiple RS-232/RS-422 ports
- USB: USB 2.0 support
- Expansion: PMC / PrPMC slots (configuration dependent)
- Operating Temperature: Industrial grade range (variant dependent)
- Form Factor: 6U VME
Product Datasheet (Key Technical Data)
| Item | Specification |
|---|---|
| Architecture | PowerPC™ |
| CPU Core | MPC7457 / MPC7447A |
| Max Clock Speed | 1.0 GHz |
| Memory Type | DDR SDRAM |
| Max Memory Capacity | 2 GB |
| Ethernet | 2 × Gigabit Ethernet |
| Serial I/O | RS-232 / RS-422 |
| USB | USB 2.0 |
| VME Interface | VME64 / VME64x |
| Expansion Slots | PMC / PrPMC |
| Board Size | 6U |
| Cooling | Conduction or air-cooled (variant dependent) |
Country of Origin
- Original Manufacturer: Motorola Computer Group
- Country of Origin: United States
Product Technical Description
The MVME5500 integrates a high-speed PowerPC processor with advanced memory architecture and rich I/O capabilities. Its VME64x interface ensures compatibility with legacy and modern VME systems while providing high data throughput and reliable backplane communication.
Designed for long operational life, the board supports real-time operating systems and embedded Linux environments. With dual Gigabit Ethernet, PMC expansion, and robust industrial-grade components, the MVME5500 is well suited for applications requiring deterministic control, fast data handling, and continuous operation in harsh environments.
Frequently Asked Questions (Q&A)
Q1: What operating systems are supported by the MVME5500?
A1: It supports various real-time operating systems and embedded Linux distributions, depending on system configuration.
Q2: Is the MVME5500 compatible with older VME systems?
A2: Yes. It supports VME64 and VME64x, ensuring backward compatibility with legacy VME infrastructures.
Q3: Can the memory be expanded?
A3: Memory capacity depends on board configuration and installed modules, with support up to 2 GB.
Q4: What applications typically use the MVME5500?
A4: It is commonly used in industrial automation, defense systems, telecommunications, and real-time data acquisition.
Q5: Does the board support expansion modules?
A5: Yes. PMC and PrPMC expansion slots allow additional I/O or specialized functions.
