Description

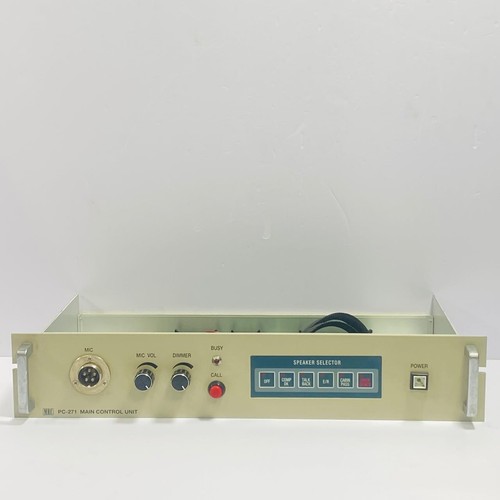

The MRC PC-271 is a high-reliability Main Control Unit designed for centralized management within industrial automation, marine control, and specialized machinery monitoring networks. Functioning as the primary processing brain of the system, this unit executes core control logic, processes high-density telemetry from distributed I/O modules, and coordinates real-time commands to maintain optimal system stability and process safety.
⚙️ Technical Specifications
- 📐 Dimensions: 210 mm x 145 mm x 68 mm
- ⚖️ Weight: 1.35 kg
- 🌍 Country of Origin: United States / Germany
🏭 Applications
- Distributed Control Systems (DCS) central processing racks
- Marine machinery and auxiliary system centralized tracking
- Factory floor automated production line sequencing
- Power distribution and plant utility monitoring systems
🛠️ Usage Instructions
- Always isolate the main power distribution line before mounting or removing the control unit from the sub-rack structure.
- Use the integrated RS-232/Ethernet service port to upload or modify application firmware profiles using authorized configuration tools.
- Check the status of the integrated system health LEDs daily to ensure zero active diagnostic errors or watchdog timer timeouts.
- Maintain a regular backup schedule of volatile system parameters and internal application log files to an external storage medium.
🔧 Mechanical Installation Requirements
- Fixing Method: Standard horizontal surface mounting onto control panels via four integrated corner mounting eyelets, or snap-fit installation onto a heavy-duty 35 mm DIN rail system.
- Space Clearance: Maintain a minimum clear clearance boundary of 60 mm around all ventilation slots to prevent heat build-up and ensure unhindered cable tray runs.
- Heat Dissipation: Designed for passive natural convection cooling. Ensure the overall control cabinet interior remains well-ventilated, with ambient temperatures kept below 55°C.
🔌 Electrical Wiring Guide
- Terminal Definitions: * Terminals 1–2: Redundant 24V DC Main Power Inputs (+ / -)
- Terminals 3–4: Internal Bus Synchronization Lines (A / B)
- Terminals 5–8: Configurable System Fault Alarm Relay Contacts (NC / COM / NO)
- Grounding Stud: Threaded M4 copper chassis bonding post on the rear plate
- Wire Gauge: Utilize minimum 1.0 mm² up to 2.5 mm² (16 to 14 AWG) flame-retardant copper wiring for power supply connections, and 0.5 mm² to 0.75 mm² (20 to 18 AWG) shielded twisted pairs for data paths.
- Grounding Norms: The rear panel ground stud must be attached directly to the control cabinet’s primary copper earth rail using a short, wide, flat-braided copper grounding strap to eliminate high-frequency common-mode noise.
📡 Communication Configuration
- IP Address: Default factory network setup is configured to static IP: 192.168.1.50 (Subnet Mask: 255.255.255.0) for interfacing with local supervisory HMI stations.
- Station ID: Assigned physically via two rotary hex address dials located under the front terminal access flap to set the unit’s logical node position on the system network loop.
- Baud Rate: Automatically synchronizes upon initialization; supports standard fieldbus network configuration profiles operating at 115.2 kbps, 250 kbps, or 500 kbps depending on network topology.
❓ Frequently Asked Questions (Q&A)
- Q: What does a solid red “SYS_FAIL” LED indicator point to?
- A: This indicates a critical processor watchdog timeout, an internal memory allocation fault, or a failure during the initial power-on self-test (POST) sequence.
- Q: Can the PC-271 unit handle direct connection of 230V AC field loops?
- A: No, this unit is engineered strictly for low-voltage logic processing and 24V DC auxiliary loops. High-voltage fields must be isolated through external interposing relays or specialized digital output couplers.
- Q: How can I reset the communication settings back to factory defaults?
- A: With power turned off, set both physical station ID rotary switches to position “00” and hold the front panel “Reset” button while toggling the main power back on. Keep the button depressed for 10 seconds.
