Description

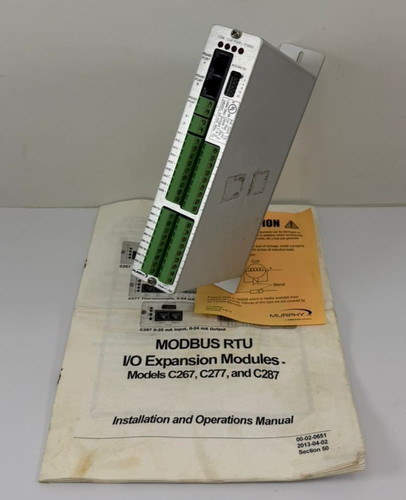

The Murphy C277 (Part Number 50701936) is an industrial Thermocouple Input Expansion Module designed to work seamlessly with the Murphy PowerView™ and controller product families. This module provides a reliable way to expand the analog input capacity of a control system, specifically for monitoring multiple temperature points. It is frequently deployed in demanding environments such as generator sets, pump packages, and compressor skids where accurate temperature feedback is required for engine and process protection.
Key Technical Specifications
- Module Function: Expands controller I/O by providing multiple dedicated thermocouple inputs.
- Input Type: Supports various standard thermocouple types (e.g., J, K, T, E) for wide-ranging temperature measurement.
- Compatibility: Integrates with Murphy control panels (such as the PV350, PV450, or PV780) via a high-speed communication link (typically CAN bus).
- Isolation: Built-in signal isolation to protect against electrical noise and ground loops common in engine environments.
- Environmental Rating: Industrial-grade ruggedization; designed to withstand high vibration, heat, and moisture.
- Communication Protocol: Utilizes standardized CAN protocol for easy integration and addressing within the control network.
- Status Indicators: Includes diagnostic LEDs to confirm module communication status and input health.
- Installation: Compact footprint allows for easy mounting within standard control cabinets or on-engine enclosures.
- Certification: UL/cUL listed for safety and compliance in hazardous and non-hazardous industrial locations.
- Scalability: Multiple C277 modules can often be networked to accommodate large-scale monitoring requirements.
Integration and Application
The C277 module acts as a remote data acquisition point, converting raw thermocouple millivolt signals into digitized, linearized temperature data for the main controller. Its primary roles include:
- Engine Monitoring: Measuring exhaust gas temperatures (EGT) on individual cylinders.
- Process Protection: Monitoring cooling water, lubricating oil, or bearing temperatures.
- Data Reduction: Offloading the analog-to-digital conversion burden from the main CPU, ensuring consistent processing speeds for control logic.
Related Murphy / Enovation Controls Components
To build a complete engine management or protection system, the C277 module is frequently utilized with the following components:
- PV350 / PV450: PowerView displays/controllers that act as the master unit.
- J1939 CAN Harness: Standardized wiring for robust communication between modules.
- Thermocouple Probes: Type J/K sensors installed directly into engine exhaust ports or fluid lines.
- Murphy Magnetic Pickups: For engine speed and frequency sensing.
- Pressure Transducers: 4–20 mA sensors for oil and fuel pressure monitoring.
- I/O Expansion Boards: Additional modules for handling digital inputs or relay outputs.
- Power Distribution Blocks: For managing stable 12/24 VDC power to the module array.
- CAN Hubs/Splitters: Used to manage the topology of the communication network.
- Configuration Software: Tools used to map the C277 inputs to specific alarms or shutdown logic in the PowerView display.
- Vibration Sensors: Complementary protection sensors for detecting mechanical imbalances in rotating equipment.
