Description
Product Specifications
- Brand: NABTESCO (formerly Teijin Seiki)
- Model: EAR-120-RK01
- Series: EAR-120 Electronic Governor Actuator
- Type: DC Servo Motor Driven Actuator
- Input Voltage: 24V DC
- Torque Output: Nominal 12.0 N·m (Newton-meters)
- Rotation Angle: Maximum 50° to 70° (depending on linkage setup)
- Response Time: < 0.1 seconds for full stroke
- Protection Class: IP56 (Water-resistant for marine environments)
- Application: Fuel injection pump control for medium and large marine diesel engines

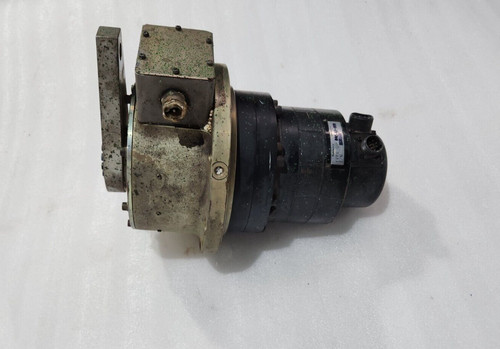

The NABTESCO EAR-120-RK01 is a high-precision electronic governor actuator designed specifically for the rigorous demands of marine propulsion and power generation. By utilizing a high-torque DC servo motor, it provides instantaneous and accurate positioning of the fuel rack in response to control signals from the main governor unit. This model is renowned for its durability against vibration and thermal stress, ensuring stable engine RPM and optimal fuel efficiency even during rapid load fluctuations on the open sea.
Key Differences from Similar Models
The EAR-120-RK01 is distinguished from the standard EAR-100 series by its higher rated torque output, specifically engineered for larger fuel racks that require greater mechanical force to move. Unlike the EAR-120-BK series, which often features different terminal block configurations, the RK01 variant typically utilizes a specialized connector set designed for compatibility with specific Japanese and European marine engine control architectures. Furthermore, the RK01 incorporates a specialized internal feedback potentiometer with higher resolution than legacy EAR models, allowing for finer “dead-band” tuning and reduced hunting during idle conditions.
Operational Tips
- Linkage Alignment: Ensure that the mechanical linkage between the actuator and the fuel rack is perfectly aligned; any binding or excessive friction will cause the actuator to draw high current and may trigger an “Overload” alarm.
- Potentiometer Maintenance: Periodically check the feedback signal stability via the governor controller’s diagnostic menu. If the signal “jitters” while the engine is at a steady state, the internal potentiometer may be worn and require cleaning or replacement.
- Waterproofing Integrity: Given its IP56 rating, ensure the cable gland is tightened and the housing seal is intact. Saltwater ingress into the motor housing is the primary cause of internal corrosion and winding failure in marine applications.
- Manual Override: In the event of a power failure, familiarize yourself with the manual control lever (if equipped). Always ensure the electronic control is powered down before attempting to manually manipulate the fuel rack to prevent damage to the servo gears.
