Description
Product Specifications
| Feature | Details |
|---|---|
| Brand | Nabtesco (formerly Teijin Seiki) |
| Model Number | NABTESCO ECL-201-01 (885 73760144) |
| Product Type | Main Control PCB / Electronic Control Unit |
| Application | Marine Engine Remote Control Systems / Propulsion Control |
| Country of Origin | Japan |
| Weight | Approx. 0.85 kg |
| Dimensions | 185mm x 140mm x 30mm |
| Power Supply | 24V DC Internal Bus |
| Component Rating | Marine Grade (High Vibration Resistance) |

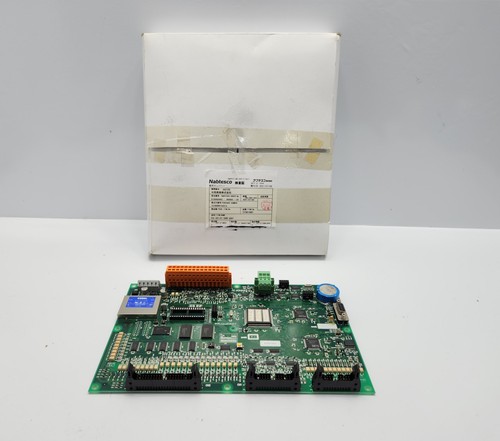

The NABTESCO ECL-201-01 is a specialized printed circuit board (PCB) designed for the M-800 series or similar marine engine remote control architectures. Functioning as a logic processing node, this card handles signal conversion between the bridge command levers and the engine-side actuators. Its precision circuitry is engineered to manage throttle positioning, clutch engagement, and system interlocking, providing the high-speed data processing required for safe and responsive vessel maneuvering in both commercial shipping and offshore applications.
Q&A: Product Common Issues & Solutions
Q: What is indicated by a “CPU Fail” or “System Error” LED on the ECL-201-01? A: This typically signifies a failure in the onboard logic processor or a corruption of the EEPROM data. First, check for stable 24V DC input at the terminal pins. If the power is clean but the error persists, the board may have suffered from a voltage surge, or the internal watchdog timer has permanently tripped, necessitating a board replacement or factory firmware re-flash.
Q: Why are the throttle output signals inconsistent or drifting? A: Signal drift is often caused by aging electrolytic capacitors or “cold” solder joints on the analog output stage of the PCB. In a marine environment, salt-air corrosion can also create parasitic resistance between the board traces. Cleaning the board with a specialized electronic solvent and inspecting the connector pins for oxidation is the first step in troubleshooting.
Q: Can the ECL-201-01 be interchanged with an ECL-201-02 model? A: Generally, no. While the physical dimensions may be identical, the “01” and “02” suffixes usually denote different I/O configurations or specific software mappings for different engine types (e.g., slow-speed vs. medium-speed engines). Using the incorrect revision can result in incorrect scaling of the 4-20mA control signals or a total failure of the safety interlock sequence.
