Description
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ECL-203-01 |
| Part Number | 885 73760143 |
| Device Type | Electronic Control Logic PCB |
| Origin | Japan |
| Weight | Approx. 0.35 kg |
| Dimensions | 180 mm x 120 mm x 15 mm |
| Input Voltage | 24V DC Internal Logic Power |
| Signal Type | Analog & Digital I/O |
| Mounting | Card Edge Connector for Rack/Chassis |
| Compatibility | Nabtesco Engine Remote Control Systems (M-800 Series) |

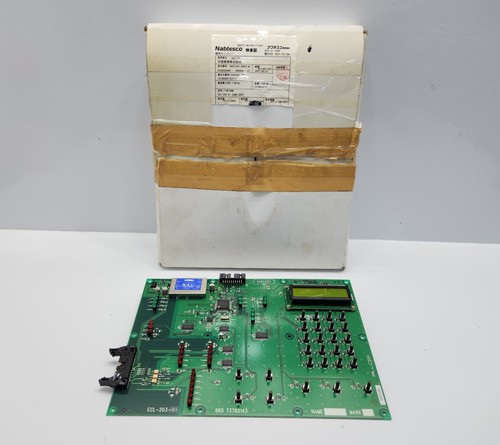

The NABTESCO ECL-203-01 is a high-precision electronic control card designed for marine engine remote control and governor systems. It processes critical command signals for engine speed, start/stop sequences, and safety interlocks, serving as a vital logic processing unit that translates bridge telegraph inputs into executable actuator movements. Built with marine-grade components, the 73760143 PCB is engineered to withstand the continuous vibration and thermal fluctuations common in engine room environments.
Product Q&A
Q: What is the main application for the Nabtesco ECL-203-01 card? A: This PCB is primarily used in the M-800-II and similar remote control systems for main engines on large vessels, handling the logic for speed setpoints and bridge-to-engine room communication.
Q: Can the ECL-203-01 be used as a standalone controller? A: No, it is a modular component designed to be inserted into a dedicated Nabtesco control rack or sub-chassis where it interacts with power supply and interface modules.
Q: How can I identify a failure in this specific PCB? A: Faults are typically indicated by “System Failure” alarms on the main control panel or status LEDs on the card itself. Common symptoms include a failure of the engine to respond to telegraph commands or intermittent signal loss in the governor link.
