1. Product Description

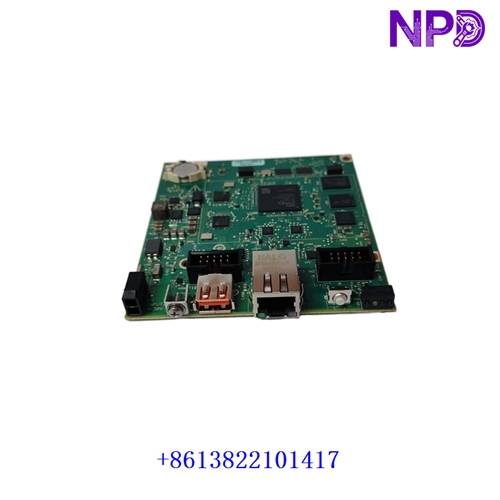

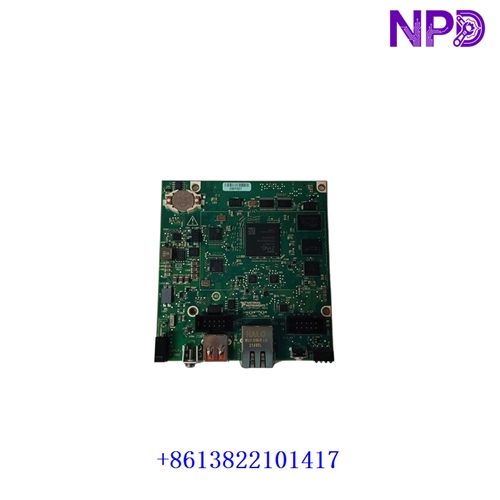

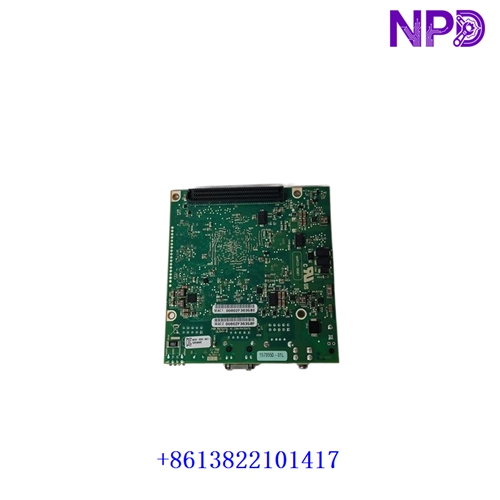

The National Instruments sbRIO-9607 is an embedded real-time controller that integrates a dual-core ARM processor, a reconfigurable FPGA, memory, and digital I/O on a single printed circuit board. It runs NI Linux Real-Time and uses the Xilinx Zynq-7020 system-on-chip to support deterministic control, signal processing, and industrial automation applications. With a RIO Mezzanine Card (RMC) connector, Ethernet, CAN, serial interfaces, USB, and 96 bidirectional 3.3 V digital I/O lines, it is suitable for OEM equipment, test systems, machine control, and custom embedded monitoring solutions. Development typically uses LabVIEW Real-Time and LabVIEW FPGA tools.
sbRIO-9607
2. Product Parameters and Datasheet
• Brand: National Instruments (NI)
• Model: sbRIO-9607
• Part Numbers: 783816-01 (Development Kit), 783816-02 (OEM Kit), 784877-02 (Conformal-Coated Variant)
• Series: Single-Board RIO / CompactRIO
• Product Name: Embedded Real-Time Controller with FPGA
• Processor: Dual-Core ARM Cortex-A9
• Processor Speed: 667 MHz
• FPGA: Xilinx Zynq-7000 XC7Z020
• Operating System: NI Linux Real-Time, 32-bit
• DRAM: 512 MB (standard configuration)
• Nonvolatile Storage: 512 MB (standard configuration)
• Digital I/O: 96 bidirectional 3.3 V lines
• Ethernet: 2 ports, supporting 10/100/1000Base-T subject to hardware revision and operating conditions
• CAN: 1 onboard high-speed CAN interface, up to 1 Mbps
• Serial Interfaces: Onboard RS-232; additional RS-232 and RS-485 interfaces available through the RMC/FPGA I/O
• USB: Onboard USB interface; verify connector and function for the hardware revision
• RMC Connector: Supported
• Operating Temperature: -40°C to +85°C
• Power Requirements: Depends on the exact board and kit configuration; consult the NI hardware specifications
• Place of Manufacture: Verify from the product label
• Product Status: Mature; not recommended for new designs by NI
• Dimensions: Refer to the official dimensional drawing for the exact board revision
• Weight: Depends on the board or kit configuration
• Country of Origin: Check product label or shipping documents
• Discontinued: NI lists the product as mature and identifies the sbRIO-9603 as a recommended replacement; verify replacement suitability before migration
3. Recommended NI Models
• sbRIO-9603 — Embedded controller with newer processor and FPGA platform
• sbRIO-9627 — Single-Board RIO controller with analog and digital I/O
• sbRIO-9637 — Single-Board RIO controller with integrated I/O
• sbRIO-9606 — Embedded real-time controller
• sbRIO-9608 — Single-Board RIO controller
• sbRIO-9609 — Single-Board RIO controller
• sbRIO-9626 — Single-Board RIO controller
• sbRIO-9636 — Single-Board RIO controller
• sbRIO-9638 — Single-Board RIO controller
• sbRIO-9651 — CompactRIO System on Module
• NI-9694 — Digital I/O breakout RMC accessory
• NI-9862 — C Series CAN interface module
• NI-9860 — C Series high-speed CAN interface module
• NI-9870 — C Series serial interface module
• NI-9871 — C Series serial interface module
