Description
Product Overview
The Norcontrol NA1116.1 Operator Panel PCB Card is a marine automation interface board designed for compatible Norcontrol AC4/AC7 control systems. Identified by part number HA220862B/B/B and EM No. AU-449, this board is used within the operator panel assembly to support operator-interface functions in shipboard automation equipment.
It is suitable for marine engine control, machinery monitoring, and maintenance of legacy Norcontrol automation systems. When sourcing a replacement, verify the full part number, board revision, connector layout, and installed system configuration. Similar-looking boards with different suffixes may not be interchangeable.

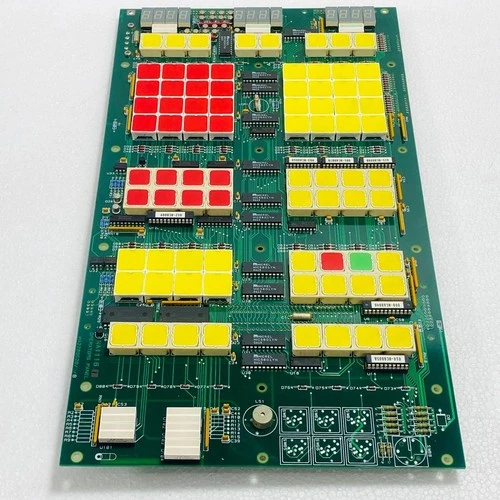

Norcontrol NA1116.1
Key Features
- Brand: Norcontrol
- Model: NA1116.1
- Part Number: HA220862B/B/B
- Product Type: AC4/AC7 Operator Panel PCB Card
- EM Number: AU-449
- Revision Reference: Rev. K appears in related listings; verify the actual board
- Application: Marine automation and control systems
- Primary Function: Operator-panel interface functions
- Typical Use: Marine engine monitoring and control
- Maintenance Application: Replacement and servicing of compatible legacy equipment
Datasheet
| Parameter | Details |
|---|---|
| Brand | Norcontrol |
| Model | NA1116.1 |
| Series | AC4/AC7 |
| Product Name | Operator Panel PCB Card |
| Part Number | HA220862B/B/B |
| EM Number | AU-449 |
| Board Revision | Verify actual unit; Rev. K appears in related listings |
| Place of Manufacture / Origin | Not confirmed |
| Product Status | Depends on the specific seller listing |
| Dimensions | Not confirmed |
| Weight | Approximately 780–790 g, according to related listings |
| Country of Origin | Not confirmed for the specific unit |
| Power Requirements | Not confirmed |
| Discontinued | Not confirmed |
Frequently Asked Questions
Q1: What is the Norcontrol NA1116.1?
A: It is an operator panel PCB card designed for compatible Norcontrol AC4/AC7 marine automation systems.
Q2: What is the part number?
A: The listed part number is HA220862B/B/B, with EM No. AU-449 also associated with this board.
Q3: What is the board used for?
A: It supports operator-interface functions within a compatible marine control panel. Exact button, indicator, and interface functions depend on the panel configuration.
Q4: Is the NA1116.1 compatible with all AC4/AC7 systems?
A: Compatibility should be confirmed against the installed system and original board revision before ordering.
Q5: Are the HA220862A and HA220862B variants interchangeable?
A: Interchangeability is not confirmed. Compare the full part number, suffix, revision, and connector layout before substituting one version for another.
Q6: What are the electrical specifications?
A: The supply voltage, current consumption, and electrical interface specifications have not been confirmed. Consult the relevant Norcontrol system documentation.
Q7: What should I check before purchasing?
A: Verify the NA1116.1 marking, HA220862B/B/B part number, revision, connector condition, and compatibility with your existing AC4/AC7 panel.
Q8: Who should install this PCB?
A: A qualified marine automation technician should carry out replacement and operational testing according to the vessel’s maintenance procedures.
Related Products and Equipment Categories
The following models and categories are useful for Norcontrol marine automation spare-parts sourcing. They are reference items, not guaranteed direct replacements for the NA1116.1.
- Norcontrol NA1116.1 — AC4/AC7 Operator Panel PCB
- Norcontrol HA220862A/A — Operator Panel Variant
- Norcontrol HA220862B/B/B — Operator Panel PCB
- Norcontrol AC4 — Marine Automation Control System
- Norcontrol AC7 — Marine Automation Control System
- Norcontrol NA-1E220.1 — Single Board CPU PCB
- Norcontrol HER Series — Processor and Interface Cards
- Norcontrol Marine Operator Panels
- Norcontrol Engine Monitoring Modules
- Norcontrol Digital Input Modules
- Norcontrol Digital Output Modules
- Norcontrol Analog Input Modules
- Norcontrol Analog Output Modules
- Norcontrol Marine Communication Interface Boards
- Kongsberg Maritime Marine Automation Spare Parts
