Description

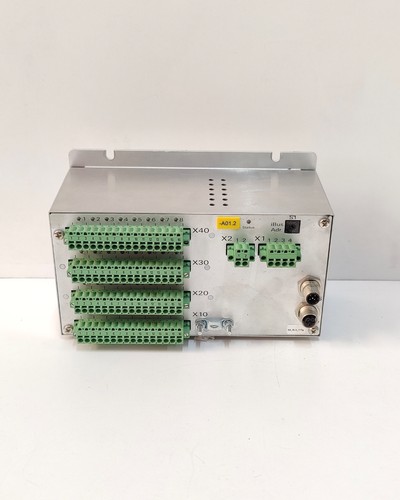

The Noris N3000-ISC-202-01 is a high-performance Intelligent Signal Controller (ISC) module from the Norisys 3000 series. Designed specifically for the rigorous demands of the marine industry (often found on CAT/MAK engine management systems), this module acts as a decentralized automation node. It is responsible for data acquisition, complex signal processing, and local control logic for shipboard propulsion and auxiliary engines.
In a Norisys 3000 architecture, this module gathers data from pressure, temperature, and speed sensors and communicates that information via the CAN bus to the central monitoring and alarm system (MAS).
Key Technical Specifications
| Parameter | Value/Description |
| Model | N3000-ISC-202-01 |
| Series | Norisys 3000 |
| Function | Intelligent Signal Controller (I/O & Processing) |
| Compatibility | Caterpillar/MAK marine engine control systems |
| Communication | CAN Bus (Nauticbus or standard CANopen) |
| Inputs/Outputs | Configurable analog/digital I/O channels |
| Operating Voltage | 18V – 32V DC |
| Mounting | DIN-rail / Control cabinet panel |
| Approvals | Marine Classification Society Type Approvals (DNV, GL, LR, etc.) |
Common Integration & Troubleshooting
- Module Addressing: The ISC-202-01 is part of a networked system. When replacing this unit, the Node ID (address) must be set correctly, usually via internal DIP switches or through the service software, to ensure it communicates correctly with the central processing unit (CPU).
- Sensor Calibration: The module often performs signal conditioning. If you notice a “Sensor Deviation” alarm, verify that the scaling parameters (4-20mA or PT100 settings) in your configuration file match the physical sensors connected to the module.
- Firmware Compatibility: The N3000 series uses specific firmware builds for different engine types. Always check that the firmware version on the replacement card matches the original, as a mismatch can result in “Communication Timeout” or “Controller Logic Error” warnings on the bridge HMI.
Important Technical Note: The N3000-ISC-202-01 is a critical automation component. Before swapping, ensure you have a backup of the Norisys configuration project (typically stored as a
.ncfgor similar project file). Simply plugging in a new module will not restore functionality if the module has not been programmed with the site-specific I/O mapping and alarm logic for your specific CAT/MAK engine installation.
