Description
The Nyquist IOB-80 is a high-density Input/Output Interface Board designed for large-scale industrial automation and data acquisition systems. It serves as a central hub for managing a high volume of digital signals, allowing a single controller or PC-based system to interface with up to 80 individual field devices.
Product Parameters (Datasheet)
- Model Number: IOB-80
- Manufacturer: Nyquist (now part of the Bosch Rexroth / Indramat ecosystem)
- Total I/O Count: 80 Channels
- Interface Type: Digital (Configurable as Inputs or Outputs)
- Connector Type: High-density ribbon cable or D-Sub connectors (depending on revision)
- Signal Voltage: Typically 24V DC (Industrial standard)
- Current Per Output: 0.5A (Typical maximum for solid-state outputs)
- Isolation: Optically isolated channels to protect host electronics
- Mounting: Rack-mount or panel-mount chassis integration
- Communication: Interfaced via proprietary Nyquist bus or high-speed parallel link

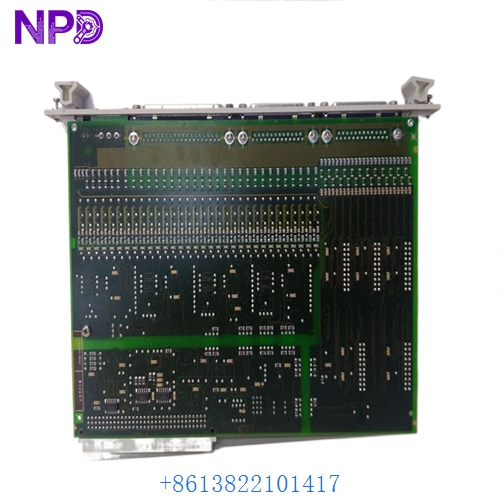

Philips NYQUIST IOB-80

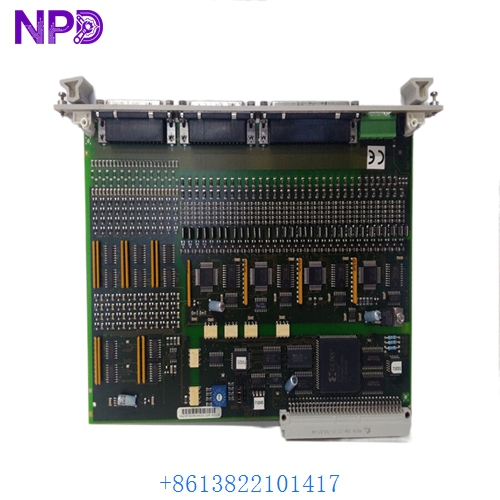

Philips NYQUIST IOB-80

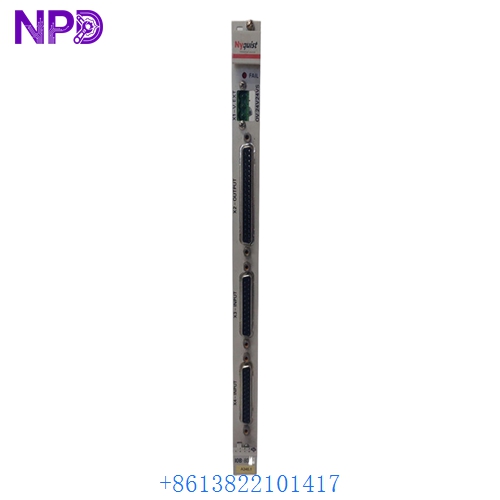

Philips NYQUIST IOB-80
Application Fields
The IOB-80 is engineered for environments where massive I/O density is required in a small footprint:
- Large-Scale Assembly Lines: Managing hundreds of proximity sensors, solenoids, and limit switches.
- Semiconductor Manufacturing: Interfacing with complex wafer-handling robotics and cleanroom sensors.
- Automated Storage and Retrieval Systems (AS/RS): Coordinating the movement and positioning of high-speed shuttle systems.
- Testing & Simulation Racks: Simulating massive sensor arrays for aerospace or automotive component testing.
- Packaging Plants: Synchronizing multiple stations of a high-speed bottling or labeling line.
Product Usage & Installation
- Backplane Integration: The IOB-80 is usually part of a modular rack system. Ensure the card is fully seated in the backplane before tightening the retention screws.
- Addressing: Configure the board’s base address using the onboard DIP switches or jumpers. This ensures the controller can uniquely identify the 80 points on the communication bus.
- Field Wiring: Due to the high density (80 points), it is highly recommended to use Remote Terminal Blocks connected via ribbon cables. This prevents “wiring spaghetti” and simplifies troubleshooting.
- Power Distribution: Provide a stable 24V DC field power supply. Ensure the common (ground) of the field power is correctly referenced to the IOB-80’s isolation circuit.
- Diagnostic Monitoring: Most IOB-80 units feature an array of LEDs or a status register accessible via software. Use these to verify that input signals are reaching the board before troubleshooting the software logic.
Product Technical Description
Technically, the IOB-80 is a multiplexed I/O expander. Rather than using 80 individual wires back to a processor, it uses high-speed shift registers or bus transceivers to “compress” the data. This allows 80 bits of information to be sent to the host controller over a much smaller number of data lines. The board features robust optical isolation, which means there is no direct electrical path between the sensitive control computer and the noisy, high-voltage field environment. This isolation prevents ground loops and protects the system from inductive spikes caused by switching motors or relays.
Q&A (Common Questions)
Q: Can I mix inputs and outputs on the same IOB-80? A: This depends on the specific hardware revision. Some IOB-80 boards are fixed (e.g., 40 In / 40 Out), while others allow “bit-wise” configuration via software. Consult your specific wiring diagram.
Q: What is the benefit of the IOB-80 over standard PLC modules? A: Density. A typical PLC module provides 8 or 16 points. The IOB-80 provides 80 points in a single board, significantly reducing the required rack space and cost per point.
Q: Is the IOB-80 compatible with modern Bosch Rexroth systems? A: Many legacy Nyquist components have transition paths to Indramat or Bosch Rexroth controls, but you may require a specialized bus adapter or gateway to communicate with modern Ethernet-based protocols.
Q: How do I detect a blown channel? A: Use a multimeter to check the voltage at the terminal block while the output is forced “ON” in the software. If the LED on the board is lit but there is no voltage at the terminal, the output transistor or a protective fuse may be damaged.
Similar Model Recommendations
- Nyquist IOB-16 / IOB-32: Lower density versions for smaller machine footprints.
- Nyquist AI-16: Analog input equivalent for sensors (4-20mA / 0-10V).
- Indramat RECO Series: The successor modular I/O system within the Bosch family.
- Nyquist CPU-80: The central processing unit often used to drive IOB series boards.
- Bosch Rexroth S20 Series: Modern IP20-rated modular I/O modules.
For technical manuals, terminal pinouts, or to check current stock for the Nyquist IOB-80, please contact our automation technical team.
