Description

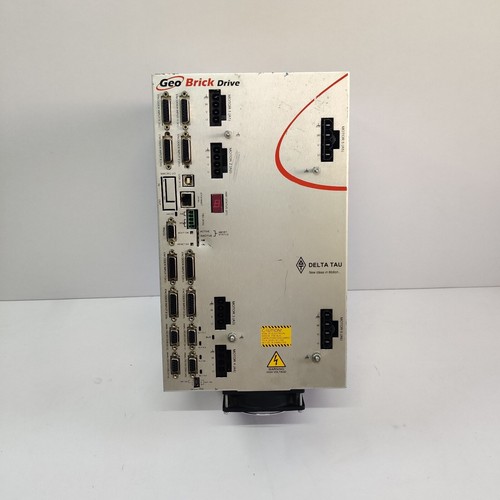

The Omron Delta Tau Geo Brick (GBL6-F3-5F2-13D8C600) is an integrated, high-performance motion controller and drive system. It combines the powerful Power PMAC motion control engine with high-speed digital amplifiers in a single, compact unit. This “all-in-one” solution is engineered for complex, multi-axis motion synchronization, such as high-speed machining, precision robotics, and intricate laser processing. By housing the control logic, feedback processing, and power amplification in one chassis, it drastically reduces wiring and footprint, making it ideal for high-precision industrial automation tasks.
Product Specifications
📍 Product Series: Geo Brick LV (Low Voltage)
⚖️ Weight: ~4.5 kg (Configuration dependent)
📏 Dimensions: 350 mm x 200 mm x 150 mm (Approx.)
🌍 Origin: USA / Japan
⚡ Input Voltage: 24–80 V DC (Typical LV model range)
🔄 Axes Capacity: Up to 8 axes (Module specific)
🛡️ Protection Class: IP20
🌡️ Operating Temp: 0°C to +45°C
🏗️ Mounting: Panel mount
🔌 Interface: EtherCAT / Powerlink / Modbus TCP / Dual Ethernet
Key Features and Functionality
- Integrated Power PMAC: Features the industry-standard Power PMAC controller, capable of running complex C, C++, and G-Code algorithms in real-time.
- High-Speed Loop Updates: Executes servo loops and commutation at extremely high frequencies, enabling sub-microsecond precision for motion profiling.
- Flexible Feedback: Supports a wide range of encoder interfaces (BiSS, EnDat, SSI, Sine/Cosine) for maximum compatibility with precision sensors.
- Distributed Control: Includes built-in interfaces for expansion, allowing it to act as a master in complex networked machine architectures.
Recommended Models in the Same Series
🔍 GBL6-F3-5F2-13D8C600-R: Factory-refurbished certified version.
🔍 GBL6-F3-4F2-10D4C500: 4-axis variant for simpler machine designs.
🔍 GBL6-F3-8F2-16D8C800: High-power variant for heavy-duty load handling.
🔍 ACC-5E3: Expansion board for additional I/O and analog connectivity.
🔍 Power PMAC-NC: Specialized version for multi-axis CNC machine control.
🔍 Geo Brick LV-Expansion: Secondary chassis for linked multi-axis expansion.
🔍 GBL6-F3-5F2-13D8C600-S: Version with reinforced cooling for high-duty cycle applications.
🔍 Delta Tau Clipper-Series: Smaller form-factor controller for space-constrained apps.
🔍 Geo Brick-EtherCAT-Slave: Configuration for slave operation in larger factory networks.
🔍 GBL6-Comm-Module: Add-on card for additional protocol support (Profinet/EtherNet/IP).
Understanding Motion Control Loops To fully utilize the Geo Brick, it is helpful to grasp how the controller manages motor movement. The controller continuously compares the command trajectory with real-time encoder feedback. By using a sophisticated PID filter supplemented by feedforward loops, it compensates for inertia, friction, and lag to ensure the motor follows the desired path with minimal error.
