Description
⚙️ Product Specifications
- Model: 2GK180K
- Gear Ratio: 180:1
- Frame Size: 60 mm (2.36 in.)
- Type: Parallel Shaft Gearhead
- Permissible Torque: 8 N·m (70 lb-in)
- Permissible Speed Range: 3.3 ~ 16.7 r/min (at 50/60 Hz)
- Direction of Rotation: Opposite to motor rotation
- Bearing Type: Ball Bearing
- Compatible Motor Series: 2IK series / 2RK series (6W motors)

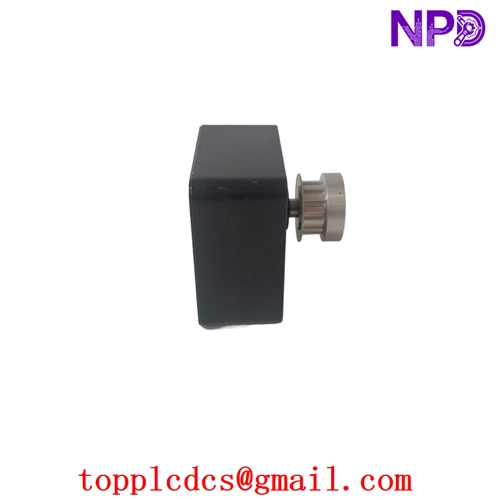

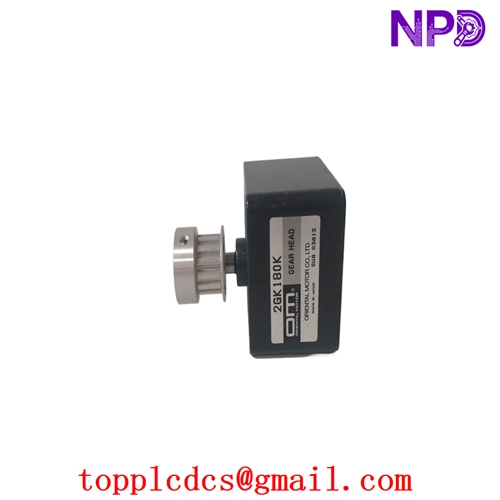

The 2GK180K is a high-precision parallel shaft gearhead engineered to provide substantial torque multiplication for 6W Oriental Motor units. By utilizing a 180:1 reduction ratio, it effectively converts high-speed motor rotation into controlled, high-torque output suitable for demanding industrial automation applications requiring slow-speed, high-force movement and reliable mechanical integration.
🔍 Differentiation from Similar Models
Unlike standard gearheads in the same frame size, the 2GK180K is specifically optimized for high-ratio reduction without compromising the efficiency of the 6W motor series. While other variants in the 2GK series (such as the 2GK3.6K or 2GK10K) provide faster output speeds, the 2GK180K is distinguished by its high torque density and mechanical durability when operating under constant load conditions, ensuring superior longevity in continuous-duty applications where precision positioning is critical.
🌟 Recommended Oriental Motor Series
- BLH Series (Brushless DC Motors)
- BLE2 Series (High-Efficiency BLDC)
- AZ Series (AlphaStep Absolute Sensor)
- AR Series (AlphaStep AC Input)
- US2 Series (AC Speed Control)
- MSC Series (Compact Linear Actuators)
- NX Series (High-Performance Servo)
- ASM Series (Stepper Motor/Driver)
- CVK Series (5-Phase Stepper)
- RKII Series (High-Performance Stepper)
