Description
The Pacific Scientific 6410-009-N-N-N is a high-performance, microstepping terminal-interface drive designed for the precise control of two-phase stepper motors. Part of the legendary 6400 series, this drive is known for its rugged industrial design, modular versatility, and patented Digital Electronic Damping technology, which eliminates mid-range instability and resonance issues common in stepper systems.

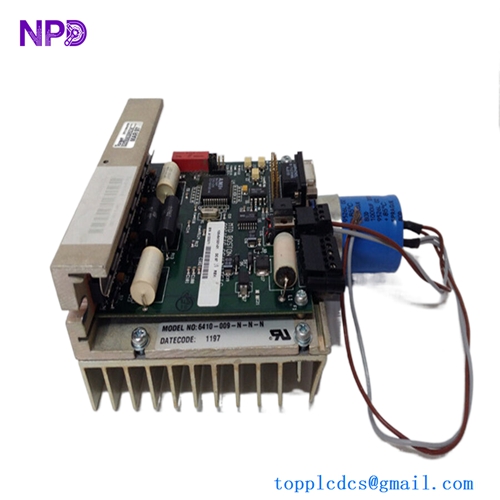

PACIFIC 6410-009-N-N-N
Technical Specifications & Parameters
The 6410-009-N-N-N is an AC-input drive that converts line power into high-frequency PWM (Pulse Width Modulation) current to drive stepper motors with extreme smoothness.
| Parameter | Specification |
| Model Number | 6410-009-N-N-N |
| Input Voltage | 90–135 VAC, Single Phase (50/60 Hz) |
| Output Current (Peak) | 5.0 Amps (Adjustable via internal switches) |
| Output Current (RMS) | 3.5 Amps |
| Step Resolution | Binary/Decimal (Up to 125 microsteps per full step) |
| Full Step Equivalent | 200 to 25,000 steps per revolution |
| Idle Current Reduction | 0%, 25%, 50%, or 75% (Selectable) |
| Control Interface | Step and Direction (Differential or Single-ended) |
| Protection | Over-voltage, Under-voltage, Short-circuit, Over-temperature |
Key Hardware Features
- Patented Digital Damping: Unlike standard drives, the 6410 uses an electronic feedback loop to sense motor back-EMF, providing active damping that allows the motor to utilize its full torque-speed curve without stalling at resonance points.
- Microstepping Precision: The drive can divide a standard 1.8° step into 125 microsteps, resulting in incredibly smooth low-speed movement and higher positioning resolution.
- Selectable Current Waveforms: Users can adjust the current waveform to match the specific inductance and resistance of various stepper motors, optimizing torque output and reducing motor heating.
- Modular “N-N-N” Configuration: The suffix denotes a standard unit without specialized factory options for cooling or connectors, designed for panel mounting within a standard industrial enclosure.
Product Datasheet Summary
- Power Stages: Employs high-efficiency MOSFET technology to minimize heat dissipation within the drive housing.
- Logic Compatibility: The step and direction inputs are optically isolated and compatible with 5V to 24V logic signals, making it easy to interface with PLCs and motion controllers.
- Dynamic Smoothing: Includes a user-selectable “Step Filter” that smooths out pulse bursts from lower-quality indexers to prevent motor jerk.
- Thermal Management: Features an internal heatsink. While the 6410-009 is naturally aspirated, it relies on the cabinet’s ambient airflow to maintain an operating temperature below 50∘C.
Country of Origin
The Pacific Scientific 6410-009-N-N-N was designed and manufactured in the United States of America (USA). Following the acquisition of Pacific Scientific by Danaher and subsequently Kollmorgen, these drives continue to be recognized as staples of American industrial motion control engineering.
Application Areas
The 6410-009 is used in applications requiring high torque at low speeds and precise open-loop positioning:
- Packaging Machinery: Labeling, filling, and capping stations where repeatability is critical.
- Medical Equipment: Automated liquid handling and laboratory diagnostic carousels.
- Semiconductor Manufacturing: Wafer handling and precision stages that must avoid mechanical vibrations.
- Printing and Textiles: Feeding mechanisms that require smooth, continuous motion to prevent material tearing.

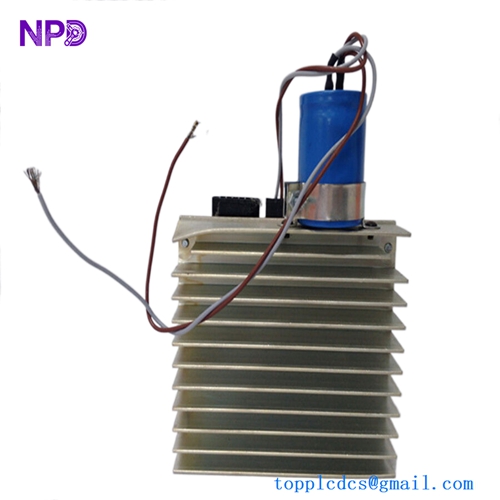

PACIFIC 6410-009-N-N-N
Product Usage Instructions
- Mounting:
- Install the drive vertically on a flat, unpainted metal surface to maximize heat transfer. Leave at least 2 inches of clearance above and below the unit.
- Wiring the Motor:
- Connect the two-phase stepper motor to the 4-pin motor terminal. Ensure the A/A! and B/B! phases are correctly identified to prevent reverse rotation or vibration.
- Setting the Current:
- Before applying power, set the internal DIP switches to match the motor’s rated current. Operating the drive at a current higher than the motor rating will lead to permanent thermal damage to the motor windings.
- Signal Interface:
- Connect the Step and Direction lines from your indexer or PLC. If using 24V logic, ensure the appropriate current-limiting resistors are used as per the 6400 series manual to protect the optoisolators.
- Power-Up:
- Apply 120 VAC to the L and N terminals. The “Power” LED should illuminate. If the “Fault” LED lights up, immediately disconnect power and check for short circuits in the motor wiring.
Recommended Related Pacific Scientific Models
For systems utilizing Pacific Scientific technology, the following models are frequently used as alternatives or complementary components:
- Pacific Scientific 6410-001-N-N-N: A low-voltage DC-input version (24-75 VDC) of the same drive series.
- Pacific Scientific 5240 / 5340: Earlier generations of stepper drives often found in legacy systems being upgraded to the 6410.
- Pacific Scientific POWERPAC Stepper Motors: Specifically the K or N series (e.g., K32, N41), which are optimized for use with the 6410’s current profiles.
- Pacific Scientific SCE900: A higher-end digital brushless servo drive for applications requiring closed-loop feedback.
- Pacific Scientific 6415: A high-current variant capable of providing up to 7.5 Amps of peak current for larger NEMA 34 and 42 frame motors.
