Description

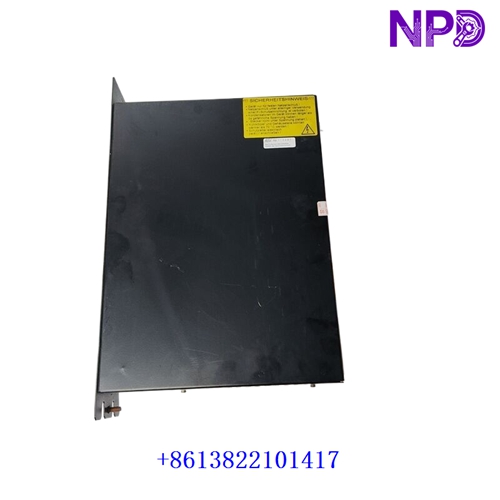

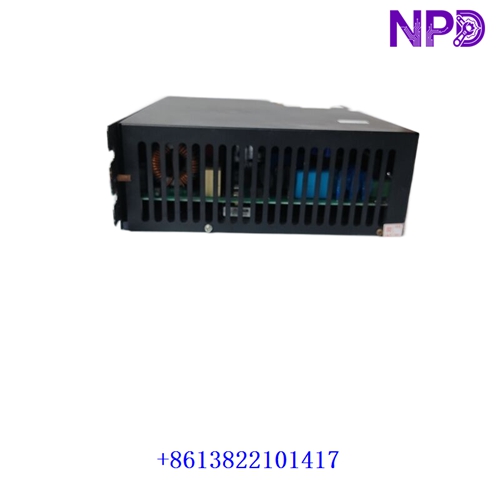

The Pacific Scientific SCE904AN-002-01 is an all-digital, high-performance servo drive belonging to the advanced SCE900 Series. Designed to manage precise position, velocity, and torque control for permanent-magnet brushless servomotors, it features an IGBT pulse-width modulation (PWM) power stage, digital resolver-to-digital conversion, and autotuning capabilities.
| Parameter | Specification |
| Brand / Manufacturer | Pacific Scientific / Danaher Motion (Kollmorgen heritage) |
| Model / Part Number | SCE904AN-002-01 |
| Product Type | High-Performance Digital Servo Drive (SCE900 Series) |
| Continuous Output Current | 7.5 A to 10.6 A (depending on thermal and ambient conditions) |
| Peak Output Current | 15.0 A to 21.2 A |
| AC Bus Input Voltage | High-voltage range (180 to 528 VAC nominal system compatibility) |
| Cooling Method | Convection cooled (Fanless housing design) |
| Command Interface | Analog reference (\pm10V) or Incremental Digital Command (Quadrature step/direction) |
| Enclosure Dimensions | Height: ~370 mm, Width: ~114 mm, Depth: ~229 mm |
| Approximate Weight | ~6.6 kg |
| Product Status | Industrial Automation Spare Part / Legacy System Support |
First-Run Inspection Checklist
- ☑ Physical & Chassis Integrity
Inspect the aluminum enclosure, front panel status display, connector pins, and terminal blocks for any physical shipping impacts, dents, or terminal bending.
- ☑ Mounting & Clearance Verification
Ensure that the control cabinet backplate provides adequate vertical clearance above and below the fanless, convection-cooled housing to allow proper heat dissipation.
- ☑ Wiring & Grounding Check
Verify that high-voltage AC bus lines, motor power phases (U, V, W), resolver feedback cables, and cabinet earth safety grounds are securely terminated before system energization.
Routine Maintenance & Servicing
- 🛠 Thermal & Enclosure Monitoring
Inspect the cabinet interior regularly to ensure that dust or debris does not obstruct the external cooling fins of the convection-cooled chassis.
- 🔌 Connector & Shielding Inspection
Periodically check resolver feedback cable shields and power connector plug screws to prevent intermittent signal loss or noise coupling caused by machine vibration.
Troubleshooting & Common Issues
- ⚠️ Drive Fault / Seven-Segment Display Error
If the front status display indicates a fault code (such as overvoltage, undervoltage, or overcurrent), cross-reference the error code with the service manual, check DC bus levels, and verify motor winding resistance.
- ⚠️ Motor Oscillation or Runaway
If the axis oscillates or tracks poorly, re-verify tuning parameters via configuration software, check resolver zero alignment, and ensure command signal shielding is properly grounded.
Safety Precautions
- 🔐 Qualified Personnel Only
Installation, parameter configuration, and hardware maintenance must be executed exclusively by certified motion control technicians familiar with high-voltage servo drives.
- ⚠️ Capacitor Discharge Warning
High-voltage DC bus capacitors retain dangerous electrical charges after input power is removed. Always wait the specified discharge duration (typically 5 minutes) and verify zero bus voltage before touching power terminals.
Frequently Asked Questions (Q&A)
- ❓ Q1: What is the primary function of the SCE904AN-002-01 servo drive?
A: It acts as a high-performance power stage and motion processor, converting control commands into modulated three-phase voltage to precisely regulate the speed, torque, and position of a brushless servomotor.
- ❓ Q2: Does this drive require an external cooling fan?
A: No. The unit utilizes a convection-cooled architecture that dissipates heat directly through its aluminum housing without moving internal parts.
