🔹 Product Overview

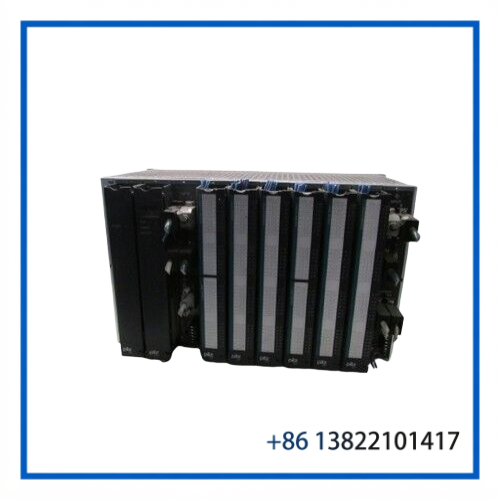

The PILZ P9 SR8 Controller Set is a legacy modular automation and safety-control assembly built around the P9 SR8 rack system. The set includes the P9 SR8 rack base, P9 power supply, P9 CPU, digital and interrupt input/output modules, and PMIA positioning/analog-output modules.
The P9 platform was designed as a modular PLC and safety-control system in which the CPU, power supply, rack, digital I/O, and specialized function modules could be combined according to the application. The P9 family includes dedicated modules such as P9 DI, P9 DIF, P9 DIO, P9 DO, P9 PMIA, P9 PMIA-SH, P9 AIO, and P9 DOR16.
This particular set is therefore best treated as a legacy P9 system assembly / spare-parts package, rather than a single standalone controller.
⚙️ Included P9 Components
The supplied set is identified with the following P9 components:
- P9 SR8 — Rack Base
- P9 PS — Power Supply for SR4/ST8/P9 platform
- P9 CPU — Central Processing Unit
- P9 PMIA-SH — Positioning / Analog Output module
- P9 PMIA — Positioning / Analog Output module
- P9 DIO — Digital Input / Output module
- P9 DIF — Digital Input / Interrupt Input module
- P9 DO — Digital Output module
The individual P9 catalog references identify the SR8 rack as item 303005, P9 PS as 303050, P9 CPU as 303060, P9 DIF as 303105, P9 DIO as 303108, P9 DO as 303111, and the PMIA/PMIA-SH modules as 303118 / 303119.
📊 Technical Datasheet
| Parameter | Specification |
|---|---|
| Brand | PILZ |
| Model / Platform | P9 SR8 |
| Product Series | P9 Modular PLC / Safety Control System |
| Product Name | P9 SR8 Controller & I/O Module Set |
| Rack Type | P9 SR8 Rack Base |
| CPU Module | P9 CPU |
| Power Supply Module | P9 PS |
| Digital I/O Modules | P9 DIO / P9 DIF / P9 DO |
| Special Function Modules | P9 PMIA / P9 PMIA-SH |
| System Type | Legacy Modular Industrial / Safety Controller |
🧠 P9 CPU and Rack Architecture
The P9 architecture separates the central processing function from the power supply and application-specific I/O modules.
The P9 SR8 rack base provides the mechanical and electrical platform for installing the modules. The P9 CPU performs the central control function, while the dedicated I/O and special-function cards extend the system according to the machine requirements.
This modular arrangement makes the set particularly useful when maintaining older PILZ control cabinets where an exact legacy module combination is required.
🔌 Digital I/O Configuration
The included digital modules provide several different signal-handling functions.
P9 DIO
The P9 DIO is identified as a 16-input / 16-output digital I/O module, providing combined discrete signal handling within the P9 system.
P9 DIF
The P9 DIF is a digital input module with 24 digital inputs and 8 interrupt inputs, making it suitable for applications where selected input signals require interrupt-oriented processing.
P9 DO
The P9 DO is a dedicated digital output module for controlling external devices from the P9 controller.
Together, these modules allow the P9 system to handle discrete sensors, switches, actuators, machine interlocks, and control signals.
📐 PMIA and PMIA-SH Functions
The P9 PMIA and P9 PMIA-SH modules belong to the P9 positioning/analog-output module family. The P9 catalog identifies 303118 as P9 PMIA Positioning / Analog Output and 303119 as P9 PMIA-SH Positioning / Analog Output.
These modules extend the controller beyond conventional digital I/O and can be used for applications requiring positioning or analog output functionality.
Because the exact machine configuration determines how these modules are programmed and wired, their application should be checked against the original P9 project documentation before replacement.
🏭 Typical Applications
The P9 platform and its modular architecture are suited to legacy industrial control applications such as:
- Machine safety control
- Production machinery
- Automated manufacturing equipment
- Material-handling systems
- Positioning applications
- Digital machine I/O
- Industrial interlocking
- Legacy PLC control cabinets
- Retrofit and maintenance projects
- Spare-parts replacement for older PILZ installations
The combination of digital I/O and PMIA modules makes this particular set useful where both discrete control and specialized positioning/analog functions are required.
🔧 Installation and Commissioning
Before installing the P9 modules, verify the original rack configuration and module positions.
Recommended procedure:
- Confirm the P9 SR8 rack and installed module positions.
- Verify the P9 PS power-supply configuration.
- Install the P9 CPU in the correct rack position.
- Confirm the order of the I/O modules.
- Inspect connectors and module contacts.
- Verify external field wiring.
- Check the original PLC/safety application.
- Confirm PMIA/PMIA-SH configuration.
- Power the system under controlled conditions.
- Test all inputs, outputs, and special functions before production operation.
Because this is a legacy modular system, the original cabinet drawings and application documentation are especially valuable during commissioning.
🔍 Troubleshooting Guide
P9 system does not start:
Check the P9 PS module, rack connections, supply wiring, CPU installation, and module seating.
CPU reports an error:
Check the module configuration against the original project and inspect the rack for incorrectly installed or incompatible modules.
Digital inputs are not detected:
Check the P9 DIF/DIO modules, field wiring, common connections, input devices, and module position.
Digital outputs do not operate:
Inspect the P9 DO/DIO module, output wiring, connected loads, and control logic.
PMIA function is incorrect:
Verify the PMIA or PMIA-SH module position, application configuration, external wiring, and original machine parameters.
Intermittent module faults occur:
Inspect rack contacts, connectors, power quality, grounding, and signs of oxidation or mechanical damage.
🛠️ Maintenance Recommendations
For legacy P9 systems, preventive maintenance should focus on preserving the complete system configuration.
Recommended records include:
- P9 CPU configuration
- Rack/module arrangement
- PLC application
- I/O address mapping
- PMIA parameters
- External wiring diagrams
- Power-supply information
- Machine safety documentation
- Replacement module references
Keep spare P9 modules protected from dust, moisture, vibration, and electrostatic discharge.
When removing or installing modules, disconnect power where required by the machine’s maintenance procedure and follow the original safety documentation.
♻️ Replacement Considerations
When replacing an individual module from this set, match the exact P9 module type and catalog reference rather than selecting a visually similar PILZ card.
Important references include:
- 303005 — P9 SR8 Rack Base
- 303050 — P9 PS Power Supply
- 303060 — P9 CPU
- 303105 — P9 DIF
- 303108 — P9 DIO
- 303111 — P9 DO
- 303118 — P9 PMIA
- 303119 — P9 PMIA-SH
For a complete replacement set, verify that all modules correspond to the original machine’s rack configuration and software project.
❓ FAQ
What is included in this PILZ P9 set?
The set is identified with a P9 SR8 rack, P9 PS power supply, P9 CPU, P9 PMIA-SH, P9 PMIA, P9 DIO, P9 DIF, and P9 DO modules.
Is this a complete PLC?
It is a modular P9 controller assembly rather than a single integrated PLC. The CPU, power supply, rack, I/O, and special-function modules work together as a system.
What is the P9 SR8?
It is the rack-base platform used to accommodate the P9 modules.
What does the P9 DIF module do?
The P9 DIF is identified as a 24-digital-input module with 8 interrupt inputs.
What is the P9 DIO module?
The P9 DIO is a combined digital I/O module with 16 inputs and 16 outputs.
What is the P9 DO module used for?
It provides dedicated digital output functionality for external machine actuators and control circuits.
What are the PMIA and PMIA-SH modules?
They are P9 positioning/analog-output modules used for specialized control functions.
Is the P9 system a modern PLC platform?
No. The P9 is a legacy PILZ modular control platform and is primarily relevant today for maintenance, repair, retrofit, and replacement applications.
Can individual modules be replaced separately?
Yes, but the exact module type, catalog reference, rack position, wiring, and application configuration should be checked before replacement.
What should be checked before purchasing this set?
Verify the exact modules included, module references, rack configuration, CPU compatibility, power-supply arrangement, application program, and the machine’s original wiring documentation.
