Description
- Model: PMV F5-MEC
- Brand: PMV (A Flowserve Company)
- Series: F5 Series Modular Feedback Units
- Core Function: Mechanical feedback and limit switch monitoring for pneumatic positioners
- Product Type: Feedback Module / Positioner Accessory
- Key Specs: 2x SPDT mechanical switches NEMA 4X / IP66 High-visibility indicator
- Switch Type: 2x V3 SPDT mechanical microswitches
- Voltage Rating: Max 250 V AC / 24 V DC
- Current Rating: 10 A (AC), 0.5 A (DC inductive)
- Feedback Type: Mechanical CAM-operated
- Enclosure Material: Epoxy-coated aluminum alloy
- Ingress Protection: IP66 / NEMA 4X

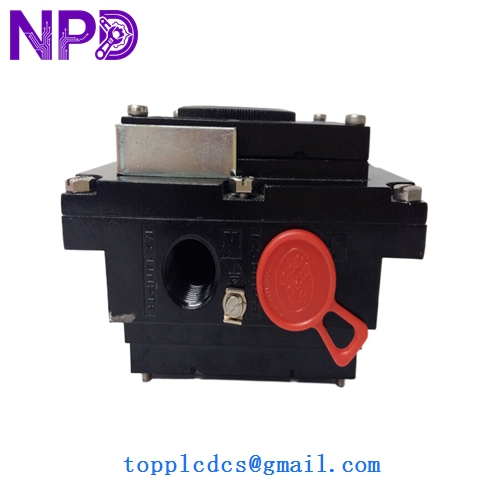

- Conduit Entry: 2x 1/2″ NPT (standard)
- Temperature Range: -20 °C to +80 °C (-4 °F to 176 °F)
- Shaft Connection: Standard F5 spline or NAMUR (per configuration)

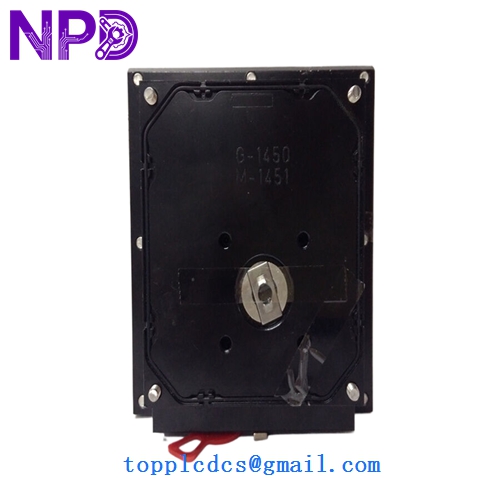

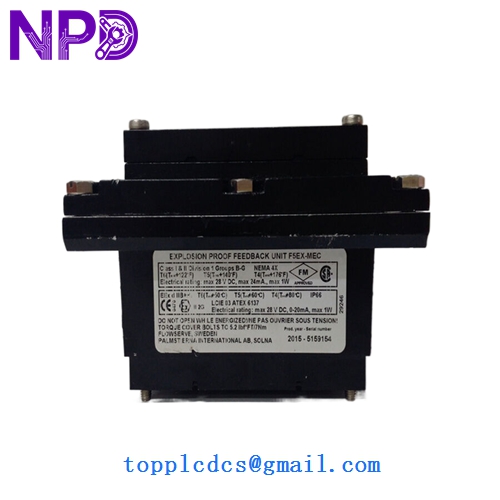

PMV F5-MEC
PMV F5-MEC
PMV F5-MEC
Application Scenarios & Pain Points
In process plants, knowing the exact position of a valve is often more critical than the command itself. The PMV F5-MEC is the modular “eyes” of the F5 positioner. It provides physical confirmation via mechanical switches that the valve has reached its full open or full closed travel. I’ve found that in high-vibration environments, digital feedback can sometimes “flutter,” whereas these mechanical SPDT switches provide a rock-solid, dry-contact signal back to the PLC or DCS.
Typical Application Scenarios:
- Chemical Processing – Valve Status Monitoring Providing confirmed “Full Close” signals for safety interlocks in reactor feed lines.
- Oil & Gas – ESD Systems Used as a redundant feedback loop for Emergency Shutdown (ESD) valves.
- Water & Wastewater Treatment Monitoring automated butterfly valves in filtration and backwash cycles.
- Pulp & Paper – Diverter Valves Ensuring stock flow is correctly diverted by confirming actuator position in harsh, humid conditions.
Case Study: The “Ghost” Open Alarm
Background: A municipal water treatment facility was getting intermittent “Valve Not Closed” alarms on a critical 12-inch discharge line. The pneumatic positioner showed 0% signal, but the DCS wasn’t receiving the limit switch confirmation.
Problem: The existing feedback unit had a cracked housing, allowing moisture to seep in. The corrosion caused the mechanical switches to stick, giving the operators a false sense that the valve was stuck partially open.
Solution: We replaced the unit with a new PMV F5-MEC. Because of its NEMA 4X rating and epoxy coating, it was much better suited for the humid environment near the basins.
Result: – Accuracy Restored: The plant operators regained 100% confidence in the valve status.
- Easy Setup: The “MEC” version’s tool-free CAM adjustment allowed the technician to calibrate the switch points in under five minutes.
- Engineer’s Tip: “When installing the F5-MEC, always use a proper cable gland. Most ‘waterproof’ failures on these units happen because water runs down the cable and straight into the conduit entry.”
Compatible Replacement Models
The F5 series is modular, meaning you can swap the feedback “puck” without replacing the entire positioner.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| F5-MEC | F5-MEC | ✅ Exact Match | Standard mechanical 2-switch unit. |
| F5-MEC | F5-SEC | ⚠️ Software | SEC uses Proximity switches; check PLC input type (PNP/NPN). |
| F5-MEC | F5-420 | ⚠️ Software | Adds 4-20mA feedback; requires extra wiring for the loop. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| No signal at PLC | Blown Microswitch | ✅ High | Check continuity across terminals with valve open/closed. | Replace the internal V3 switch or the module. |
| Signal “flickers” | Loose CAM | ✅ High | Check the set screw on the internal yellow/red CAMs. | Re-align CAM and tighten. |
| Corrosion inside box | Seal Failure | ✅ High | Check the O-ring under the clear cover. | Replace unit; ensure cover is tight. |
| Valve moves, switch doesn’t | Broken Shaft Spline | ⚠️ Med | Visually inspect if the feedback shaft is rotating. | Check coupling between positioner and actuator. |
❗ Pro Tip: CAM Adjustment
The PMV F5-MEC features “Quick-Set” CAMs. You don’t need a screwdriver to adjust them—just push down, rotate to the desired trip point, and release. This is a lifesaver when you’re standing on a ladder in the rain trying to commission a valve.
Wiring & Grounding:
Ensure you use the internal ground screw. In systems with high-frequency VFDs (Variable Frequency Drives) nearby, induced voltage on the limit switch wires can cause “ghost” signals in the PLC. A shielded cable grounded at the Marshalling Cabinet is my standard recommendation for these installs.
