📋 Product Description
The ProSoft Technology 6105-WA-PDPS is a wireless PROFIBUS DP slave gateway in the ProLinx 6000 Series. It enables PROFIBUS DP slave communication over an industrial wireless link, allowing compatible automation equipment to exchange process data without a direct PROFIBUS cable between the paired wireless units. The module operates with the companion 6104-WA-PDPM PROFIBUS DP master gateway and supports configuration through ProSoft Configuration Builder. It is suitable for industrial automation applications where conventional cabling is difficult or impractical. Before ordering, verify the wireless configuration, PROFIBUS network requirements, antenna connections, and compatibility with the installed master system.

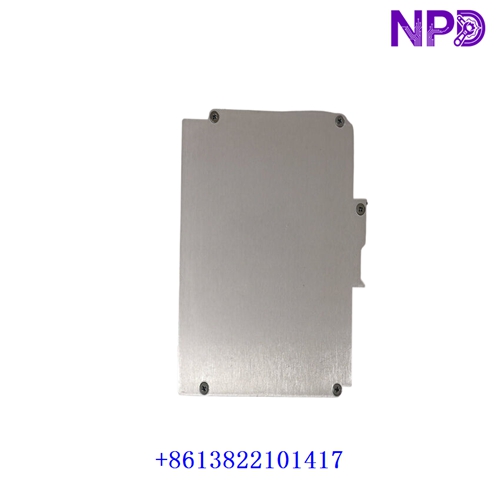

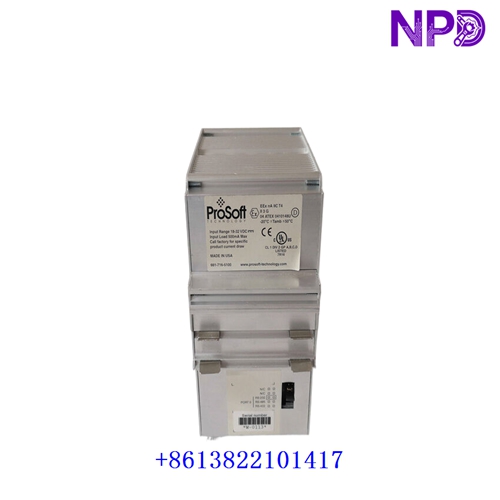

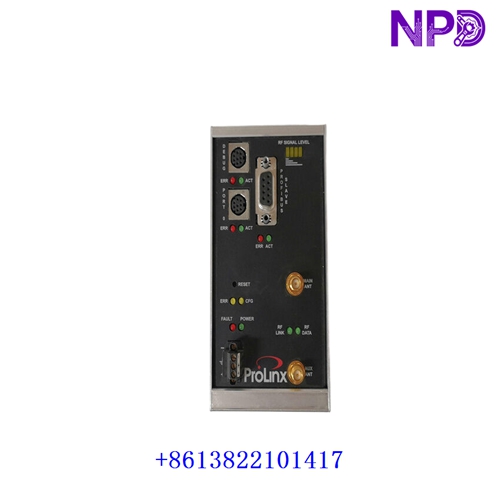

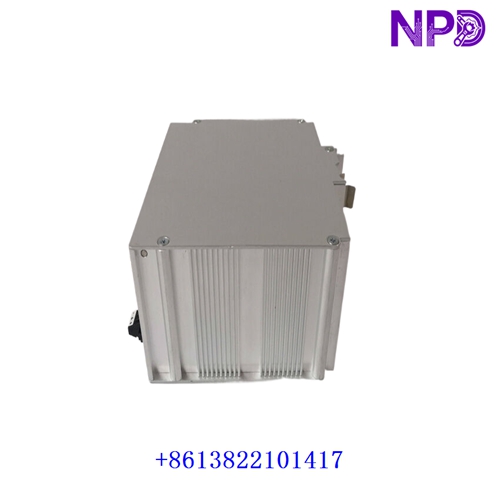

6105-WA-PDPS
⚙️ Product Parameters & Datasheet
- Brand: ProSoft Technology
- Model: 6105-WA-PDPS
- Series: ProLinx 6000 Series
- Product Name: Wireless PROFIBUS DP Slave Gateway
- Place of Manufacture: United States; verify the individual unit label
- Product Status: New Surplus / New – Open Box / Pre-Owned; confirm actual inventory condition
- Dimensions: Confirm against the applicable hardware drawing
- Weight: Not verified; confirm for the supplied unit
- Country of Origin: Verify from the product label
- Power Requirements: 18–36 V DC; nominal 24 V DC
- PROFIBUS Function: DP Slave
- Wireless Frequency: 2.4 GHz band (2400–2483.5 MHz)
- Wireless Technology: Direct Sequence Spread Spectrum (DSSS), compatible with 802.11b-era radio technology
- Wireless Data Rate: Up to 11 Mbps
- PROFIBUS Baud Rate: 9.6 kbps to 12 Mbps
- Configuration Software: ProSoft Configuration Builder; PROFIBUS configuration tools may also be required
- Mounting: Industrial mounting arrangement; confirm the specific hardware installation requirements
- Discontinued: Listed in ProSoft’s legacy product range; confirm support and replacement options with the manufacturer
🔧 Recommended ProSoft Models
- 6104-WA-PDPM — Companion wireless PROFIBUS DP master gateway for use with the 6105-WA-PDPS.
- 6105-WA-PDPS — Wireless PROFIBUS DP slave gateway.
- 6102-WA-MCM — Wireless Modbus master/slave gateway.
- 6201-WA-MNET — Wireless Modbus TCP/IP gateway.
- 6201-WA-DFNT — Wireless EtherNet/IP gateway.
- 6201-WA-DFCM — Wireless DF1 communication gateway.
- 6201-WA-ASCII — Wireless ASCII communication gateway.
- 6201-WA-104S — Wireless IEC 60870-5-104 server gateway.
- 6201-WA-RIO — Wireless remote I/O gateway.
- 6201-WA-DEM — Wireless data exchange module.
- 6303-WA-MBP — Wireless Modbus Plus gateway.
- MVI69-PDPMV1 — PROFIBUS DPV1 master communication module for compatible CompactLogix systems.
- PS69-DPM — PROFIBUS DPV1 master communication module for compatible systems.
- 5205-DFNT-PDPS — EtherNet/IP to PROFIBUS DP slave gateway.
- MVI56-PDPMV1 — PROFIBUS DPV1 master communication module for compatible ControlLogix systems.
The 6104-WA-PDPM is the key companion model for the 6105-WA-PDPS. The other recommendations serve related communication or gateway applications and are not direct replacements. Verify protocol role, host platform, configuration requirements, and wireless compatibility before ordering.
