Description
- The ProSoft MVI56-PDPS is a PROFIBUS DP Slave communication module designed specifically for the Rockwell Automation ControlLogix platform. It allows a ControlLogix processor to interface seamlessly as a slave device on a PROFIBUS DP network, enabling high-speed data exchange with a PROFIBUS Master, such as a Siemens PLC or a specialized DCS.
Product Parameters
- Platform: Allen-Bradley ControlLogix (1756)
- Protocol: PROFIBUS DP Slave (DP-V0)
- Data Transfer: Up to 244 bytes Input / 244 bytes Output data
- Baud Rate: 9.6 kbps to 12 Mbps (Auto-detection supported)
- Current Load: 800 mA @ 5.1 VDC / 3 mA @ 24 VDC
Product Specifications
- Slot Occupancy: Single-slot ControlLogix backplane module
- Configuration: ProSoft Configuration Builder (PCB) via RS-232 port
- I/O Connection: DB9 Female PROFIBUS connector
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% (Non-condensing)

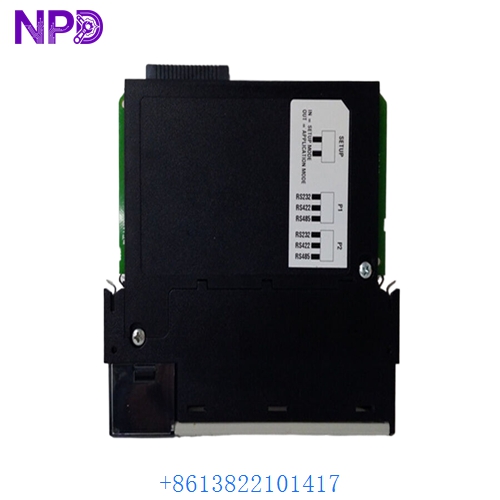

PROSOFT MVI56-PDPS

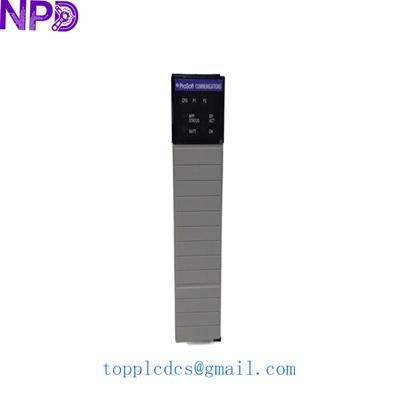

PROSOFT MVI56-PDPS

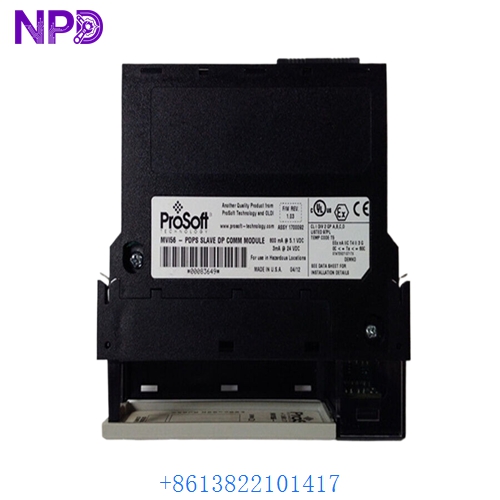

PROSOFT MVI56-PDPS
Application Fields
- System Integration: Connecting ControlLogix PLCs to Siemens-based master control systems.
- Factory Automation: Integrating specialized European machinery into North American plants.
- Process Control: Data mapping between Rockwell processors and PROFIBUS-compliant DCS.
- Machine OEM: Providing flexible connectivity options for multi-platform machine exports.
Product Q&A
Q: Does this module require a separate power supply? A: No, the MVI56-PDPS draws all necessary operating power directly from the ControlLogix backplane.
Q: Can it operate as a PROFIBUS Master? A: No, the MVI56-PDPS is strictly a Slave module. For Master functionality, the MVI56-PDPMV1 module is required.
Q: How is the PROFIBUS station address set? A: The node address (1 to 125) is configured via software using the ProSoft Configuration Builder or through the ladder logic in the Logix processor.
