Description

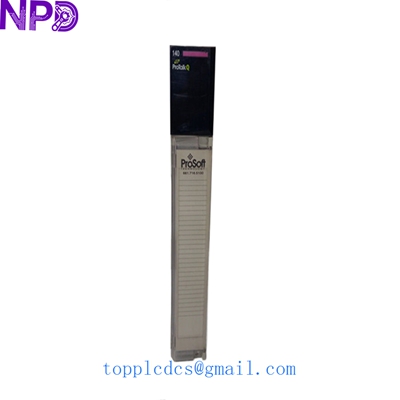

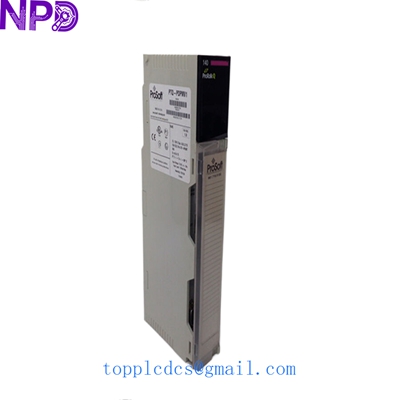

- Model: PROSOFT PTQ-PDPMV1
- Brand: ProSoft Technology (United States)
- Series: ProTalk Series for Schneider Electric Quantum
- Core Function: Connects Quantum PLCs to PROFIBUS DP networks as a Class 1 or Class 2 Master.
- Product Type: Communication Network Interface Module
- Key Specs: Supports up to 125 Slaves | PROFIBUS DP-V1 (Acyclic) support | 24 V DC (Backplane powered)
- Slot Width: Single slot (Quantum backplane)
- Power Consumption: 800 mA @ 5 V DC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Protocols Supported: PROFIBUS DP-V1 (Master Class 1 and Class 2)
- Baud Rate: 9.6 kbps to 12 Mbps (Auto-detection supported)
- Max Slaves: 125 nodes per network
- I/O Data Size: Up to 1,536 bytes Input / 1,536 bytes Output
- Configuration Port: RS-232 (RJ45 connector)
- Compliance: CE, UL/cUL, Class I Div 2
- Isolation: 500 V Optical isolation (PROFIBUS port)
PROSOFT PTQ-PDPMV1
Application Scenarios & Pain Points
In many aging manufacturing plants, Schneider Quantum PLCs are still the “brains” of the operation. However, modernizing these systems often involves integrating newer European-standard instruments or drives that only speak PROFIBUS. The challenge? The native Quantum catalog doesn’t always provide a direct, high-speed bridge to PROFIBUS DP-V1. This leaves engineers stuck with slow gateways or expensive rack overhauls. The PTQ-PDPMV1 solves this by acting as a native bridge, fitting directly into the Quantum rack.
Typical Application Scenarios:
- Water & Wastewater – Remote I/O Integration Used to connect Quantum controllers to distributed PROFIBUS I/O stations across large treatment plants, ensuring high-speed data telemetry.
- Automotive Assembly – Drive Control Managing multiple VFDs (Variable Frequency Drives) on a conveyor line where precise speed synchronization via PROFIBUS is critical for production throughput.
- Oil & Gas – Process Instrumentation Reading acyclic diagnostic data (DP-V1) from smart pressure and temperature transmitters in hazardous areas without interrupting the cyclic control loop.
- Power Generation – Substation Automation Bridging Quantum-based turbine controls with PROFIBUS-compliant protection relays and power meters for real-time electrical monitoring.
Case Study: Chemical Plant Emergency Upgrade
Background: A chemical processing facility in East China was running an older Quantum system. They needed to add three new centrifuge units, but the centrifuge vendors only supplied PROFIBUS DP interfaces.
Problem: The existing system used Modbus, and the project lead was quoted a 10-week lead time for a custom gateway solution. Every week without the new centrifuges meant a production bottleneck costing roughly $50,000 in lost output.
Solution: We supplied a PTQ-PDPMV1 from our Shenzhen inventory. By installing the module directly into an empty slot in the existing Quantum rack, the plant’s integrator was able to map the centrifuge I/O directly into the PLC memory using ProSoft Configuration Builder (PCB).
Result: – Time Saved: The system was up and running in 4 days instead of 10 weeks.
- Cost Avoided: Approximately $450,000 in potential production loss was mitigated.
- Reliability: Since the module sits on the backplane, they avoided the latency and “point-of-failure” risks associated with external standalone gateways.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Differences | Change Required | Cost Impact |
| PTQ-PDPMV1 | PTQ-PDPMV1 (Newer Rev) | ✅ Direct | None | None | Standard |
| PTQ-PDPMV1 | MVI94-PDPMV1 | ❌ Incompatible | Different Rack | Flex I/O vs Quantum rack | High |
| PTQ-PDPMV1 | PTQ-PDP | ⚠️ Software | Older protocol | No DP-V1 support; acyclic data lost | -15% |
Decision Support: If you are replacing a failed unit in a Quantum rack, only the PTQ-PDPMV1 is recommended. The PTQ-PDP is an older version that lacks DP-V1 capabilities; using it might cause your “Smart” instruments to stop reporting diagnostic data. If your rack is full, you might consider an external ProSoft PROFIBUS-to-Modbus TCP Gateway, but that involves significant network re-architecture.
PROSOFT PTQ-PDPMV1
Troubleshooting Quick Reference
| Symptom | Likely Cause | Spare Part Relevance | Quick Check | Action |
| Module “Active” LED is Off | Backplane Power Failure | ❌ Low | Check if other modules in the rack are powered. | Check Quantum Power Supply. |
| “ERR” LED Solid Red | Hardware/Firmware Crash | ✅ High | Perform a power cycle; check the Diagnostic port. | Replace module if error persists. |
| “PROFIBUS” LED Flashing | Configuration Mismatch | ⚠️ Medium | Verify Station Address and Baud Rate in PCB software. | Match GSD files to slave devices. |
| I/O Data is “Frozen” | Comm Timeout | ⚠️ Medium | Check 120 Ω termination resistors at both ends of the bus. | Ensure terminal blocks are tight. |
| Module Not Recognized by PLC | Backplane ID Conflict | ✅ High | Check the slot position and Quantum software (Unity/Concept) config. | Re-seat module or move to a different slot. |
In my experience, 70% of “failed” PTQ-PDPMV1 modules are actually just missing the 120 Ω termination resistor at the end of the PROFIBUS line. Before you order a replacement, grab your multimeter and check the resistance between Pin 3 and Pin 8 on the DB9 connector (with power off)—it should be around 110-220 Ω depending on your network state.
