Description
The ProSoft Technology PTQ-PDPMV1 is a high-performance PROFIBUS DP V1 Master communication module designed specifically for Schneider Electric Quantum programmable automation controller platforms. Slot-compatible with Quantum backplanes, this module allows seamless integration and rapid cyclic data transfer between a Quantum processor and a decentralized field network of up to 125 PROFIBUS DP slaves.
- Manufacturer: ProSoft Technology
- Product Line: ProTalk Series
- Model Number: ProSoft PTQ-PDPMV1
- Product Type: PROFIBUS DP V1 Master Communication Module
- Backplane Compatibility: Schneider Electric Quantum Series Slot-Compatible
- Protocols Supported: PROFIBUS DP-V0 (Cyclic data) and PROFIBUS DP-V1 (Acyclic data)
- Maximum Slaves: Up to 125 slave nodes
- Baud Rate Selection: 9.6 kbps to 12 Mbps (Auto-detecting or software-set)
- Configuration Port: RS-232 serial interface (RJ45 connector)
- PROFIBUS Port: Single DB9 female port with galvanic isolation protection
- Input/Output Data Capacity: Up to 244 bytes of input data and 244 bytes of output data per slave node
- Current Load: 800 mA maximum at 5 VDC backplane power
- Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
- Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Dimensions: Standard Quantum single-slot card form factor
- Weight: 1.10 lbs (0.500 kg)
- Country of Origin: United States (USA)

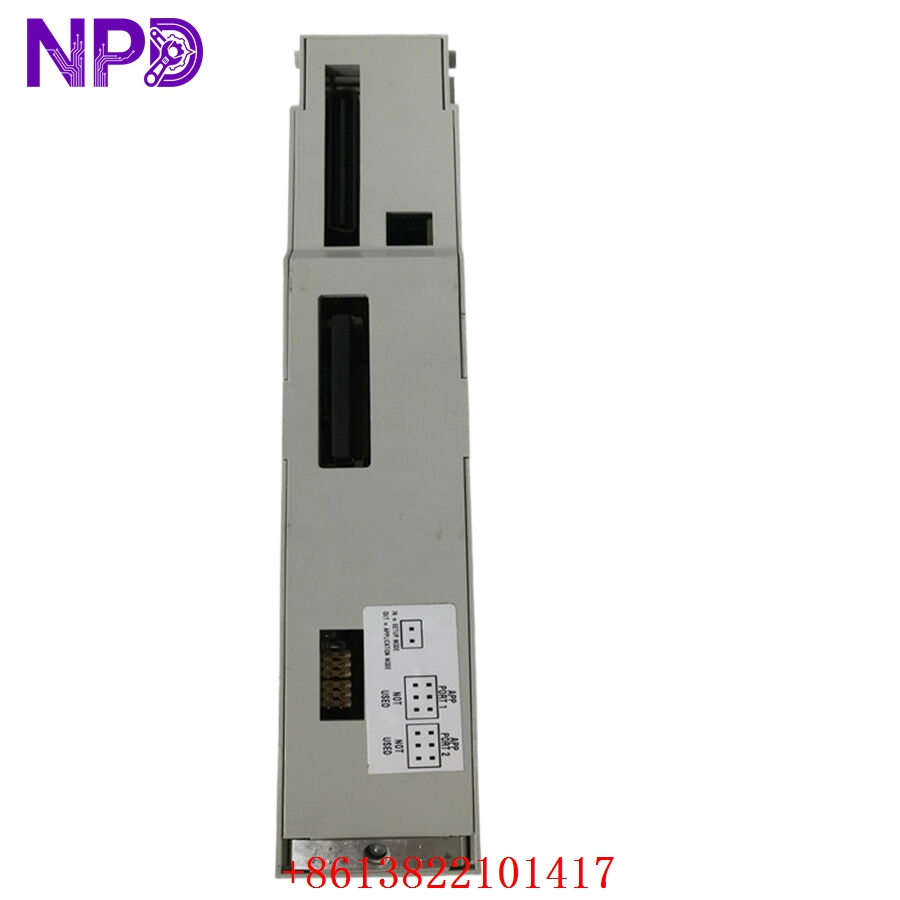

PROSOFT PTQ-PDPMV1

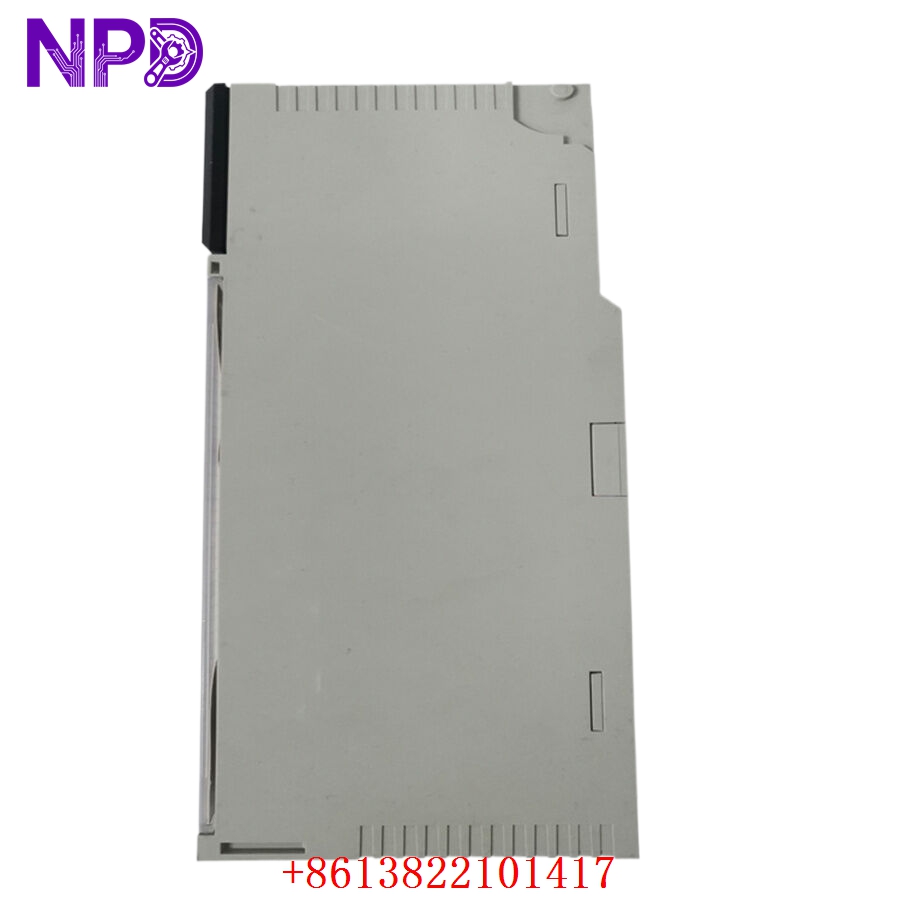

PROSOFT PTQ-PDPMV1

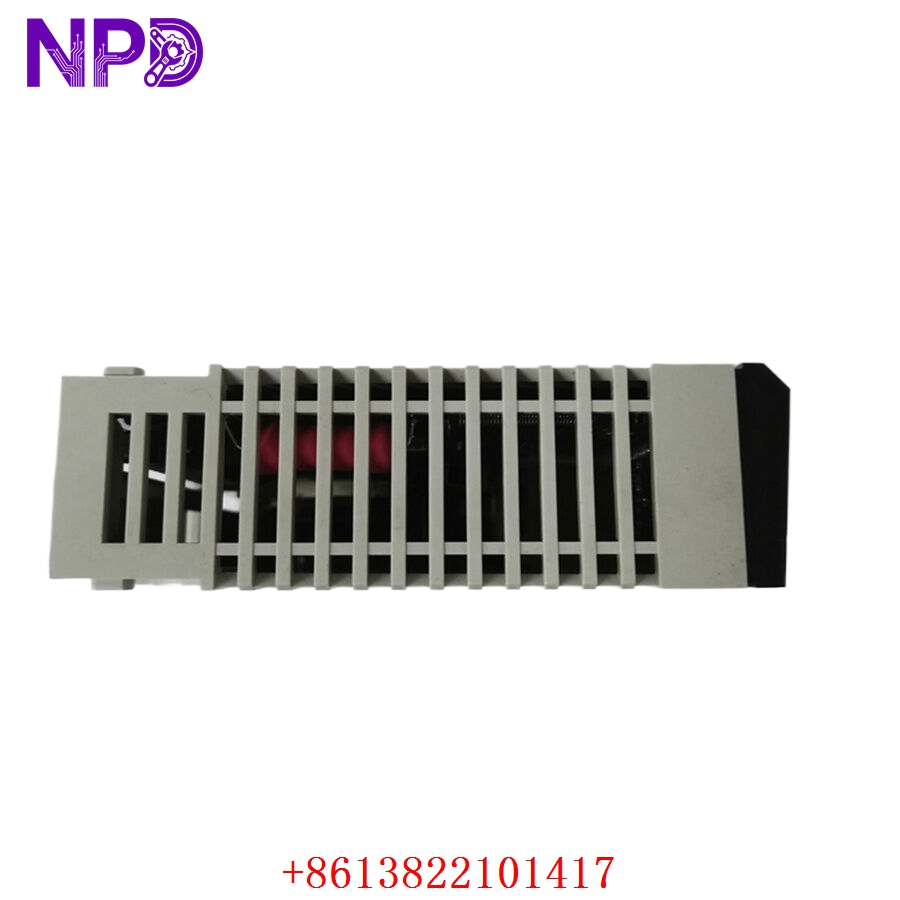

PROSOFT PTQ-PDPMV1
Target Applications
This communication module is deployed in complex processing networks where Quantum controllers manage vast arrays of non-Schneider field devices. Main usage areas include:
- Packaging and high-speed material handling distribution lines
- Wastewater management treatment plants running field instruments
- Automotive assembly networks interfacing with robotic controllers and drives
- Food and beverage manufacturing batch processing and instrumentation tracks
- Cement, mining, and metal mill process automation architectures
Operating Instructions and Safety Guidelines
- Always wear a properly connected Electrostatic Discharge (ESD) wrist strap prior to handling, removing, or inserting the module into the Quantum rack chassis.
- Fully power down the entire Quantum backplane rack configuration before sliding the PTQ module into its designated slot to prevent internal logic damage.
- Use a high-quality, shielded PROFIBUS copper cable (Type A) and ensure proper active termination is applied at both physical ends of the network line.
- Utilize the ProSoft Configuration Builder (PCB) software via the front RJ45 port to map internal registers, import slave GSD files, and configure cyclic database sizes before launching system execution.
Frequently Asked Questions
- Q: Does the PTQ-PDPMV1 module function as a multi-master or a slave interface? A: This specific module functions strictly as a Class 1 or Class 2 PROFIBUS DP V1 Master, meaning it controls the token pass sequence and coordinates slave communication within its network branch.
- Q: What is the benefit of DP-V1 capability compared to older DP-V0 modules? A: DP-V1 support enables acyclic data transmission alongside traditional cyclic data transfers. This allows users to read and write complex diagnostics, configuration profiles, and calibration values directly to smart field instruments during runtime.
- Q: How can technicians check network communication status locally? A: The front panel features dedicated LED indicators (such as CFG, ERR, and MBP status) that immediately signal network health, backplane token exchange, and active port configuration faults.
