1. Product Description

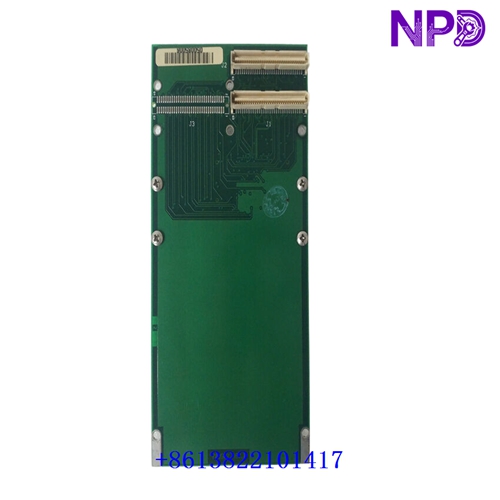

The RAMIX PMC008A 700502 is a PMC-to-Mezzanine Adapter Board designed for embedded computing and industrial control hardware. It is identified as a printed circuit board that provides an interface between a PCI Mezzanine Card (PMC) and a compatible carrier or host system. The product is associated with legacy industrial and embedded computing applications where maintaining existing hardware configurations is important.
The PMC008A is listed with a 24 VDC supply and eight digital I/O channels in some industrial spare-parts catalogs. Because published descriptions vary, confirm the board’s exact function, connector layout, and electrical requirements using the board label, revision, and original system documentation before installation. The model is reported as discontinued by the manufacturer.
PMC008A 700502
2. Product Parameters — Datasheet
Brand: RAMIX
Model: PMC008A
Part Number: 700502
Product Name: PMC-to-Mezzanine Adapter Board
Product Type: Printed Circuit Board / PMC Adapter
Product Series: RAMIX PMC Hardware
Main Function: PMC-to-mezzanine interfacing
I/O Channels: 8 digital I/O channels, as listed in some catalogs; verify the specific revision
Power Supply: 24 VDC, as listed in industrial spare-parts catalogs; confirm before powering the board
Interface: PMC/mezzanine interface; verify host and connector specifications
Dimensions: Not independently confirmed; check the physical board and mechanical drawing
Weight: Approximately 0.05 kg in one catalog listing
Place of Manufacture: Not confirmed for the individual unit
Country of Origin: Verify from the product label and manufacturer documentation
Product Status: New surplus, unused, or refurbished stock may be available depending on supplier
Discontinued: Reported discontinued by the manufacturer
Installation: Compatible host or carrier hardware required
Compatibility: Confirm board revision, connector pinout, host interface, and electrical requirements before replacement
3. Recommended RAMIX Models
The following are related RAMIX product models that may be useful when sourcing legacy embedded computing hardware. They are not confirmed direct replacements for PMC008A 700502.
- RAMIX PMC663J — Ethernet controller board with dual 10/100BASE-TX interfaces.
- RAMIX 14-0420B40 — Expansion drive board associated with the PMC237 platform.
- RAMIX PMC008A — Exact model designation for identifying a like-for-like replacement.
- RAMIX 700502 — Alternate part number associated with PMC008A.
- RAMIX PMC237 — PMC hardware platform designation associated with certain RAMIX expansion boards.
- RAMIX PMC-to-Mezzanine Adapter — Product category for checking interface-compatible adapter boards.
- RAMIX PMC Ethernet Controller — Related embedded networking hardware category.
- RAMIX PMC Expansion Board — Related expansion hardware for compatible carrier systems.
- RAMIX PMC Interface Board — Related interface hardware; verify the exact part number.
- RAMIX PMC Carrier Adapter — Adapter category for embedded computing applications.
- RAMIX VME Interface Board — Related legacy VME system hardware category.
- RAMIX VME PMC Carrier — Carrier hardware category; verify mechanical and electrical compatibility.
- RAMIX Digital I/O Board — Related digital signal interface hardware category.
- RAMIX Embedded Controller Board — Related embedded computing hardware category.
- RAMIX Mezzanine Interface Board — Related mezzanine hardware category; verify the exact model and revision.
For procurement, prioritize the exact PMC008A / 700502 part number and revision. Confirm connector condition, board revision, host compatibility, and operating voltage before ordering.
