Description

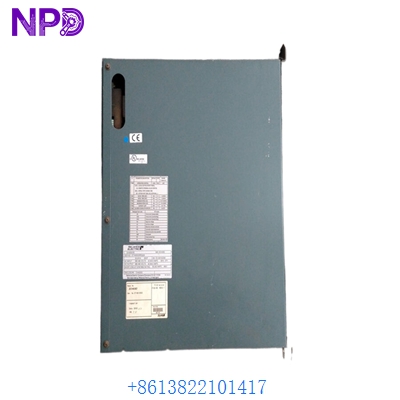

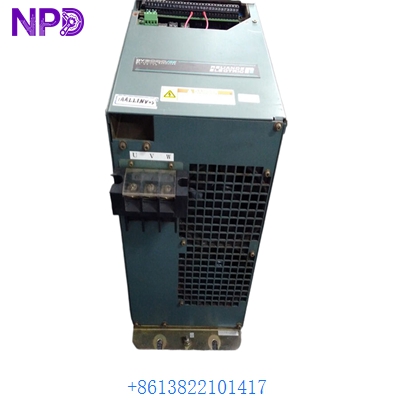

The 30V4060 is a high-performance GV3000/SE AC drive unit developed by Reliance Electric (now Rockwell Automation), designed for precise control of induction motors in industrial vector or volts/hertz applications.
Technical Parameters
- Series: GV3000/SE Digital AC Drive
- Input Voltage: 380-460V AC (+/- 10%)
- Horsepower Rating: 60 HP (Normal Duty) / 50 HP (Heavy Duty)
- Output Amps: 77A Continuous (Normal Duty)
- Control Modes: Scalar (V/Hz) and Vector Control
Dimensions & Weight
- Frame Size: Size 4
- Height: 584 mm
- Width: 264 mm
- Depth: 295 mm
- Weight: 29.5 kg (65 lbs)
Environmental Certifications
- Enclosure Rating: IP20 / NEMA 1 (Chassis)
- Compliance: UL listed, cUL, and CE certified
- Operating Temp: 0°C to +40°C (without derating)
- Relative Humidity: 5% to 95% non-condensing
Application Fields
- Centrifugal pumps and industrial fans
- Conveyor systems and material handling
- Extruders and plastic processing machinery
- Textile and paper mill drive sections
Product Q&A
- Q: Can this drive be used with a remote keypad?
- A: Yes, it supports the local OIM (Operator Interface Module) or a remote-mounted version.
- Q: Does it include a dynamic braking transistor?
- A: Frame 4 units like the 30V4060 typically require an external braking chopper for regenerative loads.
- Q: Is this model compatible with AutoMax systems?
- A: Yes, it can be integrated into AutoMax networks using the appropriate communication interface cards.
