Description
The Reliance Electric 57C409 is a high-performance Remote I/O Head module designed for use with the AutoMax and DCS 5000 control systems. Its primary function is to act as a localized interface that bridges distributed field devices with a central AutoMax processor via a high-speed fiber optic or coaxial communication link. By placing I/O closer to the process machinery, the 57C409 significantly reduces wiring costs and improves signal integrity in electrically noisy environments.

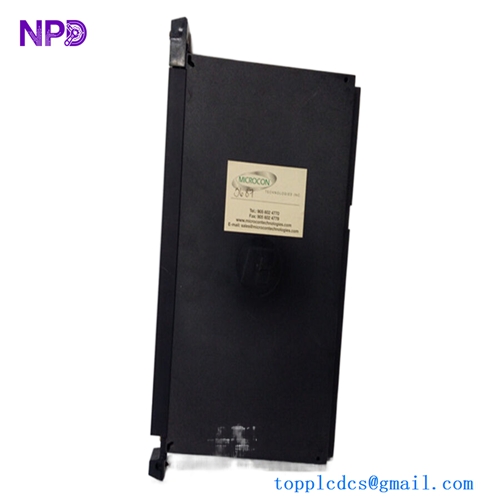

RELIANCE 57C409
Technical Specifications (Datasheet Summary)
The 57C409 is engineered for deterministic data exchange and real-time responsiveness in heavy-duty industrial applications.
| Parameter | Specification |
| Model Number | 57C409 (Remote I/O Head) |
| Product Family | AutoMax / DCS 5000 |
| Communication Interface | Dual-channel Serial (supporting redundancy) |
| Baud Rate | ~1.5 Mbps (Proprietary Remote I/O Link) |
| I/O Rack Compatibility | Supports standard 7-slot or 10-slot AutoMax racks |
| Power Consumption | ~10 W (provided by the rack power supply) |
| Diagnostic Display | 4-character Alphanumeric LED Status Display |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Distance Capability | Up to 1,000 meters (Fiber Optic) / 300 meters (Coaxial) |
Key Functional Features
- Decentralized Control: Allows I/O racks to be placed up to several hundred meters away from the main CPU, allowing for flexible machine layouts.
- Real-time Diagnostics: The built-in LED display provides error codes and status information (e.g., “OK”, “FAIL”, or specific node addresses), which simplifies troubleshooting.
- Dual-Port Redundancy: Supports dual cable runs to the main processor to ensure that a single cable break does not result in a system shutdown.
- Integrated Bus Interface: The module manages the data flow across the rack backplane, ensuring that all digital and analog I/O modules in the remote rack are scanned synchronously.
Application Areas
The 57C409 is a staple in legacy industrial systems that require heavy-duty performance:
- Steel and Metal Processing: Controlling rolling mills and strip processing lines where I/O must be distributed across large plant floors.
- Automotive Manufacturing: Managing conveyor systems and robotic cell interfaces in distributed assembly lines.
- Paper and Pulp Mills: Used in large-scale machine sections that require high-speed synchronization over long distances.
- Mining and Material Handling: Controlling remote stacking and reclaiming equipment via ruggedized communication links.
Country of Origin
The Reliance Electric 57C409 was primarily manufactured in the USA. Following the acquisition of Reliance Electric by Rockwell Automation, these parts are now typically handled through Rockwell’s legacy support divisions or specialized industrial parts distributors.
Product Usage Instructions
1. Installation and Addressing
- Slot Positioning: The 57C409 must always be installed in the leftmost slot (Slot 0) of the remote AutoMax I/O rack.
- Node Setting: Use the onboard thumbwheel switches to set the unique node address. Each remote head on the same link must have a unique address for the main processor to identify it.
- Rack Grounding: Ensure the rack frame is bonded to a low-impedance earth ground to prevent communication glitches caused by electromagnetic interference.
2. Wiring and Communication
- Cable Types: For coaxial links, use high-quality RG-6 or RG-11 cable with BNC connectors. For fiber optic links, ensure the transceivers are clean and the bend radius of the fiber is not exceeded.
- Termination: If the 57C409 is the last node on a coaxial link, a 75-ohm terminator must be used to prevent signal reflection.
3. Maintenance and Troubleshooting
- Status Codes: Monitor the LED display. A steady “OK” indicates the module is communicating with the host. A flashing “E” followed by a number indicates a communication or hardware error.
- Power-Up Sequence: It is generally recommended to power up the remote I/O racks before the main CPU rack to allow the communication links to stabilize during the processor’s initialization phase.
Recommended Related Reliance Electric Products
To maintain or complete an AutoMax system, the following related models are frequently used in conjunction with the 57C409:
- Reliance 57C430 / 57C435: The AutoMax Processor modules that act as the central brain for the system.
- Reliance 57C404: A Remote I/O Drive controller module often found in the same rack.
- Reliance 57C328: A standard Digital Input module used in 57C409-controlled racks.
- Reliance 57C330: A standard Digital Output module used for actuator and motor starter control.
- Reliance 57C493: The communication cable interface used to connect the CPU rack to the remote link.
- Reliance 57C441: The Network Communication module used for high-level data exchange between different AutoMax systems.
