Description
-
- Model: UAZ34553475 (Component of VZ3000 system)
- Brand: Reliance Electric (Rockwell Automation)
- Series: VZ3000 High-Performance AC Vector Drives
- Core Function: Main Control/Processor Board for Vector Drive regulation
- Type: Drive Control Module
- Key Specs: Digital Vector Control | High-speed DSP processing | Multilingual Interface support
- Processing Power: 32-bit Digital Signal Processor (DSP) for real-time vector calculations
- Control Modes: Sensorless Vector, Closed-loop Flux Vector, and V/Hz control
- Input Feedback: Supports high-resolution encoder inputs (differential or open-collector)
- Communication: Reliance AutoMax Network compatible / RS232/485 serial
- I/O Interface: Multi-function programmable Analog/Digital I/O points
- Speed Regulation: 0.01% with encoder feedback
- Torque Response: <5 ms in closed-loop mode
- Operating Voltage: Internal logic derived from Drive Power Stage
- Diagnostics: Built-in fault logging and 7-segment/LCD status display
- Environmental: Conformal coating for industrial atmosphere protection

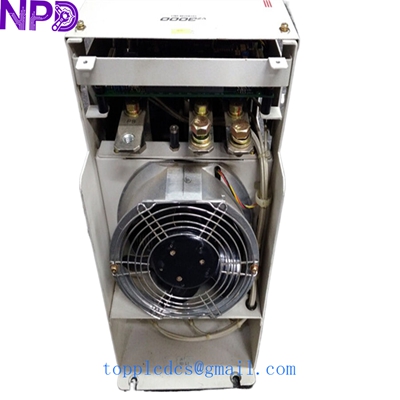

Reliance UAZ34553475 VZ3000
Application Scenarios & Pain Points
The VZ3000 series was the backbone of high-torque, precision-speed applications for decades. When a UAZ34553475 control board starts to fail, it usually manifests as “Speed Deviation” or “Processor Faults” that occur randomly as the board reaches operating temperature. Because Reliance Electric has migrated most support to the PowerFlex lines, finding an exact match for this board is critical to avoid a massive (and expensive) cabinet migration.
Typical Application Scenarios:
- Steel Rolling Mills Managing tension and speed for multi-stand rolling where millisecond coordination between drives is mandatory.
- Paper Machine Sectional Drives Controlling the “draw” between the press and dryer sections to prevent web breaks.
- High-Speed Printing Presses Ensuring color registration by maintaining exact motor shaft position.
- Coilers and Uncoilers Precise torque control to maintain constant material tension regardless of roll diameter.
Case Study: The “Intermittent Trip” Mystery
Background: A plastic film manufacturer in the US Midwest was experiencing random “Processor Watchdog” trips on their main extruder drive (VZ3000). Problem: The drive would run for 6 hours, then trip. After a 30-minute cooldown, it would restart. Testing revealed that the UAZ34553475 board had aging capacitors in the local power regulation circuit. Solution: We provided a tested UAZ34553475 board from our climate-controlled inventory. Result:
- Repair Time: 20 minutes (Swap and Parameter Download).
- Outcome: The extruder returned to 24/7 operation without a single trip in the following 6 months.
- Engineer’s Insight: These boards are prone to “heat soak.” If you see erratic behavior that clears after a power cycle, don’t wait for a total failure—replace the board before it damages the IGBT power stage.

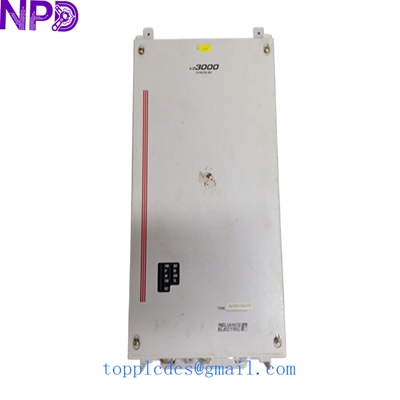

Reliance UAZ34553475 VZ3000
Compatible Replacement Models
Original Model Replacement Model Compatibility Key Difference Modification Cost Impact UAZ34553475 UAZ3455xxxx (Other Rev) ⚠️ Software Compatible Firmware version may differ Must flash parameters Same VZ3000 Control PowerFlex 755 ❌ Hardware Incompatible Modern AC Drive Complete Drive Replacement +300% UAZ34553475 Refurbished Unit ✅ Direct Replace Tested/Recapped None -20% ❗ Critical Note: Reliance VZ3000 boards often use specific Application EPROMs. When you replace the UAZ34553475, you must move the existing EPROM chips from your old board to the new one to keep your custom machine logic.
Troubleshooting Quick Reference
Symptom Possible Cause Part Relevance Quick Check Action “E-Stop” Lockout Logic board 24V missing ✅ High Check LED status on UAZ board Verify internal ribbon cables Erratic Speed Encoder signal noise ⚠️ Medium Scope the A/B phase signals Check shield grounding at X4 “Communication Lost” Port isolation failure ✅ High Try RS232 port instead of Network Replace UAZ34553475 board Drive Won’t Enable Input buffer chip failed ✅ High Check voltage at “Run” terminal Likely hardware failure on board Overcurrent (False) Current sensor scaling error ⚠️ Medium Compare actual current vs. display Recalibrate or replace board Maintenance Tip: When swapping this board, always use a grounding wrist strap. The DSP on the UAZ34553475 is extremely sensitive to static. I’ve seen boards “half-fail” where they boot up but lose their serial ports just because someone touched the pins while they were statically charged.
Reliance UAZ34553475 VZ3000
Quality Assurance SOP
- Source Traceability: We verify the board’s origin and revision level to ensure it matches the high-spec requirements of the VZ3000 series.
- Static Inspection: We check for “cold” solder joints and electrolyte leakage from onboard capacitors.
- Power-On Self-Test (POST): The board is installed in a VZ3000 test chassis to verify the CPU, RAM, and EPROM socket integrity.
- I/O Loopback: All analog and digital ports are tested for signal accuracy and response time.
- Parameter Retention: We test the onboard memory to ensure it holds drive parameters even after a 24-hour power loss.
