Description

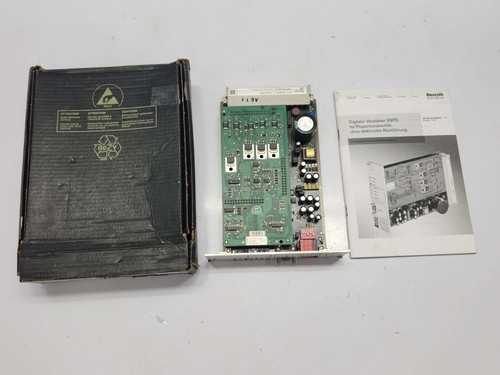

The Rexroth VT TSPD-1-10/V0/0 and the associated VT-SWKD-1-13C/V0/0 are high-precision Digital Valve Amplifier PCB cards designed for the control of proportional hydraulic valves with electrical position feedback. These modules translate low-level command signals (typically \pm 10V or 4–20mA) into high-current Pulse Width Modulation (PWM) signals to drive the solenoid actuators of proportional directional or pressure valves.
The VT TSPD series is widely utilized in industrial hydraulics where precise positioning, acceleration, and deceleration profiles are required. These cards ensure high dynamic response and repeatability, critical for applications like injection molding machines, turbine control, and heavy-duty press systems.
Key Technical Specifications
| Parameter | VT TSPD-1-10/V0/0 |
| Component Type | Digital Proportional Valve Amplifier |
| Command Input | \pm 10V or 4–20mA (configurable) |
| Output Type | PWM (Pulse Width Modulation) |
| Feedback Input | Inductive or LVDT position feedback |
| Supply Voltage | 24V DC |
| Adjustment | Via serial interface or software (BODAC) |
| Mounting | Eurocard format (100 x 160 mm) |
| Environment | IP20 (Cabinet mounted) |
Recommended Related Models
These modules are frequently serviced or upgraded within Rexroth proportional control systems:
- VT-SWKD-1-13C/V0/0: Logic/Calibration interface module used in conjunction with the TSPD series.
- VT-VSPA1-1: Analog amplifier for simpler proportional valve control.
- VT-DRE/K: Digital amplifier for pressure control valves.
- VT-HNC100: Digital axis control controller for complex motion.
- 4WREE / 4WRP: Proportional directional valves (Commonly driven by TSPD).
- VT-P-SS1: Power supply unit for valve amplifier racks.
- VT-SWKD-1-10: Older revision/variant of the calibration card.
- VT-ASU: Auxiliary signal conditioning module.
Important Technical Note: These digital amplifiers are parameter-driven. If you are replacing a card, the new module will likely require a “Parameter Download” using the Rexroth BODAC software. Without the correct configuration file—which contains the valve-specific gain, dither frequency, and offset values—the valve will not function accurately and could result in unstable control or “hunting” of the spool position.
