Rockwell ICS Triplex 9100 Series Digital I/O Module

Description

• Model: ICS Triplex 9100 Series (Commonly associated with T8403 / T8431 / T8461 modules)
• Brand: ICS Triplex (A Rockwell Automation Company)
• Series: Trusted TMR (Triple Modular Redundant) Safety Platform
• Core Function: High-integrity safety critical control and fault-tolerant processing
• Condition: Brand New Surplus (Original authentic factory stock, never deployed)
• Product Type: TMR Processor / Power / I/O Interface Modules
• Key Specs: 24 V DC system power, Triple Modular Redundancy logic, SIL 3 certified architecture

• System Architecture: Triple Modular Redundant (TMR, 3-2-0 voting logic)
• Nominal Operating Voltage: 24 V DC (Accepts 20 V to 32 V DC range)
• Safety Integrity Level: Certified up to SIL 3 (IEC 61508 compliant)
• Fault Tolerance: Continues operating seamlessly despite a single hardware fault path
• Isolation Rating: 1,000 V opto-isolated safety barriers between field and logic
• Communication Interfacing: Modbus RTU, Modbus TCP, and proprietary Trusted peer-to-peer protocols
• Operating Temperature: -5°C to +60°C (Internal rack ambient monitoring)
• Storage Temperature: -25°C to +75°C
• Sequence of Events (SOE) Resolution: 1 ms accuracy across digital inputs
• Diagnostics: Comprehensive continuous background self-test execution

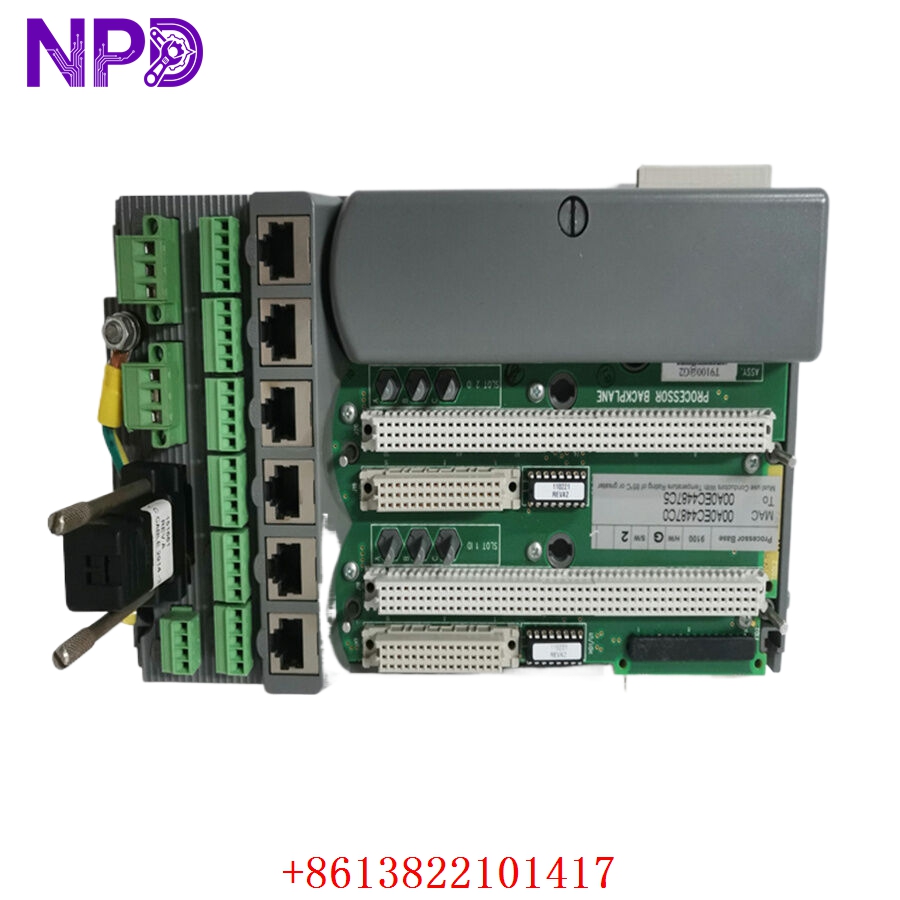

ICS TRIPLEX 9100

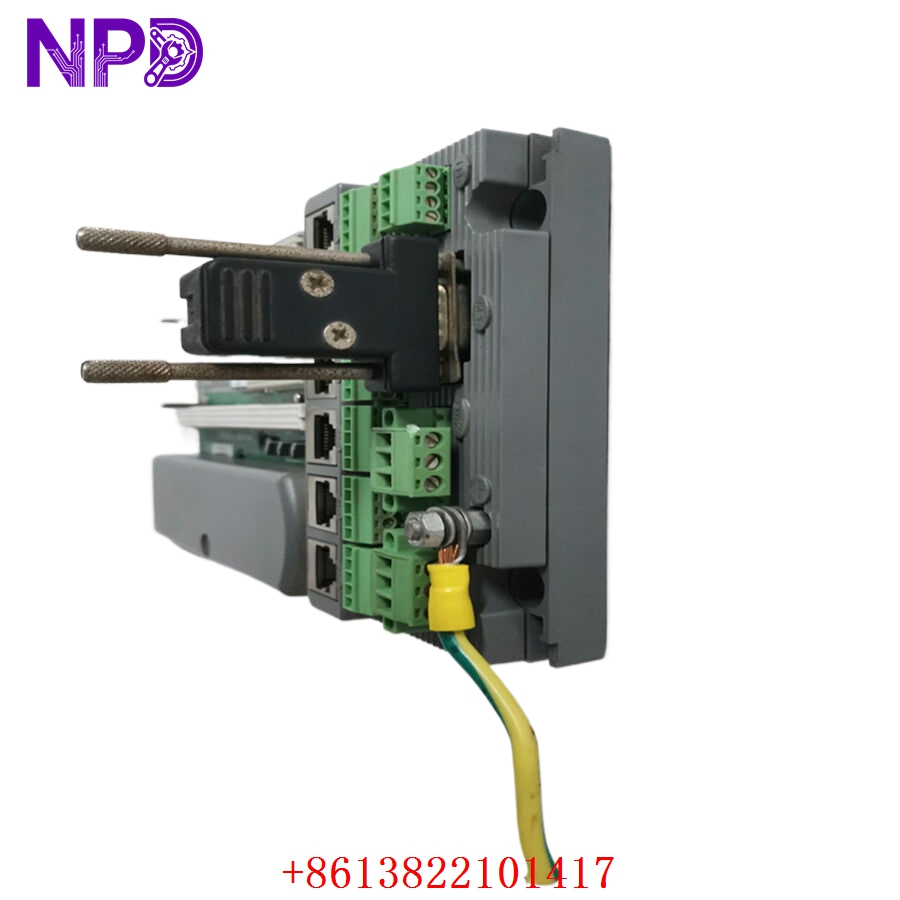

ICS TRIPLEX 9100

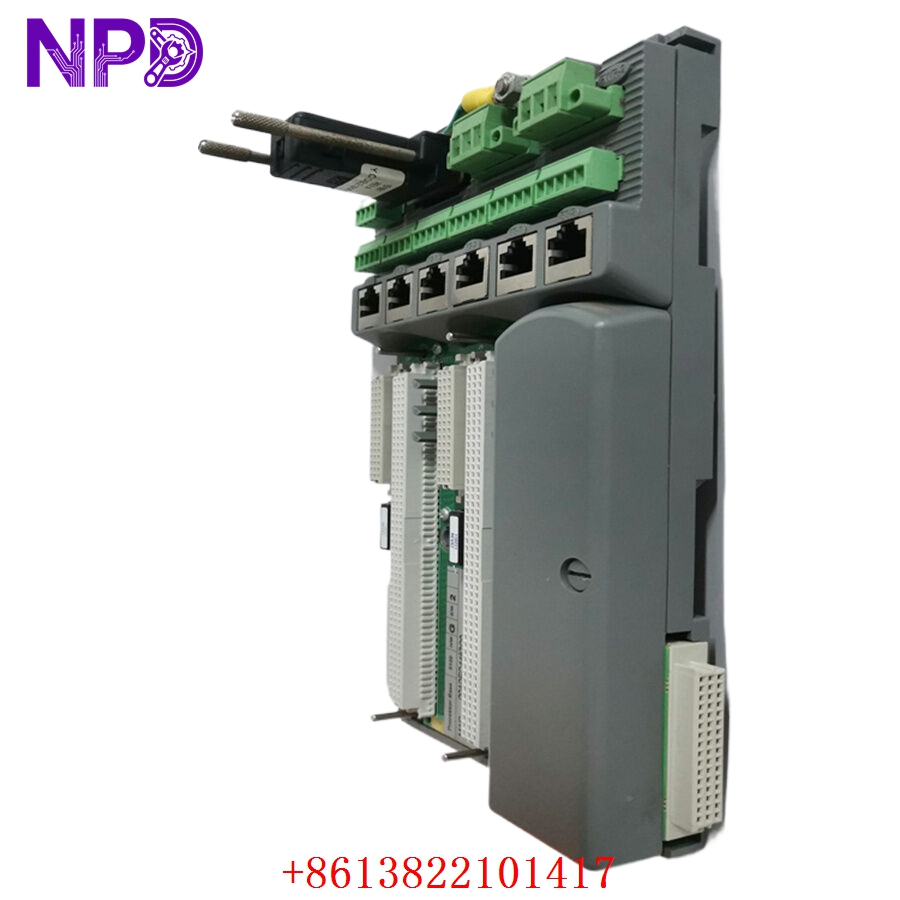

ICS TRIPLEX 9100

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated Time: 20 minutes)

⚠️ Safety Critical Warning:

1. The ICS Triplex 9100 Trusted system controls highly critical emergency shutdown (ESD) or fire and gas (F&G) loops. Work must only be executed under a strictly monitored, approved plant safety bypass permit.
2. Confirm the exact status of the active processor. If your rack configuration is non-redundant, this procedure will induce a complete system shutdown.
3. Ensure the engineering workstation running Toolset software is online, stable, and directly connected to the controller network.

Tooling Checklist:

• Grounded ESD wrist strap with alligator clip connection
• Standard slot-head terminal screwdriver
• Calibrated digital multimeter (Fluke 87V or equivalent)
• Anti-static storage bags for protection

Data Preservation:

• Execute a full system backup using the Toolset programming environment. Save the binary runtime file to two independent physical drives.
• Document the current system event logs and diagnostic status variables to pinpoint any pre-existing network or backplane faults.

Phase 2: Removal (Estimated Time: 10 minutes)

1. Verify Module Interlock: Ensure that the module you intend to remove is completely deselected or showing a steady diagnostic fault light, indicating that its TMR companion channels have successfully assumed the execution workload.
2. Release Retaining Mechanism: Disengage the top and bottom mechanical thumb latches or securing screws on the front faceplate of the 9100 series chassis module.
3. Extraction: Firmly pull the module levers outward to pry the high-density rear pin assembly loose from the heavy-duty backplane connectors. Slide the module straight out along its guide tracks.
4. Connector Evaluation: Look closely at the backplane shroud pins using a flashlight. Check for any dust buildup, corrosion, or pin displacement. Use clean, residue-free compressed air to blow out the slot if necessary.

Phase 3: Installation (Estimated Time: 15 minutes)

1. ESD Measures: Secure your ESD wrist strap to a verified bare-metal rack grounding stud before opening the protective conductive packaging of the replacement module.
2. Address & Jumper Verification: Compare the hardware revision labels and any physical configuration jumpers on the module’s side circuit boards with the unit that was removed.
3. Slide and Seat: Guide the unit carefully into the corresponding slot of the 9100 chassis assembly. Push firmly on the faceplate handles until the connector snaps securely flush into the backplane matrix.
4. Lock Down: Fasten the retention screws hand-tight to ensure the grounding contacts maintain positive contact even under severe environmental vibration.

Phase 4: Power-On & Testing (Estimated Time: 30 minutes)

Power-Up & Initialization:

1. If the slot uses an independent power feed breaker, switch it on. For hot-swappable I/O configurations, the module will initialize automatically via the backplane power rail.
2. Watch the LEDs: The front panel indicators will begin a self-test flash sequence. Wait for the healthy status LED to switch over to solid green, indicating the local processor core has completed boot-up routines.
3. Reconcile Redundancy: Open your engineering workspace diagnostics window. Verify that the TMR voting engine recognizes the new channel slice and begins the automated state-synchronization protocol to catch up with the other active channels.
4. Verify Field Signals: If replacing an I/O module slice, cross-reference several live real-world inputs against the SCADA screen readouts to confirm clean signal conduction.
5. Update your physical maintenance records with the hardware serial numbers, firmware version tags, and exact timestamp of the swap.

Customer Cases & Industry Applications

Case 1: Offshore Production Platform—Emergency ESD Restoration

Situation: An active oil and gas production platform located in the South China Sea utilized an ICS Triplex 9100 system for master emergency shutdown matrix execution. During routine diagnostics, the control room noted a persistent channel degradation error on a vital digital input module slice, threatening a total system trip if a secondary failure occurred.

Task: Operating an offshore platform with compromised safety redundancy is an extreme risk. A full unexpected facility shutdown would penalize the operator roughly $180,000 per day in deferred production, and standard supply lines from major logistics hubs normally take weeks to navigate customs and helicopter transport parameters.

Action: The offshore maintenance supervisor contacted our team via an emergency satellite link. We confirmed availability of a brand new surplus, identical configuration module slice in our inventory. Our engineers subjected the hardware to a full multi-channel loop test on our internal Trusted validation rack. We handled the complex regulatory export and customs clearance paperwork on an expedited basis, coordinating a hot-shot courier delivery directly to the operator’s mainland supply helicopter base.

Result: The certified spare arrived at the offshore platform platform within 72 hours of the initial call. The instrument technician successfully hot-swapped the faulty slice out without stopping the process line. The TMR system completed automatic synchronization immediately, returning the safety integrity level to full status and preventing a costly un-planned platform trip.

Case 2: Nuclear Power Facility—Preventative Lifecycle Extension

Situation: A nuclear power plant infrastructure network built in the early 2000s relies on a specialized ICS Triplex 9100 layout for peripheral cooling pump safety logic tracking. The system has run without a major fault for years, but the asset management team faced upcoming audit compliance challenges regarding obsolete component availability.

Task: The primary vendor had shifted its core support attention toward newer design systems, resulting in long lead times and high pricing for legacy parts. The plant could not justify the massive capital layout or the extensive re-validation engineering hours needed to swap the entire safety panel out, yet they were required by national safety regulators to show immediate access to critical spare parts.

Action: We partnered with their logistics team to evaluate their active inventory gaps. We supplied two factory-fresh surplus 9100 series processor components complete with serialized trace logs, enabling the plant to establish an accredited, climate-controlled on-site capital insurance reserve.

Result: The power station successfully cleared their regulatory lifecycle availability audit with zero non-compliance findings. They preserved their working capital, deferred a multi-million dollar capital expenditure project for another 7 years, and ensured their operational safety grid remains backed by completely pristine, un-degraded physical assets.

Frequently Asked Questions (FAQ)

Q1: Can I hot-swap individual modules in an ICS Triplex 9100 system?

A: Yes, the architecture of the Trusted 9100 platform is explicitly engineered to support online hot-swapping of individual module slices provided the system is configured in a redundant or TMR layout and the companion modules are running in a healthy state. When you pull a faulted module slice, the remaining operational slices continue managing the safety loop seamlessly.

Critical Caveat: Always check your online hardware status via the Toolset configuration software to confirm that the active voting partners are fully synchronized before extracting any module from the backplane.

Q2: Why choose Brand New Surplus over refurbished or repaired units?

A: In high-integrity safety systems (SIL 3), component reliability is paramount. Refurbished modules are typically units that have already clocked 50,000 to 100,000 operational hours in harsh environments before failing and being patched up.

The Reality: Component aging—especially in internal electrolytic capacitors and optocouplers—cannot be reversed by simply cleaning a board or changing a single blown resistor. Our Brand New Surplus inventory provides un-degraded, zero-hour silicon life, giving you the same long-term reliability profile as the original factory deployment.

Q3: How do you verify the integrity of these complex TMR parts?

A: We use a highly specialized testing pipeline tailored for multi-channel voting logic systems:

[Visual Inspection under Magnification] -> [Parametric Power Isolation Checks] -> [TMR Backplane Communication Test] -> [Data Sync Verification Log]

We connect the module into a live testing environment to ensure that all three internal micro-controller channels execute logic in perfect unison and communicate clearly across the redundant bus interface. We do not use guesswork; we verify that the module behaves precisely as intended before it receives its final quality seal.

Q4: What is your standard policy if a module encounters compatibility issues during commissioning?

A: We back our inventory with a firm 12-month warranty starting from the day the part arrives at your facility. If you experience a compatibility exception or firmware version mismatch upon installation, our engineering support team will assist you in reviewing your hardware revision history. If the unit does not function correctly due to an internal hardware issue, you can return it within the warranty window for a replacement良品 or a direct refund if stock limits have been reached.

Q5: Are your prices inclusive of export compliance documentation for international facilities?

A: Our baseline item quotes are typically offered on an EXW or FOB basis, but our logistics team is fully equipped to provide comprehensive DDU or DDP international shipping services. Because these safety system components fall under specific international trade classifications (such as dual-use industrial automation hardware), we ensure all commercial invoices, custom declarations, and HS code classifications are meticulously prepared to prevent any border delays.
