Description
The SAIA PCD1.M120 is a versatile and compact stand-alone PLC belonging to the Saia Burgess Controls (SBC) PCD1 family. Known for its small footprint and high functional density, this controller is designed for decentralized automation tasks where space is at a premium. It features integrated digital and analog I/O and supports a variety of communication protocols, making it an ideal choice for building automation, small machine control, and infrastructure monitoring.
Product Specifications
- Model Identification: SAIA PCD1.M120
- Processor: High-performance proprietary RISC architecture
- User Memory: 128 KB for program and data (expandable via flash/RAM modules)
- Integrated I/O: 8 Digital Inputs, 6 Digital Outputs, 2 Analog Inputs, 2 Analog Outputs
- Communication: Integrated RS-232 and RS-485 (S-Bus, Profibus DP, or Modbus compatible)
- Power Supply: 24V DC (-20%/+25%)
- Dimensions: 130 mm x 105 mm x 58 mm
- Weight: 0.32 kg
- Country of Origin: Switzerland
Application Fields
The SAIA PCD1.M120 is widely used in applications that require intelligent decentralized control:
- Building Automation: Managing HVAC systems, lighting control, and access management in smart buildings.
- Energy Management: Monitoring power consumption and controlling small-scale renewable energy installations.
- Machine Manufacturing: Controlling small production machines, assembly stations, and specialized tools.
- Water Management: Supervising pumping stations and small-scale wastewater treatment units.
- OEM Applications: Integrating reliable control logic into proprietary technical equipment.

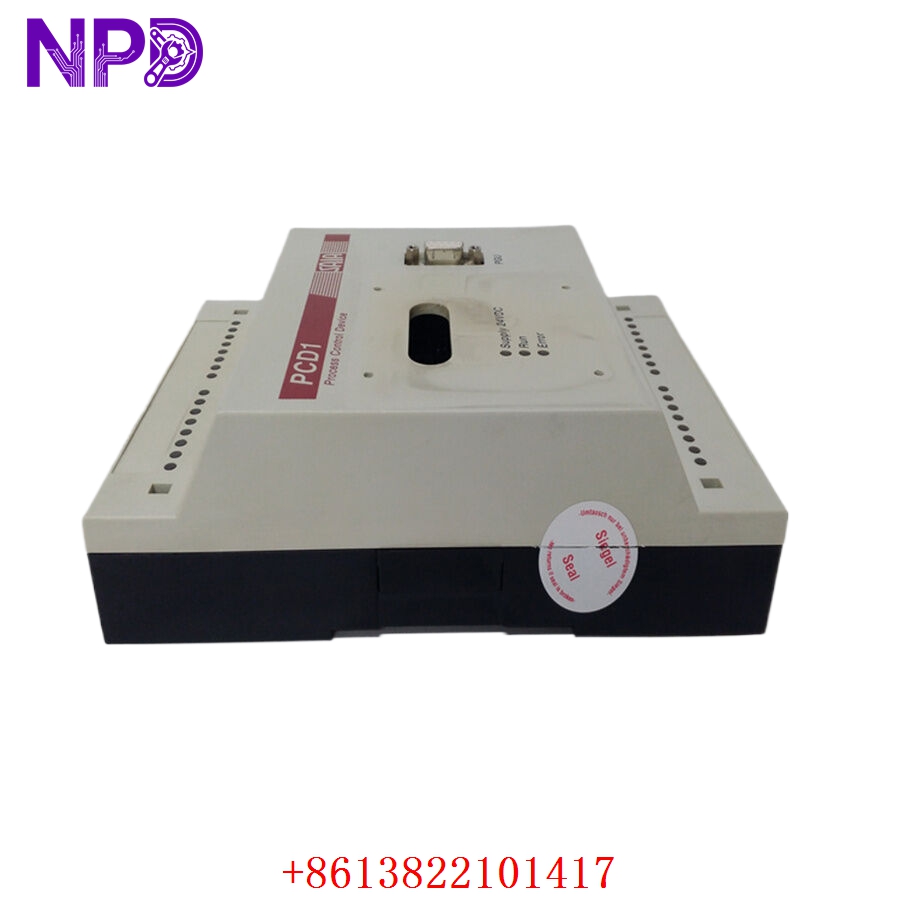

SAIA PCD1.M120

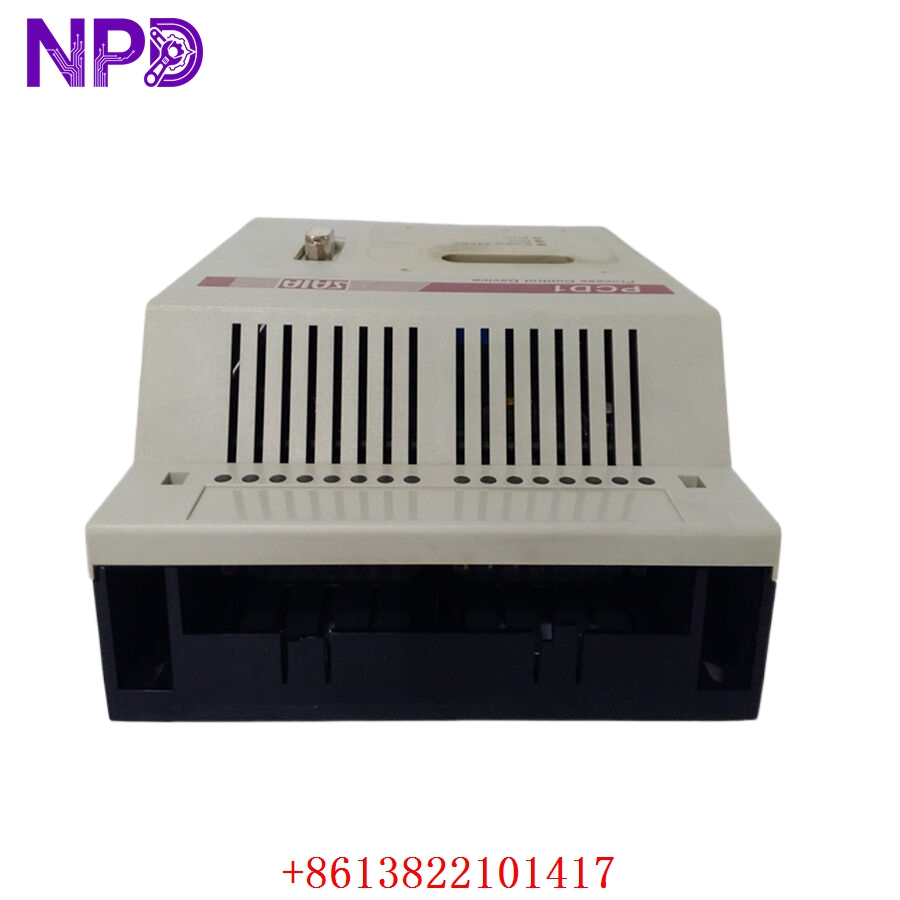

SAIA PCD1.M120
SAIA PCD1.M120
Product Operation Instructions
- Mounting: Install the PCD1.M120 on a 35mm DIN rail. Given its compact design, ensure it is oriented vertically to allow for natural air convection through the ventilation slots.
- Power Connection: Connect a stabilized 24V DC power supply to the designated terminals. Verify that the polarity is correct before switching on the power to prevent fuse damage.
- I/O Wiring: Use the pluggable screw-terminal blocks for field wiring. The digital outputs are typically short-circuit protected, but external fusing is recommended for high-load applications.
- Programming: The module is programmed using the Saia PG5 Controls Suite. Connect your PC to the integrated PGU port (RS-232) or via the S-Bus network to download the logic.
- Data Backup: The PCD1.M120 utilizes a lithium battery to buffer the internal SRAM and the real-time clock. Ensure the battery is functional to prevent data loss during long-term power outages.
Q&A: Common Questions
Q: Can I expand the I/O capacity of the PCD1.M120? A: While the M120 is a compact unit, it can be expanded locally using specialized expansion modules or remotely via S-Bus or other fieldbus protocols to meet larger I/O requirements.
Q: What is the benefit of the Saia S-Bus protocol? A: S-Bus is a highly efficient protocol optimized for Saia PCD systems, allowing for seamless data exchange and synchronization between multiple controllers and HMI units with minimal configuration.
Q: How do I reset the module to factory settings? A: A factory reset can be performed via the PG5 software or by using a specific jumper sequence on the board as outlined in the technical manual.
