Description

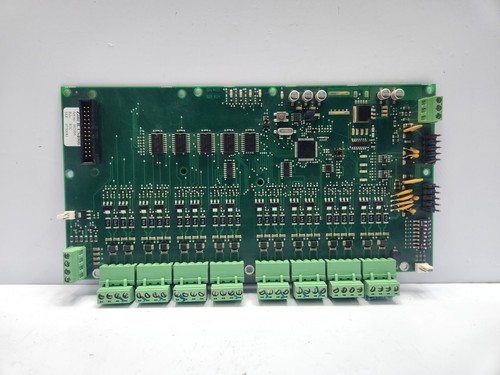

The Salwico CS4000 Zone Board (SZB) (Part Number: 462006, Revision R2A) is a critical interface module used in the Salwico CS4000 fire alarm system. This PCB card serves as the bridge between the central fire alarm control panel and the external addressable fire detection loops, such as smoke detectors, heat detectors, and manual call points. It manages the communication, power distribution, and fault monitoring for its assigned detection zone.
Technical Parameters
- Model: SZB (Salwico Zone Board)
- Part Number: 462006
- Revision: R2A
- System Compatibility: Salwico CS4000 Fire Alarm System
- Function: Addressable loop interface and zone signal processing
- Origin: Sweden (Consilium Marine & Safety)
Application Areas
- Marine & Offshore: Fire detection and alarm management for cruise ships, tankers, and offshore platforms.
- Commercial Infrastructure: Large-scale building fire suppression systems requiring addressable loop monitoring.
Product Usage Instructions
- Safety First: Before accessing the CS4000 control panel, ensure you have followed all safety protocols for fire protection systems. Notify the bridge or safety department if you are working on a live system to avoid false alarms.
- Handling: The board is sensitive to electrostatic discharge (ESD). Always use an anti-static wrist strap connected to the cabinet’s ground bus when handling or installing the card.
- Installation: Power down the CS4000 controller. Align the board with the backplane connectors within the CS4000 card rack. Push gently but firmly until the edge connector is fully seated and secure the board using the front-locking levers.
- Configuration: The CS4000 system will automatically detect the new board upon reboot. Use the central management software (or the cabinet interface) to verify that the board’s addresses are correctly assigned and that there are no “Loop Fault” or “Ground Fault” messages.
Product Description
The 462006 Zone Board is designed for high-reliability fire safety. It continuously polls the devices on its assigned addressable loop to check for fire, fault, or maintenance conditions. Its design features built-in loop short-circuit protection and surge suppression to ensure that a fault in one specific zone does not compromise the integrity of the entire fire alarm network.
Protection & Environmental Parameters
- Physical Protection: Designed for integration within the robust CS4000 central control cabinet.
- Environment: Protected against moisture and salt-air oxidation via a professional-grade conformal coating.
- Operating Temperature: -10°C to +55°C.
- Humidity: 5% to 95% relative humidity, non-condensing.
Frequently Asked Questions
- What does a “SZB Fault” mean on the panel? It indicates the central system has lost communication with this specific board, or that the board itself is detecting an internal hardware error. Check the status LEDs on the front of the 462006 card; if they are not blinking, the board may not be receiving power.
- Is this board revision-dependent? Yes. The “R2A” revision is specific. While newer revisions may be backwards compatible, always check the technical manual for your specific CS4000 software version before upgrading to a different revision.
- Can I swap a zone board while the system is under fire watch? This is highly discouraged. Always use a backup system or follow the vessel’s approved Fire Safety Management procedures when disabling a zone board.
- Is the 462006 field-repairable? No. Due to the stringent certification requirements for fire safety equipment (e.g., MED/SOLAS), field repairs are not allowed. The card must be replaced with a certified spare.
