The SAM Electronics BRM 2200 Binary Relay Module is a marine automation component designed for the SAM Electronics / Lyngsø Marine 2200-series control system. It provides 16 relay output channels with changeover contacts, allowing digital control signals from the automation system to operate or interface with external electrical equipment.
The module features individual relay-status indicators, selectable coil-voltage settings for two groups of eight relays, and digital-bus connections for integration with compatible system components. It is designed for DIN-rail mounting inside marine automation and control cabinets.
The BRM 2200 is suitable for maintenance, repair, and replacement applications in compatible shipboard machinery control, alarm, and monitoring systems.

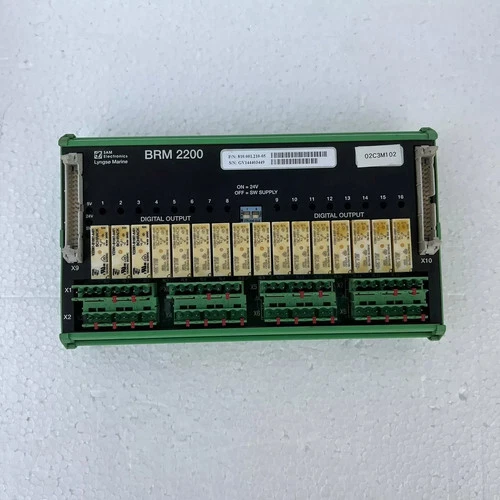

SAM Electronics BRM 2200
Key Features
- 16 relay output channels with changeover contacts
- Individual LED indicators for relay channels
- Selectable relay-coil supply for two groups of eight channels
- Digital-bus input for connection to the automation system
- Extension connector for additional compatible modules
- DIN-rail mounting for control-cabinet installation
- Electrical isolation between relay contact sets and control circuitry
- Designed for SAM Electronics / Lyngsø Marine 2200-series systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | SAM Electronics / Lyngsø Marine |
| Model | BRM 2200 |
| Series | 2200 Marine Automation System |
| Product Name | Binary Relay Module |
| Part Number | 810.001.210; verify suffix and hardware revision |
| Place of Manufacture / Origin | Not verified |
| Product Status | Confirm actual item condition with seller |
| Relay Channels | 16 |
| Relay Contact Type | Changeover contacts |
| Contact Rating | 250 V AC, 6 A; 32 V DC, 6 A, subject to specified operating conditions |
| Relay Coil Supply | Selectable 24 V or switched supply in two groups of eight |
| Power Consumption | 5 V: 25 mA; 24 V: approximately 250 mA, depending on configuration |
| Communication | Digital-bus input and module-extension connection |
| Dimensions | Approximately 125.5 × 216 × 62 mm, including height above DIN rail |
| Weight | Approximately 640 g |
| Mounting | Standard DIN rail |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -25°C to 70°C |
| Country of Origin | Not verified |
| Discontinued | Not verified |
Typical Applications
- Marine engine-control systems
- Shipboard alarm and monitoring systems
- Engine-room machinery automation
- Digital control of pumps, valves, contactors, and auxiliary equipment
- Machinery status and alarm output circuits
- Marine automation cabinets using the SAM Electronics 2200 platform
- Replacement of an existing BRM 2200 module
Frequently Asked Questions
Q1: What is the main function of the BRM 2200?
It provides 16 relay outputs for interfacing digital control signals from a compatible marine automation system with external equipment.
Q2: How many relay channels does it have?
The BRM 2200 has 16 relays, each with changeover contacts and an individual status indicator.
Q3: What is the relay contact rating?
Published technical documentation specifies 250 V AC at 6 A and 32 V DC at 6 A under the stated operating conditions. Confirm the applicable load type and ratings before wiring.
Q4: Can multiple BRM 2200 modules be connected together?
The technical documentation describes connection through a compatible IFM 2200 interface module, supporting up to eight modules from the relevant family in a supported configuration.
Q5: Is the BRM 2200 compatible with every SAM Electronics system?
No. Compatibility depends on the installed system architecture, interface module, wiring, hardware revision, and configuration. Confirm these details before ordering.
Q6: What should be checked before installation?
Verify the complete part number, relay-coil supply selection, terminal wiring, bus connections, contact ratings, and the requirements of the connected equipment.
Related SAM Electronics / Lyngsø Marine Equipment
The following components belong to related marine automation product families. They are suggested for sourcing research and are not guaranteed direct replacements for the BRM 2200.
- IFM 2200 — Interface Module
- BIM 2200 — Binary Input Module
- MCS 2200 — Monitoring and Control System
- FPD 2200 — Field Processing Device
- CPM 2200 — Central Processing Module
- SOD 2200 — System Operating Display
- PSU 2200 — Process Substation / Power Supply Equipment
- BRM 2200 — Binary Relay Module
- SAM Electronics 2200-Series I/O Modules
- SAM Electronics Digital Input Modules
- SAM Electronics Digital Output Modules
- SAM Electronics Interface Modules
- SAM Electronics Alarm Monitoring Components
- Lyngsø Marine Engine Control Components
- SAM Electronics Marine Automation Spare Parts
Ordering Information
When ordering, provide the model name BRM 2200 and the complete part number from the installed unit. The published documentation identifies the module as type 810.001.210, while commercial listings also show the suffix-specific part number 810.001.210-05. Confirm the exact revision and connector arrangement with the seller.
For replacement installations, verify system compatibility, relay-contact requirements, coil-supply settings, and the condition of the module before commissioning.
