Description
Product Overview
The SAM Electronics BXM 2200 is a marine automation I/O module designed for the SAM Electronics / Lyngsø Marine 2200-series monitoring and control system. It combines 16 isolated binary input channels with 8 relay output channels in a single DIN-rail-mounted module.
The module receives digital status signals from connected sensors and equipment while providing relay outputs for control and switching applications. Its modular design supports integration with a compatible IFM 2200 interface module through a digital bus connection, making it suitable for shipboard machinery automation, alarm monitoring, and control-system maintenance.
The BXM 2200 is intended for replacement and maintenance applications where the installed system requires the same module type and compatible hardware revision.

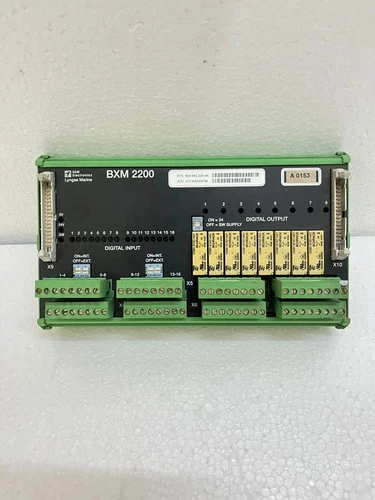

SAM Electronics BXM 2200
Key Features
- 16 binary input channels arranged in four isolated groups
- 8 relay output channels with changeover contacts
- Individual LED indicators for input and output channel status
- Selectable internal or external sensor-voltage sourcing
- Selectable relay-coil supply for compatible configurations
- Digital bus input and module-extension connection
- DIN-rail mounting for marine control cabinets
- Designed for compatible SAM Electronics / Lyngsø Marine 2200-series systems
Technical Specifications
| Specification | Details |
|---|---|
| Brand | SAM Electronics / Lyngsø Marine |
| Model | BXM 2200 |
| Series | 2200 Marine Automation System |
| Product Name | Binary Input and Relay Output Module |
| Type Number | 810.001.220 |
| Order Number | 815.000 035; verify the item’s complete part number and revision |
| Place of Manufacture / Origin | Not independently verified |
| Product Status | Confirm actual condition with seller |
| Binary Inputs | 16 channels, arranged in 4 isolated groups |
| Relay Outputs | 8 channels with changeover contacts |
| Binary Input Signal | LOW: 0–4 V; HIGH: 12–32 V |
| Sensor Supply | 24 V DC, maximum 10 mA per input channel |
| Relay Contact Rating | 32 V DC, 6 A; 250 V AC, 6 A at unity power factor; 250 V AC, 1 A at 0.4 power factor |
| Maximum Switching Capacity | 1500 VA, subject to specified contact ratings |
| Power Consumption | 5 V DC: 25 mA; 24 V DC: 160 mA plus sensor load; switched 24 V supply: approximately 130 mA for relay coils |
| Communication | Digital bus with module-extension connection |
| Connectors | Terminal connectors for field wiring and ribbon-cable connections for the system bus |
| Dimensions | Approximately 125.4 × 216 × 62 mm, including height above DIN rail |
| Weight | Approximately 525 g |
| Mounting | Standard DIN rail |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -25°C to 70°C |
| Country of Origin | Not independently verified |
| Discontinued | Not verified |
Typical Applications
- Shipboard machinery monitoring and control
- Marine alarm and status monitoring systems
- Digital sensor and equipment-status acquisition
- Relay-based switching and control circuits
- Engine-room automation cabinets
- Interface between field signals and a compatible marine control system
- Maintenance and replacement of existing BXM 2200 modules
Frequently Asked Questions
Q1: What is the main function of the BXM 2200?
The module combines digital input monitoring and relay output control in one unit. It receives binary status signals and provides relay contacts for compatible external control circuits.
Q2: How many I/O channels are available?
The BXM 2200 provides 16 binary inputs and 8 relay outputs.
Q3: What is the relay contact rating?
The documented ratings include 32 V DC at 6 A and 250 V AC at 6 A for a unity power factor load. For a 250 V AC load at a 0.4 power factor, the specified rating is 1 A. Verify the load type and applicable limits before connecting equipment.
Q4: Can the BXM 2200 operate with other 2200-series modules?
Yes, it is designed for use with a compatible IFM 2200 interface module. The documented architecture supports up to eight modules from the applicable family in a supported configuration.
Q5: Is it interchangeable with the BRM 2200?
No, they should not be treated as direct equivalents. The BXM 2200 combines 16 binary inputs with 8 relay outputs, whereas the BRM 2200 provides 16 relay outputs. Confirm the required I/O configuration before ordering.
Q6: What should be checked before replacement?
Verify the complete part number, hardware revision, connector layout, input-group isolation, sensor-supply settings, relay-coil selection, and system compatibility. Disconnect system power before installing or removing interconnection cables.
Related SAM Electronics / Lyngsø Marine Equipment
The following products and equipment families may be relevant when sourcing compatible marine automation spares. They are not guaranteed direct replacements for the BXM 2200.
- BIM 2200 — Binary Input Module
- BRM 2200 — Binary Relay Module
- BSM 2200 — Binary Input and Solid-State Output Module
- IFM 2200 — Interface Module
- AOM 2200 — Analog Output Module
- PFM 2200 — Pulse Frequency Module
- SAM Electronics 2200-Series I/O Modules — Distributed signal-processing components
- SAM Electronics Digital Input Modules — Binary status monitoring
- SAM Electronics Relay Output Modules — Relay-based control interfaces
- SAM Electronics Solid-State Output Modules — Electronic switching interfaces
- SAM Electronics Interface Modules — System bus and module communication
- SAM Electronics Power Supply Modules — Control-system power distribution
- SAM Electronics Alarm Monitoring Components — Marine alarm and event monitoring
- Lyngsø Marine Engine Control Equipment — Machinery control and monitoring
- SAM Electronics Marine Automation Spares — Replacement modules and system components
Ordering Information
When requesting a quotation, provide the model BXM 2200, the complete part number shown on the module label, and clear photographs of the connectors and revision markings. Confirm the item’s condition, testing status, and compatibility with the installed IFM 2200 system before purchase.
