Description
🌟 Product Overview

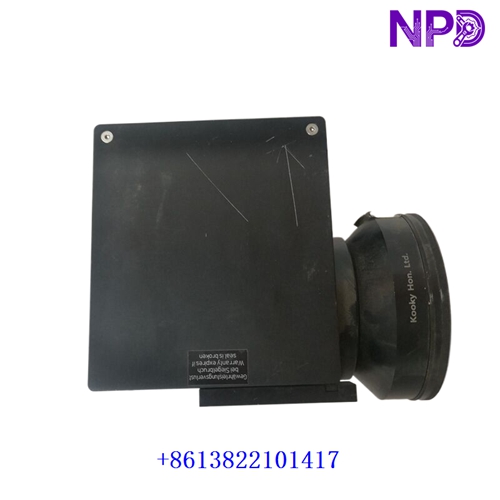

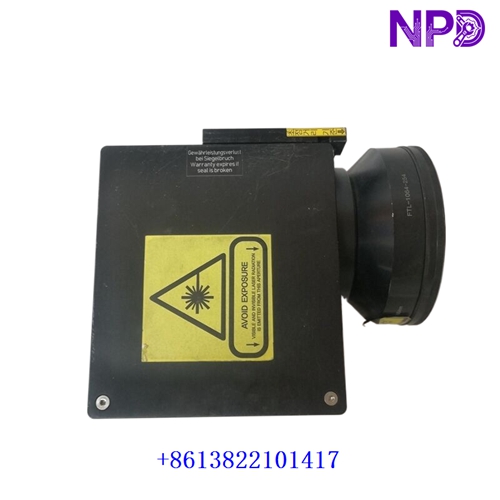

The SCANLAB SCANcube INTELLISCAN 14-1064nm is an advanced, high-precision digital galvanometer scanner engineered specifically for industrial laser material processing applications. Operating at the 1064nm infrared wavelength (commonly used for Nd:YAG, fiber, and disc lasers), it provides exceptional dynamic performance, high positioning accuracy, and superior thermal stability. It is widely utilized in precision laser marking, cutting, micro-machining, and additive manufacturing environments where speed and fine beam positioning are critical.
📊 Product Datasheet
| Parameter | Value |
| Brand | SCANLAB |
| Model | SCANcube INTELLISCAN 14-1064nm |
| Series | SCANcube / intelliSCAN Series |
| Product Name | Digital Laser Galvo Scanning System |
| Origin | Germany |
| Product Status | Active / Industrial Automation Spare Part |
| Dimensions | Approx. 140 mm \times 110 mm \times 90 mm (Compact Housing) |
| Weight | 2.2 kg |
| Country of Origin | Germany (DE) |
| Power Rating | \pm15V DC to \pm24V DC, 3A Max |
🛠️ Operation Standards and Usage Methods
🔸 Mechanical Mounting: Mount the scanning head securely onto a rigid, vibration-free optical bench or machine frame using the designated mounting points. Ensure proper alignment with the incoming laser beam axis to prevent clipping or internal optical damage.
🔸 Electrical and Signal Connections: Connect the power supply and control interface cables (supporting standard protocols such as SL2-100 or XY2-100) securely. Ensure all shields are properly grounded to prevent electromagnetic interference (EMI) from high-power laser sources.
🔸 Cooling and Startup: For high-power or continuous operation, ensure that liquid cooling (if equipped) or ambient thermal dissipation paths are active. Power on the controller and galvanometer electronics before opening the laser shutter.
🚨 Emergency Shutdown Procedures
🔺 Laser Interlock Activation: In the event of an emergency or optical misalignment, immediately trigger the laser source interlock or safety shutter to instantly cut off the high-power laser beam.
🔺 Power Disconnection: Switch off the DC power supply feeding the scanner control electronics to halt mirror movement and prevent electrical faults.
🔺 Post-Incident Inspection: Allow the system to cool down and inspect the protective window, optical mirrors, and housing for any thermal damage, contamination, or debris before resuming laser operations.
🔍 Troubleshooting and Common Issues
⚠️ Issue 1: Galvo Mirror Drift or Position Inaccuracy
Troubleshooting Method: Verify that the control signal cables (XY2-100/SL2-100) are securely plugged in and shielded. Check if the internal temperature sensor indicates overheating due to insufficient cooling or excessive laser power absorption.
⚠️ Issue 2: Complete Loss of Scan Movement
Troubleshooting Method: Measure the DC input voltage rails using a multimeter to confirm that stable power (\pm15V/\pm24V) is reaching the internal servo driver boards. Check for active error flags from the controller card.
⚙️ Routine Maintenance and Care
🔹 Optical Surface Cleaning: Regularly inspect the protective input/output window for dust, debris, or laser residue. Clean optical surfaces strictly using certified optical cleaning solvents and lint-free wipes to prevent permanent coating damage.
🔹 Thermal Management Checks: Periodically check cooling fluid flow rates, hoses, and heat sinks to ensure optimal thermal dissipation during high-duty-cycle laser processing.
🔹 Cabling and Connection Audits: Conduct routine monthly checks of all signal and power cables to ensure connectors remain tightly locked and free from mechanical strain or wear.
💡 Frequently Asked Questions Q&A
❓ Q1: What wavelength is the INTELLISCAN 14-1064nm optimized for?
💬 A1: It is specifically optimized with high-reflectivity dielectric mirror coatings for the 1064nm infrared spectrum, making it ideal for fiber and Nd:YAG lasers.
❓ Q2: Can the mirrors or optical coatings be replaced in the field?
💬 A2: No. Due to the extreme precision, complex dynamic tuning, and cleanroom alignment required, optical mirror replacements and recalibrations must be performed by SCANLAB factory service technicians.
❓ Q3: What control protocol does this scanner utilize?
💬 A3: It communicates via standard high-speed digital scanner interfaces such as SL2-100 or XY2-100 protocol, allowing seamless connection with industrial laser controllers.
