Description

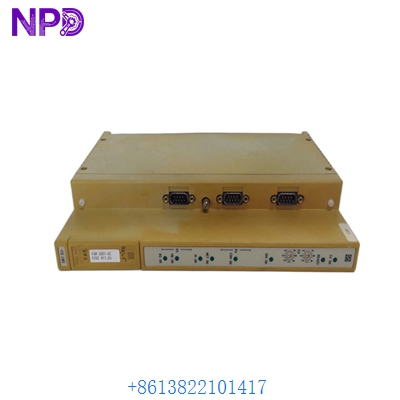

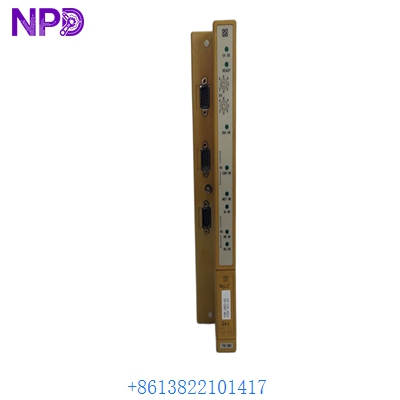

The SCHENCK FSEL003 (Part Number F202174.02) is a specialized electronic evaluation module designed for precise speed monitoring and pulse processing within Schenck Process weighing and feeding systems. It ensures accurate rotational speed measurement for belt scales and solids flow meters.
Technical Parameters
- Model Number: FSEL003
- Part ID: F202174.02
- Input Signal: Pulse-based speed sensor (NAMUR or Open Collector)
- Output Signal: Isolated analog and digital pulse outputs
- Supply Voltage: 24V DC (Standard)
- Frequency Range: 0.1 Hz to 10 kHz
Product Specifications
- Mounting: Snap-on DIN rail mounting
- Enclosure: Compact industrial-grade plastic housing
- Terminal Type: Screw-type pluggable connectors
- Operating Temp: -10°C to +60°C
- Protection: IP20 rated for cabinet installation
Application Fields
- Industrial Belt Weigher Speed Tracking
- Loss-in-Weight Feeder Control Systems
- Bulk Material Handling Conveyors
- Cement and Mining Production Lines
Product Q&A
- Q: What is the primary role of the FSEL003 in a weighing system?
- A: It converts raw pulses from a speed sensor into a stable signal used by the integrator to calculate mass flow.
- Q: Is the FSEL003 compatible with older Schenck INTECONT units?
- A: Yes, it is a standard interface module often used to bridge field sensors with INTECONT and DISOCONT controllers.
- Q: Does this module require manual calibration?
- A: Initial frequency scaling is typically handled via the connected controller, though the module features onboard diagnostic LEDs.
